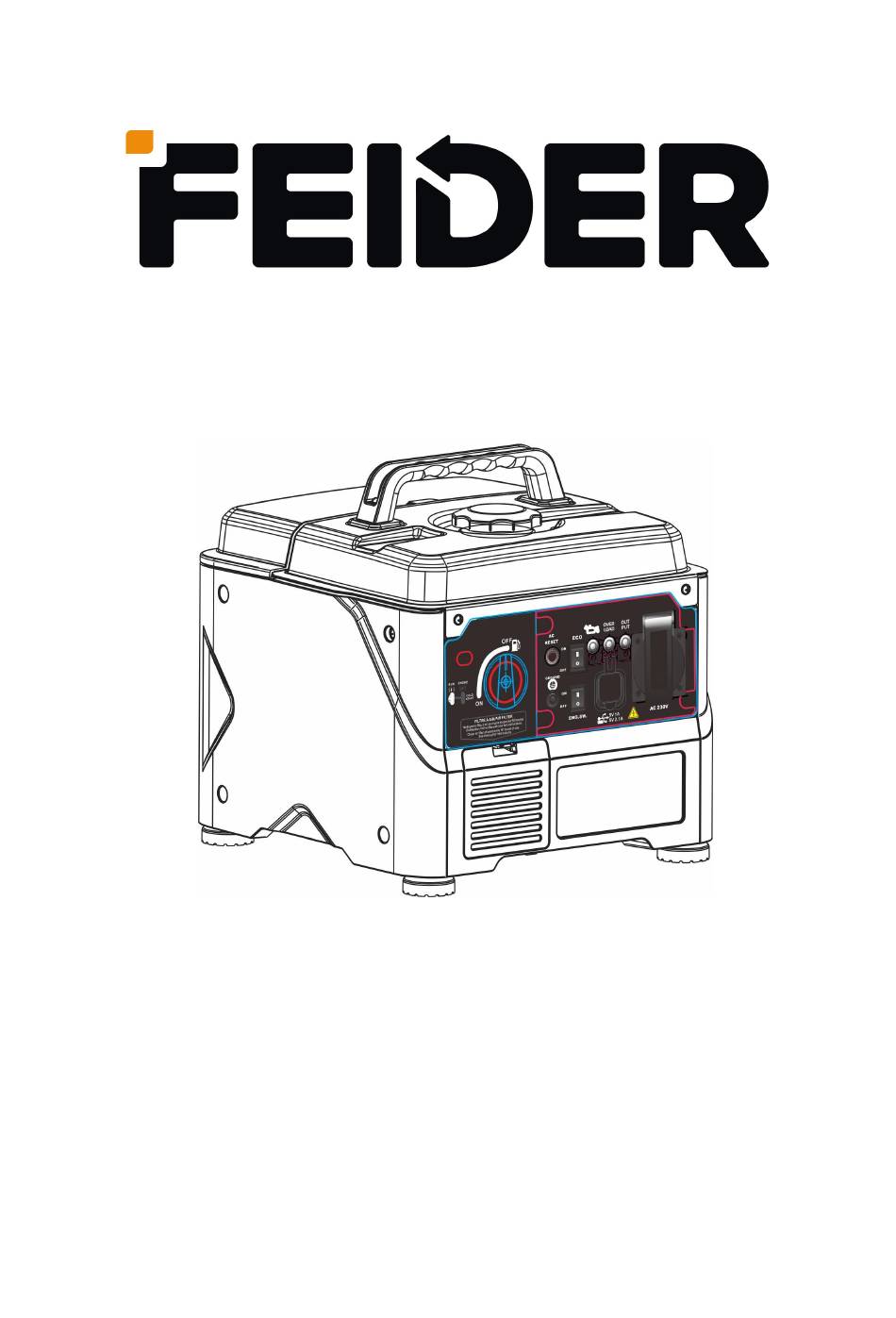

- Page 1 ORIGINAL INSTRUCTIONS >EN GASOLINE INVERTER GENERATOR FG1200i USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. SAFETY LABEL POSITION......................... 7 3. PARTS IDENTIFICATION........................8 4. CONTROL FUNCTION.......................... 9 5. PREPARATION............................ 11 6. OPERATION............................12 7. MAINTENANCE............................16 8. STORAGE..............................19 9. TROUBLESHOOTING.........................20 10. SPECIFICATIONS..........................20 11. CIRCUIT DIAGRAM...........................21 12. DECLARATION OF CONFORMITY....................22 13. WARRANTY............................23 14. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 4 tightening them if necessary. Clean the components of the air filter periodically, and replace the air filter when necessary. Remove any electrical equipment that is plugged in before starting or stopping the generator. Before transporting the generator, you must empty the fuel tank. ...
- Page 5 If you swallow fuel by mistake, if you inhale fuel vapours or if you get drops of fuel in your eyes, see a doctor immediately. If a certain quantity of fuel is spilt on your skin or clothing, wash or change your clothes.
- Page 6 Drain fuel from the fuel tank Empty carburetor fuel Symbol explanation Attention! Please read the manual carefully before using the unit! Wear hearing protection. Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish . Add engine oil.
-
Page 7: Safety Label Position
2. SAFETY LABEL POSITION These decals indicate serious accident that you may cause. Please read the decals, safety precautions and precautions mentioned in this manual carefully. -
Page 8: Parts Identification
3. PARTS IDENTIFICATION ① Carrying handle ② Fuel tank cap ③ Control panel ④ Recoil starter ⑤ Oil filler cap ⑥ Louver ⑦ Muffler... -
Page 9: Control Function
Control Panel ① Oil warning light ② Overload indicator light ③ AC pilot light ④ AC receptacle ⑤ Engine switch ⑥ Fuel switch knob ⑦ Throttle switch 4. CONTROL FUNCTION Fuel switch knob “OFF": Fuel is switched off. The engine will not run “ON”: Fuel is switched on. - Page 10 When the oil level falls below the lower level, the oil warning light ①comes on and then the engine stops automatically. Unless you refill with oil, the engine will not start again. Tip: If the engine stalls or does not start, turn the engine switch to“ON”and then pull the recoil starter.
-
Page 11: Preparation
Fuel tank cap Remove the fuel tank cap by turning it counterclockwise. Ground (earth) terminal Ground (Earth) terminal ① connects the earth line for prevention of electric shock. When the electric device is earthed, always the generator must be earthed. 5. -
Page 12: Operation
4. Fill the specified amount of the recommended engine oil, and then install and tighten the oil filler cap. 5. Install the cover and tighten the screws. Recommended engine oil:SAE 15W-40 Recommended engine oil grade: API Service SE type or higher Engine oil quantity: 0.28L PRE-OPERATION CHECK WARNING! - Page 13 NOTICE: The generator has been shipped without engine oil. Do not start the engine till fill with the sufficient engine oil. Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine.
- Page 14 5.After the engine starts, warm up the engine until the engine does not stop when push the choke in to “OFF”. Stopping the engine TIP:Turn off any electric devices. 1. Disconnect any electric devices. 2. Turn the engine switch to“OFF” 3.
- Page 15 Application range When using the generator, make sure the total load is within rated output of a generator. Otherwise, generator damage may occur. Power factor 0.8-0.95 0.4-0.75 (Efficiency 0.85) ≤1000W ≤800w ≤340W TIP: Application wattage indicates when each device is used by itself. ...
-
Page 16: Maintenance
7. MAINTENANCE The engine must be properly maintained to ensure its operation be safe, economy and trouble-free, as well as eco-friendly. In order to keep your gasoline engine in good working condition, it must be periodically serviced. The following maintenance schedule and routine inspection procedures must be carefully followed: Thereafter, Every year First 1 month... - Page 17 1. Remove the cap ① and the spark plug cap ②, and Insert the tool ③ through the hole from the outside of the cover. 2. Insert the handlebar ④ into the tool ③ and turn it counterclockwise to remove the spark plug. 3.
- Page 18 6. Add engine oil to the upper level. Recommended engine oil:SAE 10W-40 Recommended engine oil grade: API Service SE type or higher Engine oil quantity:0.28L 7. Wipe the cover clean, and wipe up any spilled oil. NOTICE: Be sure no foreign material enters the crankcase. 8.
-
Page 19: Storage
2. Hold and move up the clamp , then take off the hose from the tank. 3. Take out the fuel filter. 4. Clean the filter with gasoline. 5. Dry the filter and put it bank into tank. 6. Install the hose and clamp, then open the fuel valve to check whether it is leak. 7. -
Page 20: Troubleshooting
Faulty ignition system ... consult our company authorized dealer. Generator won't produce power The AC pilot light (Green) go off ..Stop the engine, then restart. 10. SPECIFICATIONS Model No. FG1200i Type Silent inverter Rated frequency 50Hz Rated voltage... -
Page 21: Circuit Diagram
Guaranteed sound power level: 95dB(A) Emission sound pressure level: 73dB(A) Uncertaincy K: 1.95dB(A) Emission sound power level: 93dB(A) Uncertaincy K: 1.95dB(A) 11. CIRCUIT DIAGRAM... -
Page 22: Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: GASOLINE INVERTER GENERATOR Model: FG1200i Serial number: 20240319380-20240319629 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it:... -
Page 23: Warranty
1 3 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 24: Product Failure
1 4 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 25: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 26 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
