Summary of Contents for Dominator RDO-1V4 EXCEL

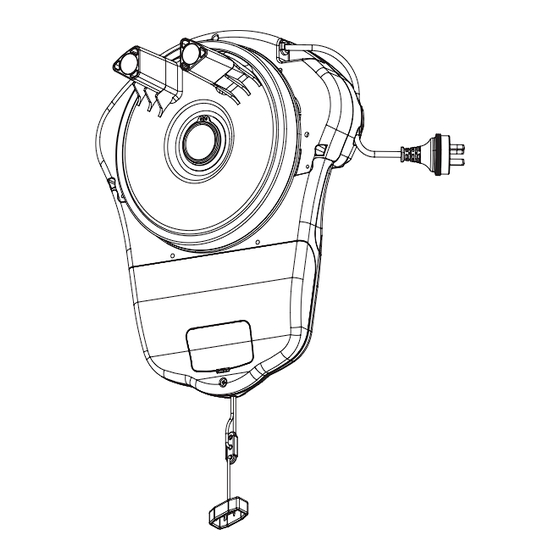

- Page 1 Dominator RDO-1V4 EXCEL Instruction Manual RDO-1V4 EXCEL Rolling Door Opener Instruction Manual Doc #: 161047_00 Part #: 86104 Released: 05/04/18...
-
Page 2: Table Of Contents
Dominator RDO-1V4 EXCEL Instruction Manual Table of Contents Installation Instructions 1. Installation Safety Warnings! 13. Auto-Close 2. Kit Contents Safety Beams Auto Close Option 3. Tools Required 14. Coding a Transmitter 4. Setup Requirements Storing the Transmitter Code The Opener:... -
Page 3: Installation Safety Warnings
Dominator RDO-1V4 EXCEL Instruction Manual 1. Installation Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 4: Kit Contents
Dominator RDO-1V4 EXCEL Instruction Manual 2. Kit Contents Accessory Pack Fastner Bag 1. 1 x RDO-1V4 drive unit 11. 2 x Extension Fork 6. 2 x Nilock Nut 2. 2 x Locking Bar Covers 12. 2 x Flat Washer 107D 6.4 x 20.5 x 1.6 3. -
Page 5: Setup Requirements
Dominator RDO-1V4 EXCEL Instruction Manual 4. Setup Requirements The Opener: a. MUST BE installed in a dry position, protected from weather. (Moisture or corrosion not covered by Warranty) b. Is factory set for RIGHT HAND SIDE installation (from inside garage), but capable of LEFT HAND SIDE installation. -
Page 6: Door Preparation
Dominator RDO-1V4 EXCEL Instruction Manual 5. Door Preparation Prepare the Door: a. Clean the guides if there is any oil or wax present using a suitable white spirit. The only lubricant suitable for use on door guides is silicon spray. DO NOT use WD-40, RP-7, petroleum grease, or similar. -
Page 7: Pinning The Door
Dominator RDO-1V4 EXCEL Instruction Manual 7. Pinning the Door Pinning the Door to the drum: Pinning the door’s curtain to its drum maintains security when the Screw into opener is closed. If the curtain is not pinned the door can be partially the low part opened manually. -
Page 8: Mounting The Opener
Dominator RDO-1V4 EXCEL Instruction Manual 9. Mounting the Opener Raising the Door: a. When in position, remove the U-bolt (or bolts) and saddle from the door bracket. b. Lift the door up and away from the wall until clear of the door bracket, before lowering the door to rest on the door stand or prop. -
Page 9: Setting The Travel Limits
Dominator RDO-1V4 EXCEL Instruction Manual 10. Setting the Travel Limits Initial Preparation: a. Move the door to the half way position. b. Remove the clear button cover from the unit. c. Engage the opener by pulling down on the manual release string until a click sounds. -
Page 10: Safety Testing
Dominator RDO-1V4 EXCEL Instruction Manual 11. Safety Testing Test the Close Cycle CAUTION: Take care when completing a a. Press the OPERATE button to open the door. safety test. Failure to follow this warning b. If the door closes, press the OPERATE button to stop the door, can result in serious personal injury then press OPERATE again to open. -
Page 11: Accessories
Dominator RDO-1V4 EXCEL Instruction Manual 12. Accessories Auxiliary Output The auxiliary output can be used to control alarm or another garage door opener. A valid transmission from the pre- External device, coded transmitter will cause the auxiliary output to pulse for Alarm, Door or approximately 1 (one) second. -
Page 12: Coding A Transmitter
Dominator RDO-1V4 EXCEL Instruction Manual 14. Coding a Transmitter Storing the Transmitter Code The opener can only operated from remote control transmitters that have been programmed into its memory. Up to 64 codes can be stored in the memory. a. Press the CODE SET button and release. The CODE SET LED will illuminate to indicate the opener is in Code Learn mode. -
Page 13: Setting The Transmitter To Operate Pet Mode
Dominator RDO-1V4 EXCEL Instruction Manual 14. Coding a Transmitter Setting the Transmitter to Operate PET (Pedestrian) Mode The PET mode position (see Programming the Opener) must set prior to coding a transmitter. a. Press the CODE SET button five (5) times - the CODE SET LED will illuminate and the courtesy light will flash quicky (twice per second). -
Page 14: Home Owner Safety Warnings
Dominator to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of a Dominator Garage Door Opener. Dominator hereby further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the Dominator Garage Door Opener in accordance with the installation instructions. -
Page 15: Opener Safety & Security
Dominator RDO-1V4 EXCEL Instruction Manual 16. Opener Safety & Security Your Door CAN NOT be used by the opener when: WARNING! When operating the manual a. There is a locking device installed. release (while the door is open) the b. There is a power failure. -
Page 16: User Operating Controls
Dominator RDO-1V4 EXCEL Instruction Manual 18. User Operating Controls Button (Fig 5.1) Function 1. OPERATE Opens/stops/closes the door. 2. CODE SET LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. CLOSE LIMIT LED (Red) Illuminates and flashes as the door closes, and remains on when the close limit position has been reached. -
Page 17: Specifications
Dominator RDO-1V4 EXCEL Instruction Manual 20. Specifications Technical Specifications RDO-1V4 Power supply 230V - 240Va.c. 50Hz Maximum door opening Door Height: 3.25 turns of the drum wheel (approx. 3000mm) Maximum Door Weight: 110kg 16.5m 2 Door Area: Door must be well balanced and able to be... -
Page 18: Troubleshooting
Dominator RDO-1V4 EXCEL Instruction Manual 21. Troubleshooting Symptom Possible cause Remedy The opener does The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) not work from the into the power point and check that it is OK... - Page 19 Dominator RDO-1V4 EXCEL Instruction Manual 21 Troubleshooting Symptom Possible cause Remedy The SERVICE LED has A Fault has been detected. The fault Record opener function (How many beeps?) started to flash and will be active each time an attempt then press the LIMIT SET button once to reset is beeping numerous is made to operate the door.
-
Page 20: Maintenance
Dominator RDO-1V4 EXCEL Instruction Manual 22. Maintenance Door Maintenance WARNING! Failure to maintain your A poorly maintained door could cause fatal / serious injuries or garage door may void the warranty on damage to property. your garage door opener. • Frequently examine the door, particularly the cables, springs and mountings for signs of wear, damage or imbalance. -
Page 21: Service Schedule
Dominator RDO-1V4 EXCEL Instruction Manual 25. Service Schedule Year / Date Details Approx. Cycles 1 / 3,000 2 / 6,000 3 / 9,000 4 / 12,000 5 / 15,000 Dominator 0800 366 462 dominator.co.nz... -
Page 22: Warranty
• This Warranty is to be read in conjunction with the owner’s copy of the installation instruction manual. • In this warranty, ‘Dominator Representative’ means an entity authorized by Dominator to service Dominator products. Please check the Dominator website for details. -
Page 23: Optional Accessories
Dominator RDO-1V4 EXCEL Instruction Manual 27. Optional Accessories There are a range of additional accessories for your added convenience and security. Contact your Dealer for installation of these accessory items. • Safety Beams - Provides additional protection if the door is closing onto your property or person. - Page 24 Dominator RDO-1V4 EXCEL Instruction Manual Is your door sticking and hard to operate? It may be time for a service (for more details see section 22) For a service, contact your dealer using the details below... Dealer: © copyright 2018...
