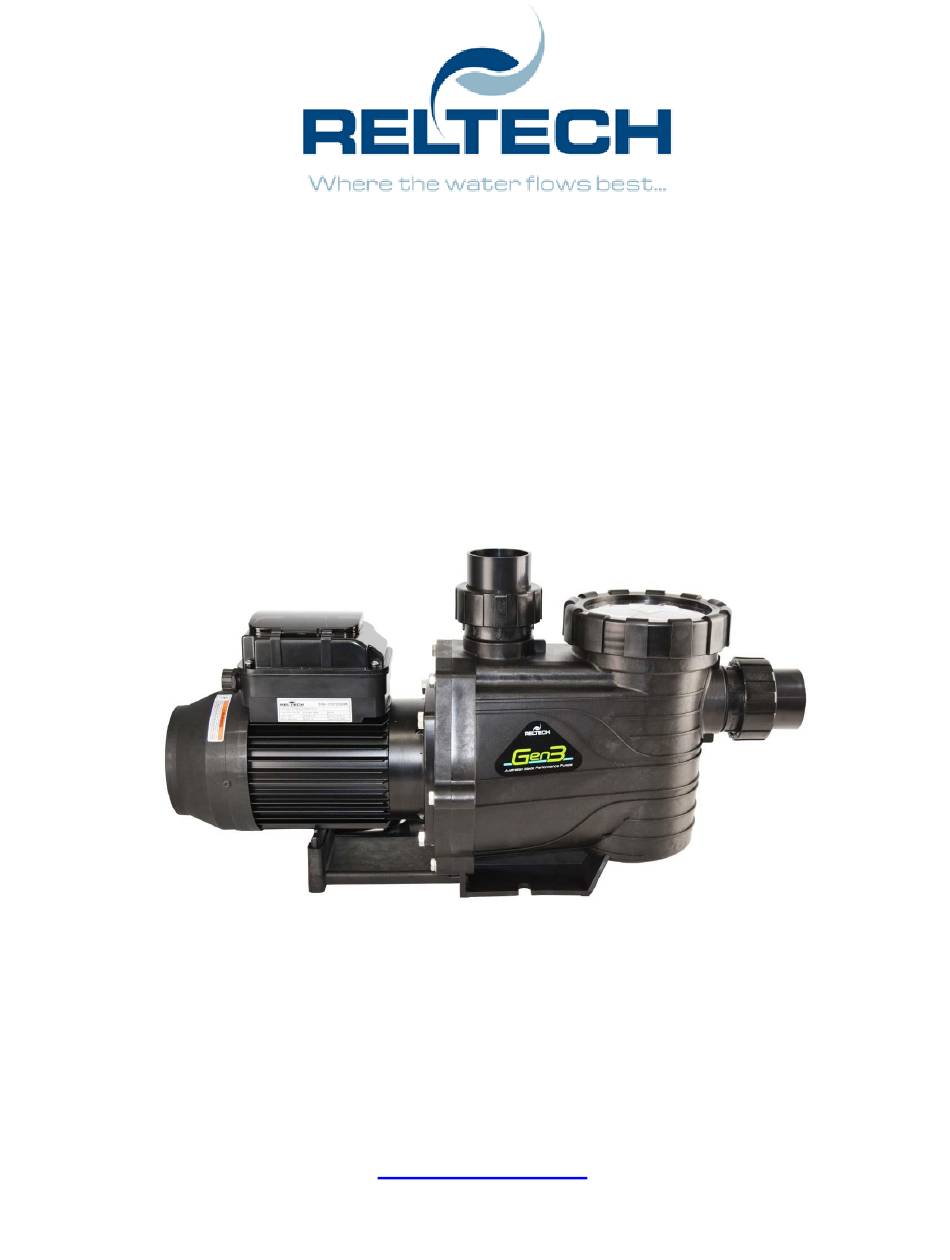

- Page 1 ECOFLO GEN3-V3, GEN3-V5, GEN3-V3PLUS, GEN3-V5PLUS, GEN3-V8PLUS VARIABLE 3 SPEED POOL & SPA PUMP INSTALLATION AND OPERATION MANUAL Reltech Australia Pty Ltd 43-45 Kylta Rd West Heidelberg Vic 3081 Ph: (03) 9459 3838 Em: office@reltech.com.au www.reltech.com.au Page 1 of 14...
- Page 2 ➢ The fittings on this product are constructed of ABS. Some PVC jointing compounds are incompatible with ABS. Check compound suitability before use. ➢ RELTECH recommends that all installations are fitted with earth leakage or residual current protection devices. ➢...
- Page 3 RELTECH’S advanced pump technology provides reliable and efficient performance that lasts. RELTECH pool and spa pump are designed with high flow and the head pressures are ideally suited for the modern pool or spa with extensive equipment.
-
Page 4: Weather Protection
Power Connection RELTECH pool and spa pumps are suitable for connection to a nominal 240-volt 50Hz power supply. The motor is equipped with a flex and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe, dry place may need to be provided by an electrician. -
Page 5: Pipe Connection
Power Rating Table *RPM 1600 2400 2850 1450 2400 2850 1300 2400 2850 Qmax (L/min) AMPS (A) 1.49 4.55 5.96 8.95 0.94 HEAD (m) 3.24 WATTS (W) 1000 1330 1030 1700 230- 230- 230- 230- 230- 230- 230- 230- 230- VOLTS (V) 240V 240V... -
Page 6: Operation
OPERATION Starting the Pump To operate efficiently and to prevent damage to the pump there must be a free flow of water to and from the pump. Before starting ensure that: • All pipe work is correctly sealed. • Barrel unions on the inlet and outlet are hand tightened and the pipework is installed square to the pump. - Page 7 Factory Setting Speeds / Star Ratings GEN3-V3 & GEN3-V3PLUS @ 6 Star Low @ 1600 Medium @ 2400 High @ 2850 GEN3-V5 & GEN3-V5PLUS @ 6 Star Low @ 1450 Medium @ 2400 High @ 2850 GEN3-V8PLUS @ 6 Star Low @ 1350 Medium @ 2400 High @ 2850...
- Page 8 GEN-V3 / V5 / V8PLUS VARIABLE 3 SPEED OPERATION The GEN3-V Series variable speed pump has 3 speed settings…. Eco (Energy Saving) • This should be used for everyday water filtration • The pump should be operated for approximately 8 hours per day depending on the surrounding climate, bather loads, pool volume and length of pipework.
- Page 9 WHEN USING WITH RELTECH / AQUATEK CONTROLLER WITH RS485 COMMUNICATION ▪ Press and hold OFF button for 10secs ▪ Screen will display P 3 -- Press SET ▪ Screen will display 2850 -- Press SET ▪ Screen will display -- Mod Off...
-
Page 10: Water Quality
RELTECH’S RECOMMENDATION • During day-to-day operation we recommend to run the GEN3-V SERIES on “eco” for 8-10 hours. This will achieve the lowest noise and lowest operating costs whilst maintaining filtration effectiveness. • In some cases (larger pools, warmer climates and increase bather loads you may have to increase the speed setting or operating duration. -
Page 11: Troubleshooting
➢ Barrel unions need to be hand tightened. No sealant, glues or silicones are required. ➢ When making any enquiries about your RELTECH pool and spa pump be certain to quote the model number from the nameplate located on motor. -
Page 12: Fault Codes
NOTES: (cont) ➢ Never run pump dry. Running the pump with no water may damage the mechanical seals, causing leakage and flooding. Dry running damage and associated damage is not covered under warranty. ➢ Failure to undertake regular maintenance may cause damage not covered by warranty. ➢... -
Page 13: Limited Warranty
7 days of the recognised fault. Reltech will at its option, repair or replace any defective parts. Component failure must be due solely to a defect in materials or workmanship. This warranty does not apply if failure is due to any abuse, misuse, improper installation or accident or to any of the following: •... - Page 14 PLEASE NOTE: ➢ This literature is not a complete guide to product usage. Further information is available from your RELTECH dealer, RELTECH Customer Service Centre and from the relevant product Installation and Operating Instructions. ➢ This data sheet must be read in conjunction with the relevant product Installation and Operating Instructions and all applicable statutory requirements.
