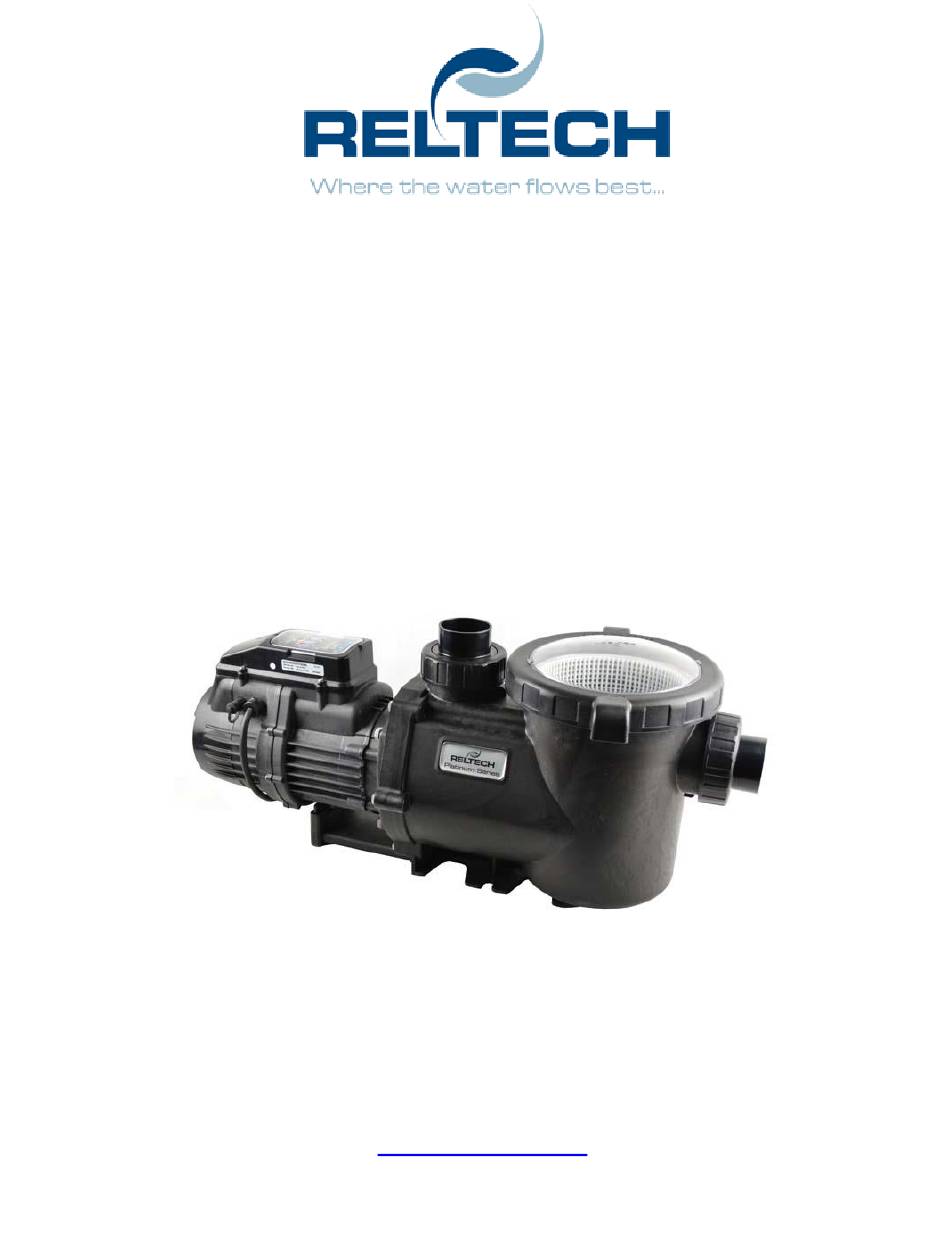

- Page 1 PLT-V3, V5 & V8 PLT-V3+, V5+ & V8+ EXTRA LARGE VARIABLE 3 SPEED POOL & SPA PUMP INSTALLATION AND OPERATION MANUAL Reltech Australia Pty Ltd 43-45 Kylta Rd West Heidelberg Vic 3081 Ph: (03) 9459 3838 Fax: (03) 9459 4038 www.reltech.com.au...
- Page 2 ➢ The fittings on this product are constructed of ABS. Some PVC jointing compounds are incompatible with ABS. Check compound suitability before use. ➢ RELTECH recommends that all installations are fitted with earth leakage or residual current protection devices. ➢...
- Page 3 RELTECH’S advanced pump technology provides reliable and efficient performance that lasts. RELTECH pool and spa pump are designed with high flow and the head pressures are ideally suited for the modern pool or spa with extensive equipment.
-
Page 4: Weather Protection
Power Connection RELTECH pool and spa pumps are suitable for connection to a nominal 240-volt 50Hz power supply. The motor is equipped with a flex and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe, dry place may need to be provided by an electrician. -
Page 5: Pipe Connection
In some cases, chlorinator manufacturers may be able to modify internal components so as to work in with the motor. If not, a suitable and updated chlorinator may be required. • Reltech’s Evochlor chlorinator completely disconnects power to the pump when the pump is in off mode. Page 5 of 16... -
Page 6: Operation
OPERATION Starting the Pump To operate efficiently and to prevent damage to the pump there must be a free flow of water to and from the pump. Before starting ensure that: • All pipe work is correctly sealed. • Barrel unions on the inlet and outlet are hand tightened and the pipework is installed square to the pump. - Page 7 Adjustable Speed Mode PLT-V3 PRO & PRO+ @ 7 Star Low @ 1600 Medium @ 2400 High @ 2850 PLT-V5 PRO + @ 7 Star Low @ 1450 Medium @ 2400 High @ 2850 PLT-V8 PRO + @ 8 Star Low @ 1320 Medium @ 2400 High @ 2850...
- Page 8 ECOFLO PLT SERIES VARIABLE 3 SPEED PUMP OPERATION The Ecoflo PLT SERIES Variable Speed Pumps has 3 speed settings…. Eco (Energy Saving) • This should be used for everyday water filtration • The pump should be operated for approximately 8 hours per day depending on the surrounding climate, bather loads, pool volume and length of pipework.
- Page 9 WHEN USING WITH RELTECH / AQUATEK CONTROLLER WITH RS485 COMMUNICATION ▪ Press and hold OFF button for 10secs ▪ Screen will display P 3 -- Press SET ▪ Screen will display 2850 -- Press SET ▪ Screen will display -- Mod Off...
-
Page 10: Water Quality
RELTECH’S RECOMMENDATION • During day-to-day operation we recommend to run the on “eco” for 10 hours (based upon average pool size of 40-50,000lt). This will achieve the lowest noise and lowest operating costs. • In some cases (larger pools, warmer climates and increase bather loads you may have to increase the speed setting or operating duration. -
Page 11: Troubleshooting
➢ Barrel unions need to be hand tightened. No sealant, glues or silicones are required. ➢ When making any enquiries about your RELTECH pool and spa pump be certain to quote the model number from the nameplate located on motor. -
Page 12: Fault Codes
NOTES: (cont) ➢ Never run pump dry. Running the pump with no water may damage the mechanical seals, causing leakage and flooding. Dry running damage and associated damage is not covered under warranty. ➢ Failure to undertake regular maintenance may cause damage not covered by warranty. ➢... -
Page 13: Limited Warranty
7 days of the recognised fault. Reltech will at its option, repair or replace any defective parts. Component failure must be due solely to a defect in materials or workmanship. This warranty does not apply if failure is due to any abuse, misuse, improper installation or accident or to any of the following: •... - Page 14 PLEASE NOTE: ➢ This literature is not a complete guide to product usage. Further information is available from your RELTECH dealer, RELTECH Customer Service Centre and from the relevant product Installation and Operating Instructions. ➢ This data sheet must be read in conjunction with the relevant product Installation and Operating Instructions and all applicable statutory requirements.
- Page 15 Page 15 of 16...
- Page 16 Page 16 of 16...
