hager HS4 Installation Instructions

Hager power supply/chargers convert a 120VAC, 60Hz input to a 12VDC or 24VDC output.
Hager Model Input Rating
Number 115VAC 60Hz
2-679-1162
3.5A
2-679-1163
4.2A
2-679-1164
2.6A
Input:
• See Configuration Chart pg. 1.
Output:
• For output voltage and supply current refer to
Configuration Chart, pg. 1.
• Overvoltage protection.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• See Configuration Chart pg. 1. for maximum charge current.
• Automatic switch over to stand-by battery when AC fails.
Transfer to stand-by battery power is instantaneous
with no interruption.

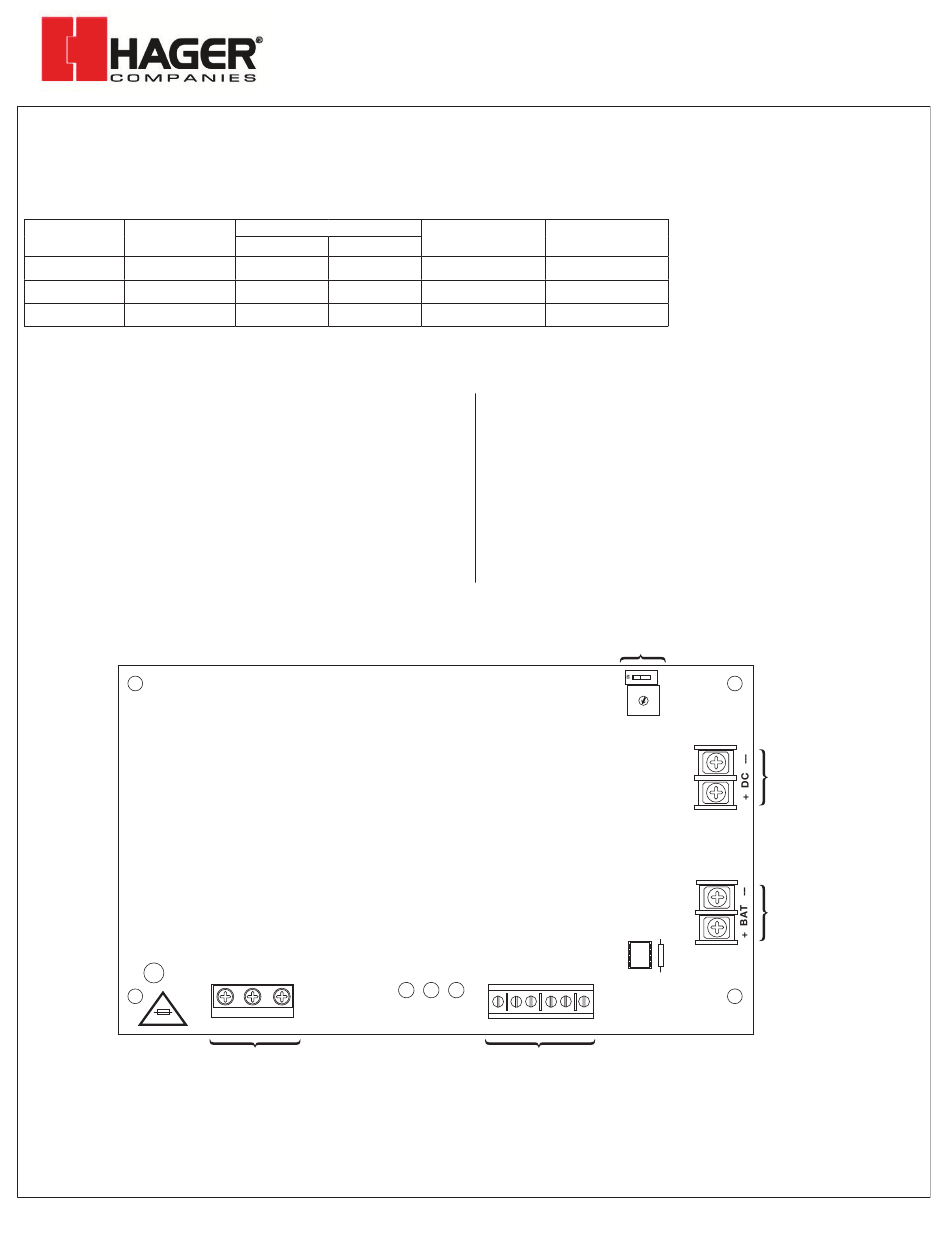

Fig. 1
5A 250V
Output Voltage Selection DIP Switch. Not applicable for 2-679-1163 and 2-679-1164.
*
2-679-1164 terminals marked [– DC +]
**
2-679-1163 terminals marked [– BAT +]
***
Rev: 1 Date: 11/03/21
2-679-1162 , 2-679-1163, 2-679-1164
Configuration Chart:
Output Voltage (Current)
12VDC 24VDC
6A 6A
– 10A
10A –
2-679-1162 , 2-679-1163, 2-679-1164:
AC
L G N
1a
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995
Overview:
Maximum
Battery Fuse
Charge Current
0.7A N/A
3.6A 15A 32V
0.7A 15A 32V
Specifications:
Supervision:
• AC fail supervision (form "C" contacts).
• Battery fail & presence supervision (form "C" contacts).
Fuse Ratings:
• Refer to Configuration Chart pg. 1.
Visual Indicators:
• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.
• BAT trouble LED indicator
Additional Features:
• Short circuit and overload protection.
OFF --- 24V
ON --- 12V
DC BAT
BAT FAIL NC C NO NC C NO AC FAIL
1b
HS4 POWER SUPPLY/CHARGERS
Installation Instructions
1e*
1d**
1c***
I-EA00310
Page 1 of 4
