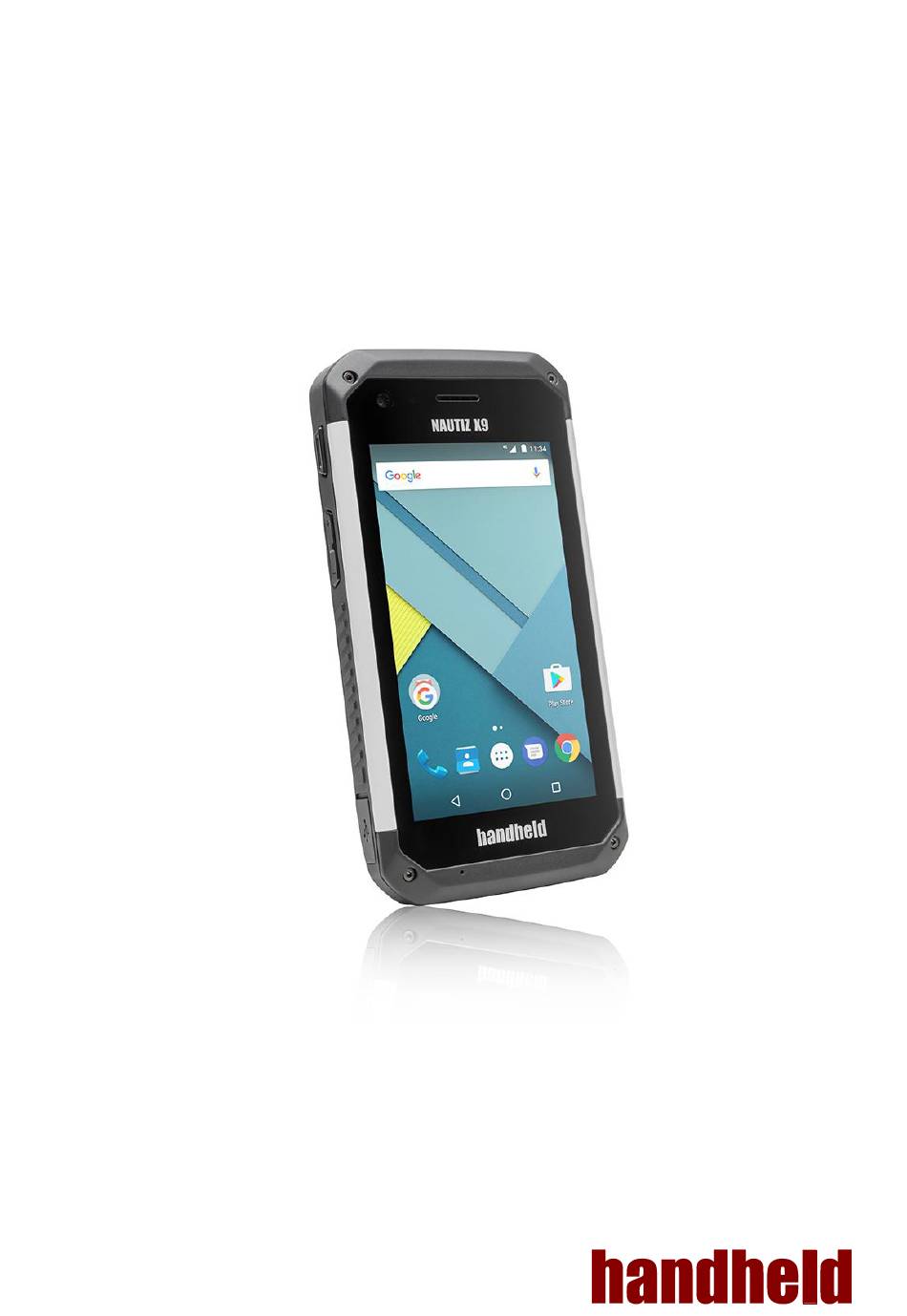

  • Page 1 NAUTIZ X9 MANUAL...

  • Page 2: Table Of Contents

    2.2.1 Checking the Battery Level ......................18 2.3 Installing/Replacing the Battery ......................19 2.4 Optimizing Battery Life ........................... 21 3. Using the Rugged Handheld Device ......................22 3.1 Using the Barcode Scanner ........................22 3.1.1 Using the BarcodeScanWizard (Optional) ..................22 3.1.2 Supported Barcode Formats ......................
  • Page 3 We recommend that you keep one copy of this manual for the quick reference for any necessary maintenance in the future. Thank you for choosing a Handheld product. Ver 1.0...
  • Page 4 DECLARATION OF CONFORMITY The CE symbol on your product indicates that it is in compliance with the directives of the Union European (EU). A Certificate of Compliance is available by contacting Technical Support. This product has passed the CE test for environmental specifications when shielded cables are used for external wiring.
  • Page 5 RoHS Handheld Group AB certifies that all components in its products are in compliance and conform to the Directive 2002/95/EC. The above mentioned directive was published on 2/13/2003. The main purpose of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) in electrical and electronic products.
  • Page 6 Symbols Description risk of damage to the product, should warning notices be disregarded. Important Safety Instructions Read these safety instructions carefully: 1. Read all cautions and warnings on the equipment. 2. Place this equipment on a reliable surface when installing. Dropping it or letting it fall may cause damage 3.
  • Page 7 16. If one of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. e. The equipment has been dropped or damaged. f.
  • Page 8 Rechargeable Battery Pack Safety With very little care, you can optimize the battery life and maximize the lifespan of the battery. Most importantly, use only the equipment in its ideal operating temperature do not leave it in a hot trunk during the summer.
  • Page 9 Disposing of the Equipment Within the European Union EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself.
  • Page 10 Warranty This product is warranted to be in good working order during the warranty period. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.

  • Page 11: Introduction

    1.2 Package Contents Upon opening the package, carefully inspect the contents. If any of the items is missing or appears damaged, contact your local dealer or distributor. The package should contain the following items: Nautiz X9 Main Body Standard Battery Power Adapter Quick Start Guide Ver 1.0...

  • Page 12: Parts Of The Device

    1.3 Parts of the Device NOTE Do not remove transparent film unless you are using the pistol grip accessory Ver 1.0...

  • Page 13: Dimensions

    1.4 Dimensions Ver 1.0...

  • Page 14: Specifications

    1.5 Specifications System Quad Core ARM Cortex-A53 1.3GHz Android 7.0 Memory 2GB LPDDR2 Storage 16 GB eMMC Peripherals and Devices Front: 2.0 MP camera Camera Rear: 13.0 MP camera with Auto-Focus and Flashlight Magnetometer (M-Sensor/E-Compass) Accelerometer (G-sensor) Gyroscope Barometer Proximity sensor Ambient light sensor Sensor Magnetometer (M-Sensor/E-Compass) Accelerometer (G-sensor)
  • Page 15 GPS/GLONASS I/O Interface 1 x micro USB 2.0 port High Speed / OTG Compatible USB Port 1 x microSD card slot SD Slot 1 x micro-SIM (3FF) socket supporting 2G/3G/LTE SIM Cart 1 x micro-SIM (3FF) socket supporting 2G only LCD Display Size/Type 720(W) x 1280(H)

  • Page 16: Getting Started

    2. GETTING STARTED 2.1 Installing microSD and SIM Card To install the microSD card and/or SIM card(s): 1. Pull the back cover release latch towards the bottom of the phone to unlock the latch. Latch locked Latch unlocked 2. Insert a small flathead screwdriver into the notch and gently pry up the cover. 3.
  • Page 17 4. Insert the SIM cards / microSD card following the direction as shown in the graphic.  To insert SIM card(s): The device comes with two SIM card slots, each with their own supported networks. SIM card slot 1 supports 2G, 3G and 4G while slot 2 supports 2G network. Make sure to insert your SIM cards correctly.

  • Page 18: Charging The Battery

    It may also invalidate warranty applying to the device. 2.2.1 Checking the Battery Level When you charge the Nautiz X9, the LED indicator will show the charging status as below:  Charging in progress: Red, solid ...

  • Page 19: Installing/Replacing The Battery

    Also, a battery indicator will appear in the Notification Area showing the charging percentage. The remaining charging time will also be displayed. When the battery is fully charged, unplug the USB cable from the device 2.3 Installing/Replacing the Battery In case you need to install or replace the battery, follow the steps below to access the battery chamber and replace the battery.
  • Page 20 4. Insert the battery back to the compartment while ensuring gold contacts align with the device contacts. Then move the slider to the left to secure the battery. Move the slider to the left to secure the battery. 5. Replace the back cover and push the latch towards the cover to lock it. Ver 1.0...

  • Page 21: Optimizing Battery Life

    2.4 Optimizing Battery Life To optimize the operating time of the battery, it is recommended that you do the following: Decrease the LCD display brightness. Set a shorter timeout of inactivity to allow the screen enter sleep mode. Turn off the display if you are not using it. Always exit the applications if it is not in use.

  • Page 22: Using The Rugged Handheld Device

    To get the information on supported barcode formats, see 3.1.2 Supported Barcode Formats for details. To use the barcode scanner, simply press the scan keys on either side of the Nautiz X9 to scan the barcode. 3.1.1 Using the BarcodeScanWizard (Optional) Generally a third-party barcode application will be used to process the data read by the scanner.

  • Page 23: Supported Barcode Formats

    3.1.2 Supported Barcode Formats Type Formats Linear UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, Inverse 1D, GS1DataBar, Composite Codes 2D Stacked PDF417, MicroPDF417...
