Service Facts
Models:
BAYEVAC08BK1A
BAYEVAC08LG1A
BAYEVAC10BK1A
BAYEVAC10LG1A
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.
WArNINg:
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
BAYEVAC08BK1A
BAYEVAC10BK1A
Section 1. Safety Information
!
▲
SAFETY HAzArd!
by individuals possessing adequate backgrounds of electrical
and mechanical experience. Any attempt to repair a central air
conditioning product may result in personal injury and/or property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
!
▲
HAzArdOuS VOLTAgE!
power, including remote disconnects before servicing. Follow
proper lockout/tagout procedures to ensure the power can not
be inadvertently energized. Failure to disconnect power before
servicing could result in death or serious injury.
© 2010 Trane
HAzArdOuS VOLTAgE - dISCONNECT POWEr BEFOrE SErVICINg
WArNINg
This information is intended for use
WArNINg
Disconnect all electric
EHTRV0810-SF-1

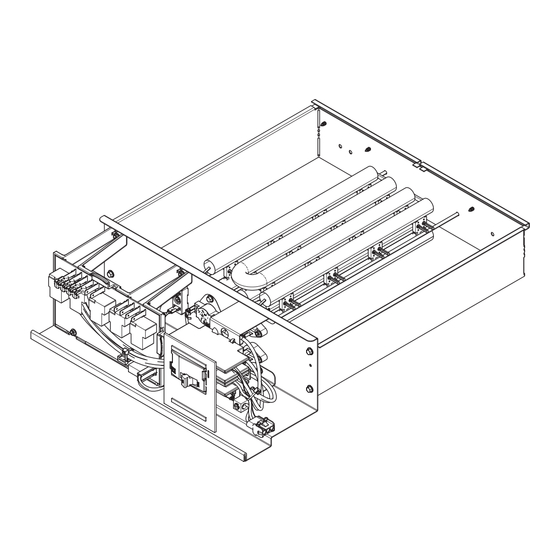

Supplementary
Electric Heaters
for Air Handler Installations
BAYEVAC08LG1A
BAYEVAC10LG1A
!
▲
LIVE ELECTrICAL COMPONENTS!
stallation, testing, servicing, and troubleshooting of this product,
it may be necessary to work with live electrical components.
Failure to follow all electrical safety precautions when exposed to
live electrical components could result in death or serious injury.
▲
!
SAFETY HAzArd!
Sharp Edge Hazard. Be careful of
sharp edges on equipment or any cuts made on sheet metal while
installing or servicing. Personal injury may result.
WArNINg
During in-
CAuTION
12/10
Advertisement
Table of Contents
Related Manuals for Trane BAYEVAC08BK1A
Summary of Contents for Trane BAYEVAC08BK1A
-
Page 1: Section 1. Safety Information
Follow installing or servicing. Personal injury may result. proper lockout/tagout procedures to ensure the power can not be inadvertently energized. Failure to disconnect power before servicing could result in death or serious injury. © 2010 Trane 12/10... -
Page 2: Section 2. Wiring Diagram
Service Facts Section 2. Wiring diagram WARNING HAZARDOUS VOLTAGE! HIGH VOLTAGE DISCONNECT ALL ELECTRICAL POWER WIRING IN INCLUDING REMOTE DISCONNECTS AIR HANDLER BEFORE SERVICING. Failure to disconnect power before servicing can cause severe personal injury or death. CAUTION PL-1 USE COPPER CONDUCTORS ONLY! UNIT TERMINALS ARE NOT DESIGNED TO ACCEPT OTHER TYPES OF CONDUCTORS. - Page 3 Service Facts WARNING HAZARDOUS VOLTAGE! HIGH VOLTAGE DISCONNECT ALL ELECTRICAL POWER WIRING IN INCLUDING REMOTE DISCONNECTS AIR HANDLER BEFORE SERVICING. Failure to disconnect power before servicing can cause severe personal injury or death. PL-1 CAUTION USE COPPER CONDUCTORS ONLY! UNIT TERMINALS ARE NOT DESIGNED TO ACCEPT OTHER TYPES OF CONDUCTORS.
-
Page 4: Section 3. Tables
Service Facts Section 3. Tables Important: The BAYEV* electric heat accessory may include up to a combination of three 30 and/or 60 amp circuit break- ers to provide an electrical disconnect for service personnel that is intended to help protect internal electrical components in the event of a short circuit or ground fault. -
Page 5: Section 4. Troubleshooting
Service Facts Section 4. Troubleshooting The following pages include troubleshooting flowcharts in reference to the BAYEV* communicating electric heaters ONLY. The information contained is for reference only and does not cover all scenarios or problems that may be encountered by a field technician. - Page 6 Service Facts NOTE: Turn thermostat to Emergency Troubleshooting Communicating EHC Heat and raise set-point at least 5 Fault Code #2 - Heat Relay Stuck Open degrees above actual room temperature. Is 24VAC measured from W1 – B and W2 – B at the LVTB? Use a clamp on Verify thermostat wiring and setup.
- Page 7 Service Facts NOTE: If stuck closed fault occurs at 1 Troubleshooting Communicating EHC commission and all relays indicate to be good, verify all heater circuits and wiring Fault Code #3 - Heat Relay Stuck Closed to be correct. Disconnect all power sources from air handler Using ohm meter, place Faulty EHC.
- Page 8 Service Facts NOTE: If NTCO / Element open fault occurs at power up and all NTCO and Troubleshooting Communicating EHC elements indicate to be good, verify that Fault Code #4 – NTCO / Element Open all heat relays are operating correctly. See Fault Code #3 instructions Disconnect all power sources from air handler...
- Page 9 Service Facts NOTE: Turn thermostat to Troubleshooting Communicating EHC Emergency Heat and raise set- Fault Code #5 – CTCO Open Error point at least 5 degrees above actual room temperature. CTCO label is WHITE NTCO label is BLUE Is ~13.8VDC CTCO circuit is measured across good...
- Page 10 Service Facts NOTE: From the factory, the jumper Troubleshooting Communicating EHC should be in the PARK position. If the jumper position is changed and power is Fault Code #6 – Configuration Error applied, the factory programming is voided. The jumper must then be placed in the corresponding position that matches the heater model number.
- Page 11 Service Facts Troubleshooting Communicating EHC Fault Code #8 – Blower Interlock Relay Error Disconnect all power sources from air handler Remove wires from T11 & T12 (CTCO circuit) Turn power on Is ~13.8VDC Faulty EHC Blower interlock measured from T12 Replace and check stuck closed to Ground?
- Page 12 Service Facts Trane 6200 Troup Highway Tyler, TX 75707 Since the manufacturer has a policy of continuous product and product data improvement, it reserves the right to change design and specification without notice. Page 12...
