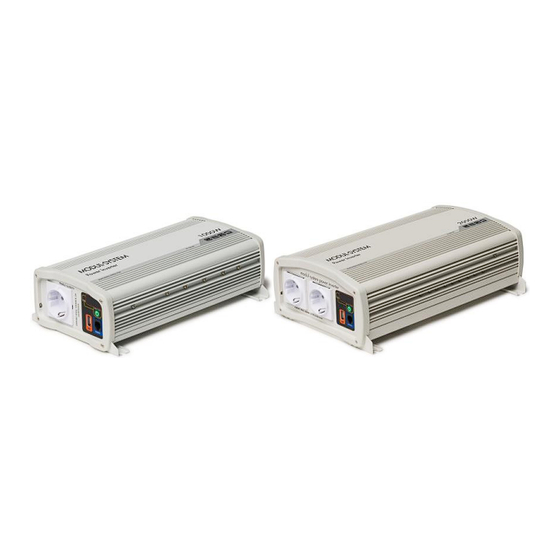

- Page 1 True Sinewave Power Inverter 1000W & 2000W 230V 21100-03, 21200-03 Owner’s Manual Revision: 2.0 Revision date: 2018-07-11...
- Page 2 Important Please be sure to read and save the entire manual before using your Modul-System Power Inverter. Misuse may result in damage to the unit and/or cause harm or serious injury. Read manual in its entirety before using the unit and save manual for future reference.
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ..................4 PRODUCT DESCRIPTION ............... 5 INSTALLATION ..................5 UNIT OPERATION ................. 8 TROUBLESHOOTING ................9 SPECIFICATIONS ................. 10 WARRANTY ..................11 Page 3... -
Page 4: Introduction
1. INTRODUCTION Thank you for purchasing the Modul-System Power Inverter. With our state of the art, easy to use design, this product will offer you reliable service for providing AC power and 5V USB power for your service vehicle. The Modul-System Power Inverter can run many AC-powered appliances when you need AC power anywhere. -
Page 5: Product Description
CAUTION: Before beginning your Modul-System Power Inverter installation, please consider the following: • The Modul-System Power Inverter base unit should be used or stored in an indoor area away from direct sunlight, heat, moisture or conductive contaminants. • When placing the unit, allow a minimum of 80 mm of space around the unit for optimal ventilation. - Page 6 • DC-rated fuse or DC-rated circuit breaker connected along the DC positive line is required. • For 21100-03 select a fuse or circuit breaker with a minimum of 100Adc. • For 21200-03 select a fuse or circuit breaker with a minimum of 200Adc.
- Page 7 • Turn unit on by pressing and holding the On/Off button on the main unit for about a second until a beep sound occur. The ‘Status’ light turns on indicating the Modul-System Power Inverter is ON. Check the digital display show measured battery voltage and output power alternatively. Both AC output and 5V USB are now available.
-
Page 8: Unit Operation
4. UNIT OPERATION WARNING: RISK OF EQUIPMENT DAMAGE • Do not connect an AC power source like utility power or generator to the unit 230 VAC outlets. Turn ON and OFF the unit • Press and hold the “Power/Select” button for 1 second until you hear a beep. Display will show the measured battery voltage and output power alternatively. -
Page 9: Troubleshooting
5. TROUBLESHOOTING To trouble shoot the unit, please note the error code display on the main unit and review the “Understanding the Error Codes” in section 4. Problem Symptom Solution Turn unit ON by following the The unit is off instruction in Section 4 to turn unit ON No output voltage and Status... -
Page 10: Specifications
6. SPECIFICATIONS Note: Specifications are subject to change without notices. True Sinewave Series Specification 21100-03 21200-03 Inverter AC Output Power 1000W 2000W AC Output Current 4.3A 8.7A AC Surge Power (Peak) 2000W 4000W AC Output Voltage 230 VAC / 50 or 60 Hz... -
Page 11: Warranty
If you are experiencing any problems with your unit, please contact our customer service department at info@modul-system.com or phone +46 31 746 87 00 before returning product. After speaking to a customer service representative, if products are deemed non- working or malfunctioning, the product may be returned to Modul-System within 30 days of original purchase.
