Related Manuals for Blaupunkt 40/138M-GB-11B4-FEGQPX-UK
Summary of Contents for Blaupunkt 40/138M-GB-11B4-FEGQPX-UK

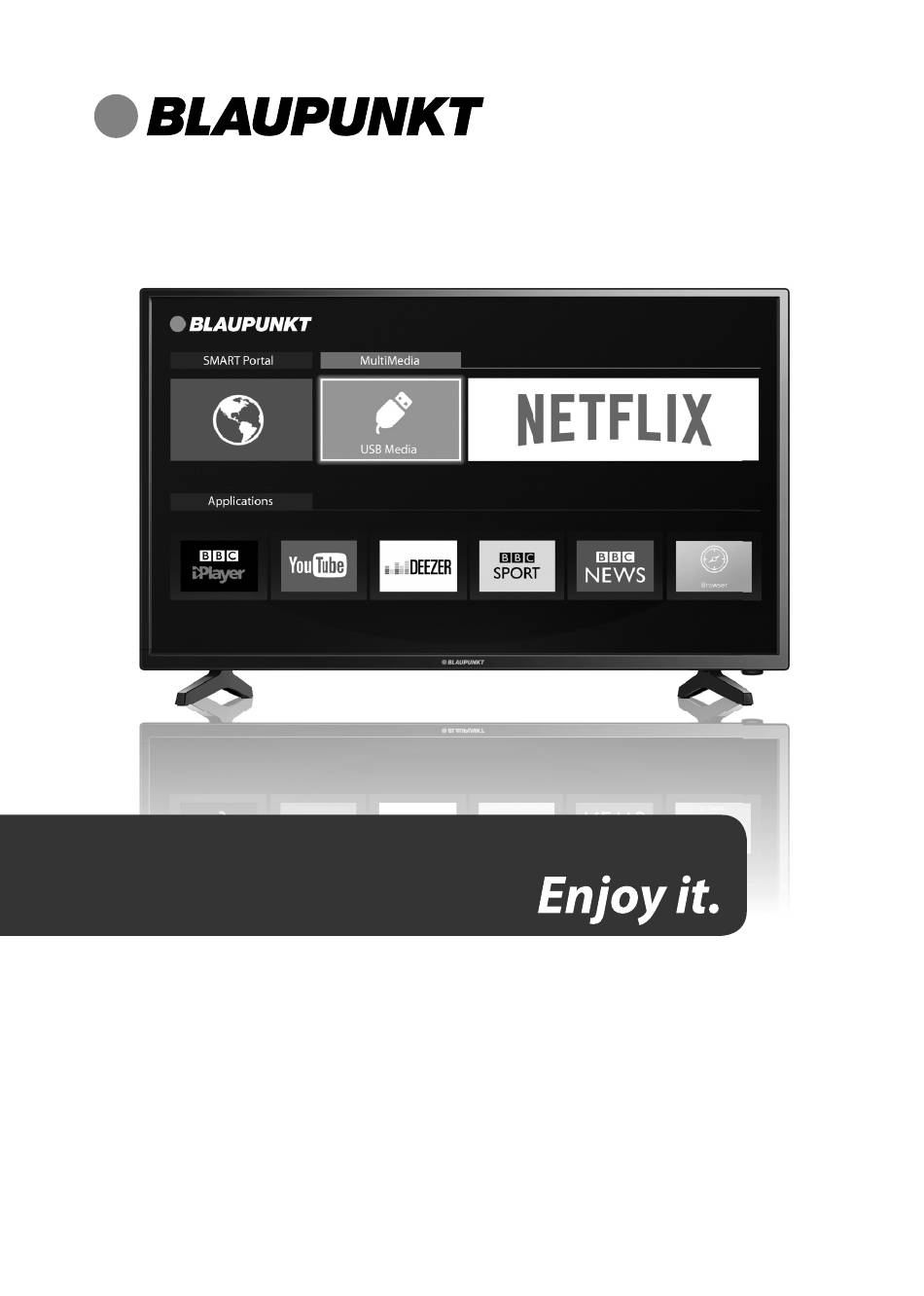

- Page 1 32/138M-GB-11B4-EGPX-UK 40/138M-GB-11B4-FEGPX-UK 32/138M-GB-11B4-EGQPX-UK 40/138M-GB-11B4-FEGQPX-UK...
- Page 3 Manufacturers Guarantee IMPORTANT GUARANTEE INFORMATION Congratulations on purchasing this television. We hope you have many years of trouble free enjoyment from your purchase. Your product is covered under the manufacturers guarantee for 12 months from the date of purchase. If you experience any diffi culties with your TV, please refer to the ‘Frequently asked questions’ section in this user guide.
- Page 4 WARNING: Never place a television set on an Important safety instruction unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Use cabinets or stands recommended by the manufacturer of the television set.
- Page 5 • Time displays. Important safety instruction • Teletext: Do not view a stationary page for a long period of time • TV/DVD menus: e.g. listings of DVD disc content. • Pause mode: Do not leave the TV in pause mode for long periods of time, e.g.
-
Page 6: Trademarks
Trademarks The terms HDMI and HDMI High-Defi nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. HDTV The “HD TV” Logo is a trademark of DIGITALEUROPE. HDTV 1080p The “HD TV 1080p”... -
Page 7: Table Of Contents
CONTENTS Manufacturers Guarantee Information ........3 Important Safety Instructions . -
Page 8: What Is Included In The Box
What is Included in the Box WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories 1 x User Guide 1 x Remote Control and 2 x AAA Batteries User Guide 1 x Quick Start Guide 1 x Mini Component / YPbPr Quick Start Guide... - Page 9 Attaching the Stand ATTACHING THE STAND Attaching the stand feet To complete the stand feet installation you will require a cross head screw driver. Screws that are included. TV panel must be facing downwards. (fi g.1) Place the TV set on a fl at and clean surface with the panel facing downwards to avoid damage, then fi...
-
Page 10: Securing The Tv To A Wall/Wall Mounting
Securing the TV to a Wall/Wall Mounting SECURING THE TV TO A WALL Securing the TV to a wall with anti-tip straps For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. -
Page 11: Remote Control
TV - To switch to Digital Channels. YOUTUBE - Access the Youtube App. NETFLIX - Access the Netfl ix App. SMART - Access the Blaupunkt Smart Portal. RECORD - Access the USB record function. REC LIST - Opens the list of what has been previously recorded. -
Page 13: Tv Control Stick And Inputsource Menu
TV Control Stick and Input Source Menu TV CONTROL STICK AND INPUTSOURCE MENU An example of the ‘Input Source’ menu (will vary by model) Control Stick TV Control Stick The TV control stick is located on the back of the TV in the left bottom corner. The control stick can be used to control many of the TV functions. -
Page 14: Connections
Connections CONNECTIONS Input/Outputs for the 32” models only. S AT IN Ethernet/LAN* Network Connection HDMI 3 (MHL)*** HDMI input HDMI 1 HDMI input 2 x USB USB port HDMI 2 (ARC) HDMI input Earphone Earphone output SCART SCART input AV IN Audio/Video Input SAT IN** Satellite input... - Page 15 * The Ethernet/LAN port is used for Freeview HD services and smart functions. **The Satellite input is for the 40/138M-GB-11B4-FEGQPX-UK model only. *** HDMI 3 (MHL Port) - MHL is a wired solution that allows you to access the media from your phone or tablet onto the big screen in the highest quality.
- Page 16 Connections CONNECTIONS Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is Included In The Box’ page. Connecting to a device with Composite AV/Video output TV Source should be set to Composite/AV. L (white) R (red) Mini Video...
- Page 17 Connections CONNECTIONS Connecting to a device with Component/YPbPr output If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound). TV Source should be set to Component/YPbPr Y (green) PB (blue)
-
Page 18: Day Tv Guide And Channel List
7 Day TV Guide and Channel List 7 DAY TV GUIDE TV Guide is available in Freeview TV mode. It provides information about forthcoming programmes (where supported by the Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders. -
Page 19: Connecting The Tv To The Internet
Connecting the TV to the Internet CONNECTING THE TV TO THE INTERNET When you fi rst power on your new SMART TV there will be an option to follow various on-screen set up instructions. These instructions will enable you to connect to the internet via your home network. You can connect to your home network either wirelessly or with an Ethernet cable. -
Page 20: Tv Menu Operation
TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. - Page 21 TV Menu Operation PICTURE MENU Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs. Choose from the following settings: Auto Automatically displays the best picture format so the picture is in the correct position, black lines maybe viewable at the top/bottom and/or sides.
-
Page 22: Sound Menu
TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. - Page 23 TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons.
-
Page 24: Channel Menu
TV Menu Operation CHANNEL MENU This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 25: Network Menu
TV Menu Operation NETWORK MENU This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 26: Time Menu
TV Menu Operation TIME MENU This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 27: Lock Menu
TV Menu Operation LOCK MENU This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 28: Setup Menu
TV Menu Operation SETUP MENU Language - Allows you to change the language of the menu. Audio Language - Select your preferred primary audio language. Audio Language 2 - Select your preferred secondary audio language. Subtitle Language - Select your preferred primary subtitle language. Subtitle Language 2 - Select your preferred secondary subtitle language. -
Page 29: More Apps Menu
Blaupunkt Smart Portal Blaupunkt Smart Portal is a portal to a variety of apps and multimedia which the TV acesses via the internet. To enter the Blaupunkt Smart Portal you will be prompted to enter a language and accept the terms and conditons. -
Page 30: Media Menu
TV Menu Operation MORE APPS MENU Applications BBC iPlayer - Catch up on your favourite BBC TV programmes and view exclusive content. BBC News - Access the BBC News app for up-to-the-minute and breaking news reports. BBC Sport - The BBC Sport app offers the latest sports news, live action, scores and highlights. Weather - keep track of the weather by using the weather forecasting app, AccuWeather. - Page 31 TV Menu Operation MEDIA MENU USB mode and media server The USB media and the media server offer the playback of various different types of content that is either saved on your USB memory stick or external media server. (USB mode allows you to view/playback fi...
- Page 32 USB Record USB RECORD - FREEVIEW/SOARVIEW MODE USB RECORD – FREEVIEW/SAORVIEW MODE - FOR MODELS WITH THE PVR FUNCTION ONLY Built into this television is a USB record facility. This function is available in Freeview/Soarview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this are as follows: •...
-
Page 33: Using Your Tv With A Sky Digital Set Top Box
General Information USING YOUR TV WITH A SKY DIGITAL SET TOP BOX Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room) Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately) . -
Page 34: Frequently Asked Questions
General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder Option1) Use the 3.5mm headphone output and a 3.5mm to phono cable sound by connecting additional (available separately) to connect to an amplifi er/surround sound system. Please speakers. For TV models with note this will deactivate the TV’s built in speakers. - Page 35 General Information FREQUENTLY ASKED QUESTIONS Freeview HD I cannot access all Freeview Some data channels for Freeview can only be obtained when the TV ‘s ethernet port is channels. connected to your router. Freeview HD I cannot fi nd the Freeview HD Freeview HD channels found during tuning will be placed in channel positions above 100.
-
Page 36: Technical Specifi Cations
General Information TECHNICAL SPECIFICATION Product fi che Trademark Blaupunkt Model ID 32/138M-GB-11B4-EGPX-UK, 32/138M-GB-11B4-EGQPX-UK Energy effi ency class Visible screen size (diagonal) 81 cm / 32 inches On mode power consumption 31.0 W Annual energy consumption *1 45 kWh Standby power consumption *2 <0.50 W... - Page 37 2 x 10 / 2 x 8 Voltage and power consumption 220-240V 50Hz 48/75/90/<0.5W (ecomode/standard/max/standby) Dimensions including stand (mm) 921 W x 571 H x198 D Net weight (Kgs) Wall Mounting VESA 200 x 300 (mm) Satellite input is for the 40/138M-GB-11B4-FEGQPX-UK model only.
- Page 38 General Information TECHNICAL SPECIFICATION Compatible fi le types for USB and DLNA Media Codec Resolution Bit Rate File Extension .DAT, .VOB, .MPG, .MPEG,.ts, .trp, .tp, .mp4, .mov, MPEG1/2 1080P@60fps 40Mbps .3gpp, .3gp, .avi, .mkv, .asf MPEG4 1080P@60fps 40Mbps .MPG, .MPEG, .mp4, .mov, .3gpp, .3gp, .avi, .mkv, .asf XviD 1080P@60fps 40Mbps...
- Page 40 BLA/MAN/0372...
