Summary of Contents for Blaupunkt 40FB5000

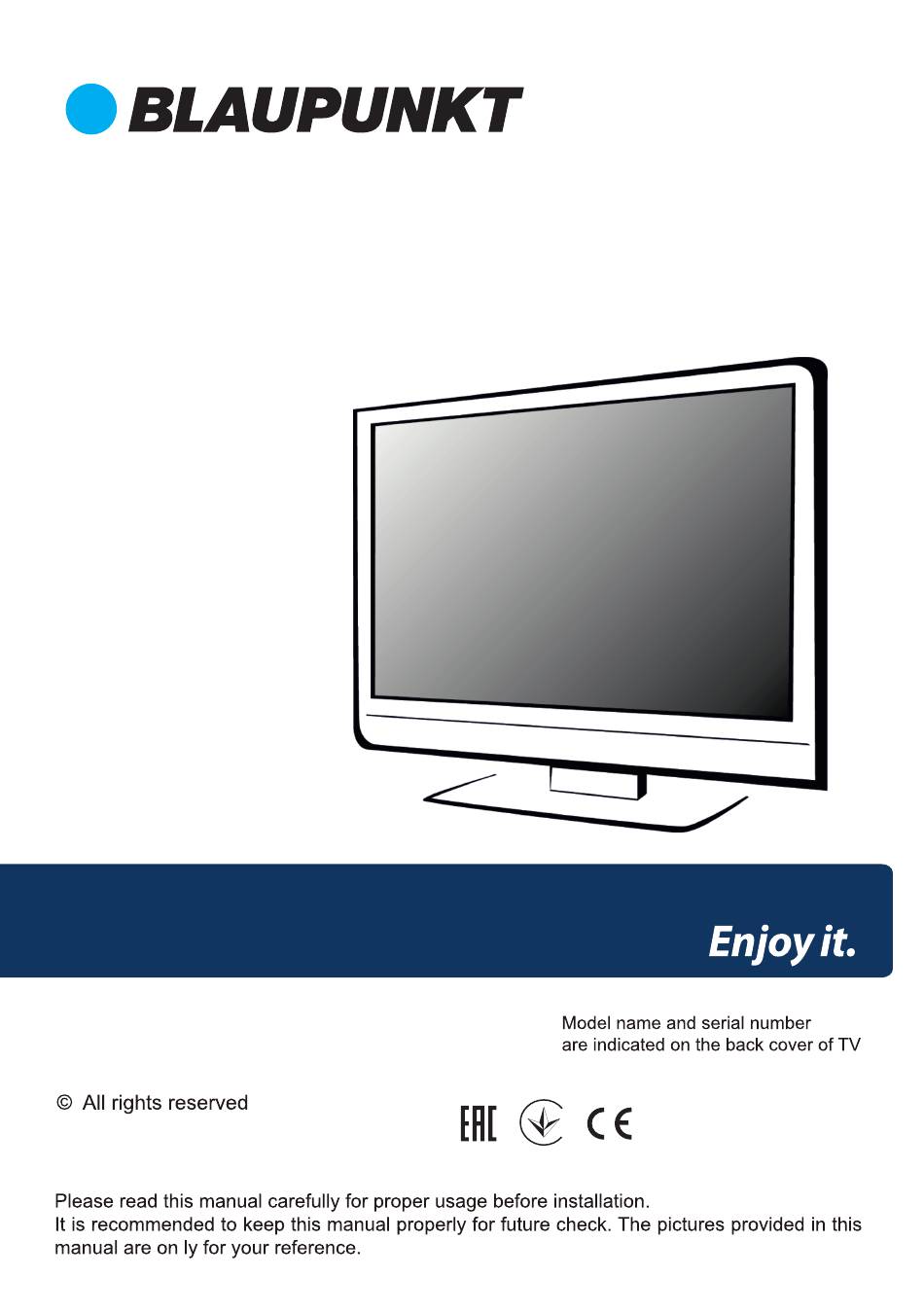

- Page 1 USER'S MANUAL LED TV 40FB5000 Union Distribution s.r.o. address: Na Srtzi 1702/65, 140 00 Prague 4, Czech Republic...
-
Page 2: Table Of Contents
Table of contents Help/Package contents ......................1 Warning..........................2 Safety instructions........................ 5 Getting started ........................7 Controls and connections..................... 8 Connecting antennae, Internet and external devices............Getting started ........................12 After use..........................12 Trouble-shooting ........................ 13 Specifications........................15 Service and certification information ................... 15 Figures and illustrations in this Operation Manual are provided for reference only and may differ from actual product appearance. - Page 5 Operating conditions: air temperature from 15 to 35 ° C; humidity from 45 to 75%; atmospheric pressure from 86 to 106 to Pa (from 650 to 800 mm of mercury). Transportation: Packed TVs are allowed to be transported by all modes of transport air temperature from +50 to - 40 °...
-
Page 8: Getting Started
Getting started Fitting the stand Before you can install your TV set, you need to fit the stand. Alternatively, you can mount it on the wall. A Phillips screwdriver is needed to perform the installation. Setting up the TV set Place your TV set on a flat, stable surface (e.g. -
Page 9: Controls And Connections
Controls and connections Caution: Before connecting or disconnecting any cables, switch off all related devices (also the TV). Otherwise you could damage the devices. Back USB2.0 500mA) HDMI2 HDMI3 Headphone out : Earphones/headphones jack. Common Interface slot. USB2.0: USB port. Connector a USB Storage device for multimedia file playback. AV IN: AV audio/video signal input. - Page 10 Remote control Definition of the buttons on remote control: Buttons escription Power Turn on/off TV Mute Mute or restore sound Control media playback in Media Media mode Number Number buttons Info Display program information Launch Electronic Program Guide Settings Display System Settings Menu Source Select signal source Press the direction buttons to...
-
Page 11: Connecting Antennae, Internet And External Devices
Connecting antennae, Internet and external devices Connecting a digital audio system You can connect your TV set to a digital audio system (e.g. amplifier, home cinema). Connect the plug at the end of a coaxial audio cable (not supplied) to the Digital Audio connection on your TV set. - Page 12 Connecting an external device with AV output Connect external devices via the AV IN jack directly to TV by using a Mini AV cable. In order to play the audio and video signal fed in from the external device on the TV, select the signal source “AV”.
-
Page 13: Getting Started
Connecting the network cable (LAN connection) You can also establish an internet connection via WiFi. Getting started Powering the TV set on and off Powering on Check that the TV is in standby mode. This means the mains cable must be connected to a working mains socket.Then press the power button on the device or the button on the remote to turn on the TV. -
Page 14: Trouble-Shooting
3. If you wish to move the device outside your building, demount the base and the optional side supports or the mounted wall bracket by reversing the procedure. 4. Pack the TV set up carefully. Take special care to ensure the corners of the casing and the screen are well protected. - Page 15 • Is the antenna plugged in? Adjust the antenna. • Check that the channel is tuned properly. • Adjust the picture settings, such as brightness, colour, sharpness. No sound • Is the sound muted? Press the button . • Is the volume turned down? Press the button .
-
Page 16: Specifications
Specifications Model 40FB5000 Screen Size 40"(101cm) 1920 x1080 Resolution Brightness (cd/㎡) Contrast ratio 5000:1 Aspect Ratio 16:9 Viewing angle 170/170 ~100-240V 50Hz Power Input VESA 200x200 Without stand 904.3×514.5×8 Dimensions (mm) 904.3×561.5×180. With stand Weight (kg) With stand Note: The technical data and design may be changed without prior notice.
