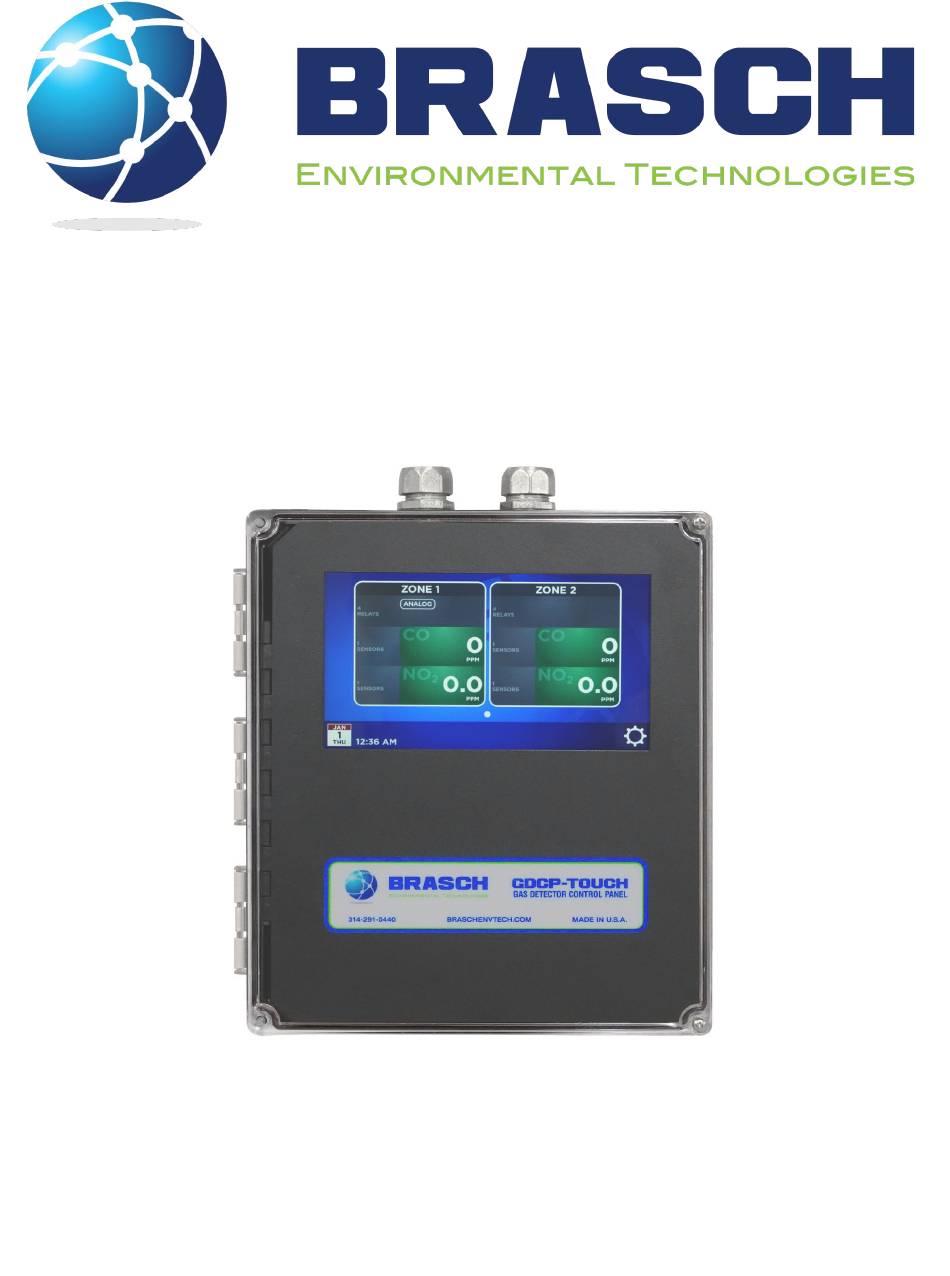

- Page 1 GDCP-Touch Quick Start Guide Brasch Environmental Technologies, LLC 140 Long Road, Suite 101 Chesterfield, Missouri 63005 This product comes with free installation and 314-291-0440 startup training. See back cover for details. www.braschenvtech.com...
-
Page 2: Step 2 - Input Wiring
Contact Brasch Environmental Technologies, LLC before connecting power to the control panel or transmitters if you are unsure of the correct power requirement. - Page 3 This device uses an EMI power line filter to reduce unwanted noise. Connect the incoming power conductors to the line side of the filter. The load side of the filter is already wired to the input power terminals on the relay board. Be sure to ground the control panel at the center terminal of the line filter.
-
Page 4: Step 4 - Relay Wiring
situation dictates. Follow the wiring diagrams on pages 20 through 23 of the manual to determine the proper connections at the panel. Step 4 – Relay Wiring The relay board inside the control panel has four relays with connections for both normally open (NO) and normally closed (NC) operation. -
Page 5: Step 7 - Testing The System
CAUTION Misconnected or disconnected power wires can cause damage in properly connected communication wires. Disconnecting communication wires at the control panel to check that system components are operating properly and at the correct voltage when power is applied may reduce the risk of catastrophic failure. Once power has been applied and verified, remove power, connect communication wires, and reapply power for best results. -
Page 6: Typical Installation Diagrams
Typical Installation Diagrams Full resolution diagrams available at https://www.arcat.com/arcatcos/cos52/arc52580.html. Figure 1: Wiring – Two Fan Ventilation System with Common Alarm Figure 2: Wiring – Two-Speed Fan Ventilation System SG04 Rev 2.0 – July 30, 2024... - Page 7 Figure 3: Wiring – Transmitter Connection – Daisy Chain Figure 4: Wiring – Transmitter Connection – Single View SG04 Rev 2.0 – July 30, 2024...
- Page 8 Figure 5: Wiring – Analog Output Figure 6: Wiring – Relay Connections SG04 Rev 2.0 – July 30, 2024...
- Page 9 Free Installation and Startup Training Brasch offers a complimentary online installation and startup training session for your new GDCP-Touch control panel system. It is free and covers everything you need to know to get the system running. Sessions are every Tuesday at 10 AM CT and Thursday at 2 PM CT.
