- Page 1 Operation Manual STRIKER WELDING INvERtER FOR maNuaL aRc WELDING...
-
Page 2: Safety Warning
Dc WELDING INvERtER FOR maNuaL aRc WELDING SAFETY WARNING On the process of welding or cutting, there will be possibility of injury, so please take protection into consideration during operation. For more details please review the Operator Safety Guide, which complies with the preventive requirements of the manufacturer. -
Page 3: Work Area
1.1 EquIpmENt • Repair and maintenance to be performed by authorized personnel only. • The welding machine is to be maintained in good operational conditions (dry and clean). • The welding machine is not to be positioned in a closed space or next to a wall while welding in order to avoid problems with venting. -
Page 4: General Information

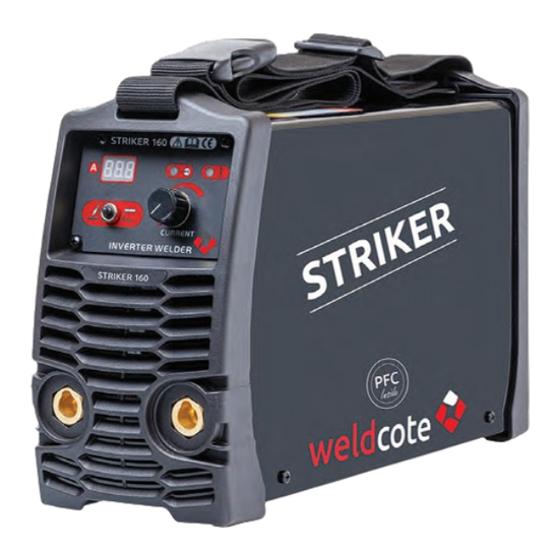

2.0 GENERaL INFORmatION 2.1 DEscRIptION 1. Selector Switch between Tig and Stick 2. Digital Display 3. Power On Light 4. Alarm Light 5. Welding Current Adjustment 6. Negative Port 7. Positive port 8. On/Off Switch 9. Input Power Cable Single phase inverter with voltage reduction for direct current welding using coated electrodes of diameters 1/16"... - Page 5 2.2 paRamEtERs PARAMETERS STRIKER 160 Input power 1~120±10%, 50/60Hz 1~230±10%, 50/60Hz Rated Input Current (A) 21.3 34.7 14.4 22.3 Rated input power (KW) Power factor 0.99 0.99 Welding current range (A) 10~125 10~160 Max no-load voltage (V) 55 (80) Efficiency (%) ≥80%...
-
Page 6: Installation
3.0 INstaLLatION 3.1 maIN cONNEctIONs Before connecting to the power grid, verify the supply voltage is in range of the machine parameters. • The power cable plug is to be connected to standard approved socket, with the proper protections. • The ground line (green & yellow) is to be connected to the grounding pin. 4.0 WELDING accEssORIEs: cONNEctION aND appLIcatION 4.1 WoRK LEAD WITH WoRK CLAMP The work clamp is to be connected directly to the work piece or the work table with good... -
Page 7: Operation
Electrode package you are using (for most electrodes the "+" terminal). • In case of doubt or when un-clear get in touch with WELDCOTE technical support advisor. • Turn the machine on using the ON/OFF switch (8), the ON indication light (3) will be lit at this stage and the digital display will show the current the machine is set. - Page 8 PFC TEChNOLOGY Reduces energy consumption up to 50% considering the model of conventional type welding machine and enables usage of energy in high efficiency and high quality. Supply Voltage and Current over time comparison (under steady load): Large Small Energy Energy Loss Loss...
- Page 11 WaRRaNty caRD years warranty Customer Name: Serial Number: Address: Email: Model Number: Tel Number: Dealers Name: Date Of Purchase: Dealers Signature And Stamp: WARRANTY TERMS: 1. The warranty is valid for three years for any manufacturing defect. 2. This warranty is canceled if this certificate is not sent immediately upon purchase with tax invoice attached.
- Page 12 4. only electronic components inside can be repaired for any manufacturing defects during warranty period. The warranty is valid under the following conditions: • Stamped and signed by the seller. • The warranty certificate arrived at the WELDCoTE offices within 14 days of the purchase, together with an invoice. Weldcote Metals 842 oak grove Road, Kings Mountain, nC 28086 USA.
