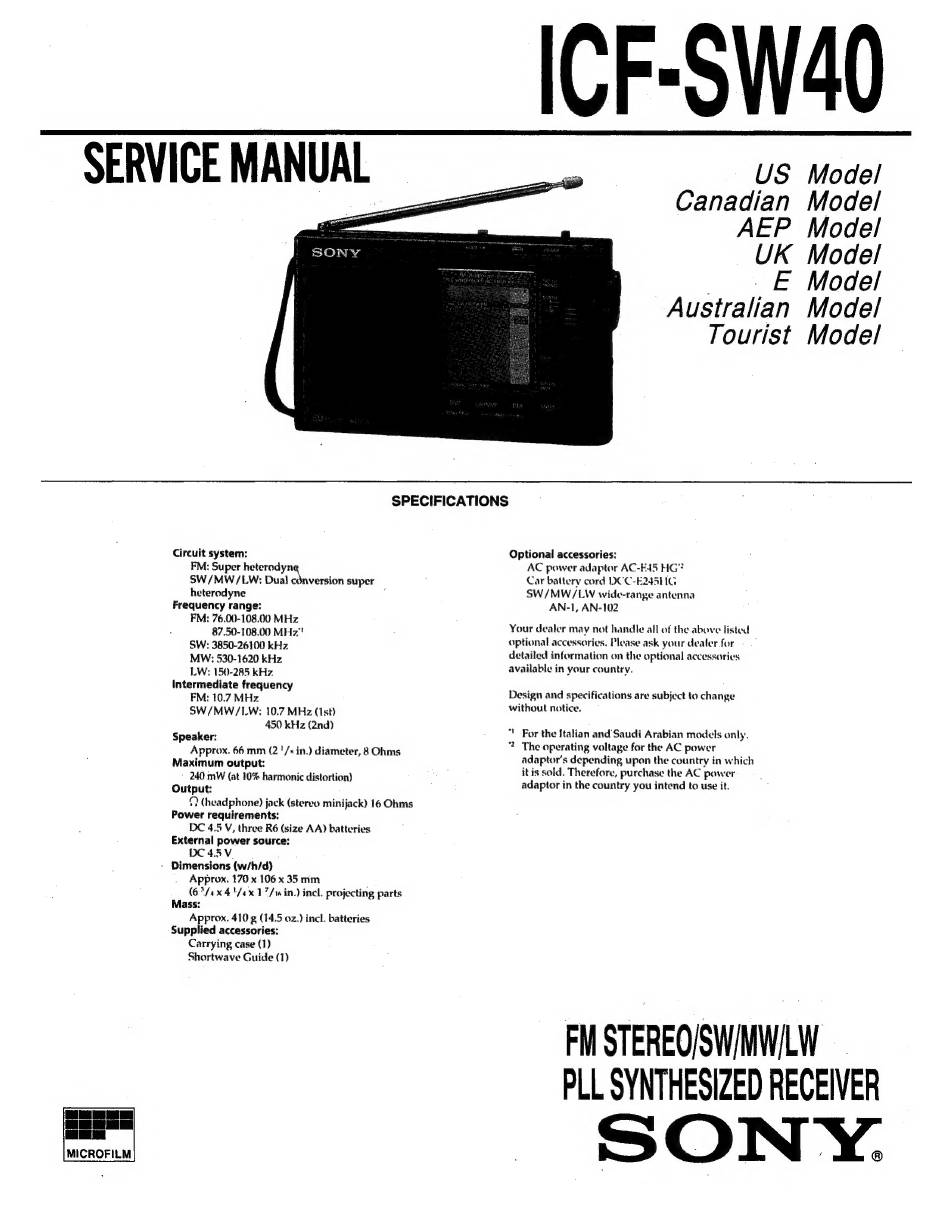

Sony ICF-SW40 Service Manual

ICF-SW40
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
Pee: : _E Model
Australian Model
Tourist Model
SPECIFICATIONS
Circuit system:
FM: Super bata dial
SW/MW/LW: Dual conversion super
heterodyne
Frequency range:
FM: 76.00-108.00 MHz
87.50-108.00 MHz"
SW: 3850-26100 kHz
MW: 530-1620 kHz
LW: 150-285 kHz.
Intermediate frequency
FM: 10.7 MHz
SW/MW/LW: 10.7 MHz (1st)
450 kHz (2nd)
Speaker:
Approx. 66 mm (2 !/x in.) diameter, 8 Ohms
Maximum output:
240 mW (at 10% harmonic distortion)
Output:
© (headphone) jack (stereo minijack) 16 Ohms
Power requirements:
DC 4.5 V, three R6 (size AA) batteries
External power source:
DC 4.5 V
- Dimensions (w/h/d)
Approx. 170 x 106 x 35 mm
(6°/1x4'/4x 17/1 in.) incl. projecting parts
Mass:
Approx. 410 g (14.5 02.) incl. batteries
Supplied accessories:
Carrying case (1)
Shortwave Guide (1)
MICROFILM
Optional accessories:
AC power adaptor AC-E45 HG?
Car battery cord DCC-E245HG
SW/MW/LW wide-range antenna
AN-1, AN-102
Your dealer may not handle all of the above listed
optional accessories. Please ask your dealer for
detailed information on the optional accessories
available in your country.
Design and specifications are subject to change
without notice.
"For the Italian and Saudi Arabian models only.
2 The operating voltage for the AC power
adaptor's depending upon the country in which
itis sold. Therefore, purchase the AC power
adaptor in the country you intend to use it.
FM STEREO/SW/MW/LW
PLL SYNTHESIZED RECEIVER
