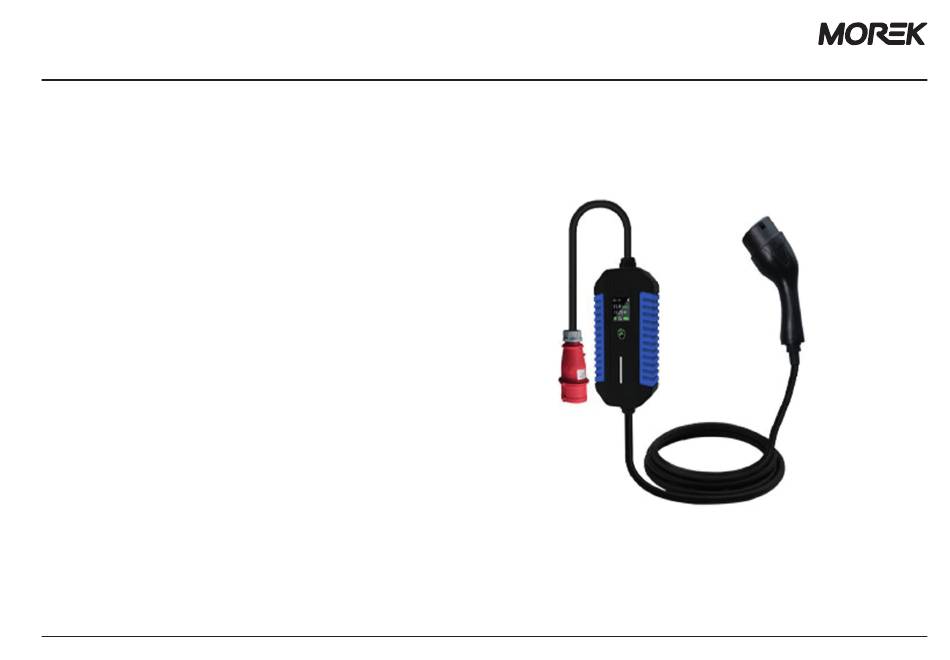

- Page 1 User manual Morek EV 22 kW Portable Charging Adapter Safety Information Technical information Maintenance and Cleaning Instructions Screen Information How to use LED Display Status Error Code and troubleshooting Recycling guidelines EN_24v1 ev.morek.eu...
-
Page 2: Safety Information
• Do not attempt to open, disassemble, repair, tamper with, or modify the mobile connector. The connector is not user-serviceable. Contact Morek or local reseller for any issues. • Do not use (or discontinue using) the charging adapter if it appears defective, cracked, frayed, broken, damaged, or fails to operate. -
Page 3: Maintenance And Cleaning
Maintenance and Cleaning Morek EV product ID MEV11DNNNN5T2 Charging mode Level 2 Connector type Type 2 connector with 5 m cable Cleaning Charging control Plug-and-Charge, start/stop touch button, adjustable between 8 - 32A • Disconnect the adapter from the vehicle and the power socket. -
Page 4: Screen Information
Screen Information 1. EV and Power Connection 2. Power Charged 3. Time or Delay Charging kW h 4. Current (Selected) 5. Fault Alarm 6. Unit of Power 7. Delay Charging Icon 8. Charging Cycle Display ev.morek.eu... -
Page 5: How To Use
Check from the adapters screen that all is Step 4: Remove the plug from the socket when charging is ended or after you have ended it. Unplug the power plug from the outlet on the wall. Store the adapter to the storage bag. ev.morek.eu... -
Page 6: Led Display Status
LED3: Green2, status indicator, Connection and Current Indication LED4: Green3, status indicator, Connection and Current Indication ICCPD-1P16A-M1 LED Display Status State Green(1) Green(2) Green(3) Current indication Power On Available Connected Blink Blink Blink Reserved Blink Charging Cycle light Finishing Faulted ev.morek.eu... -
Page 7: Error Code And Troubleshooting
Check shell heat dissipation Flash 8 times Diode loss Check EV CP diodes Standard: IEC62196-2IEC62752 Real-time monitoring has welding detection, temperature detection, PE connection detection, overvoltage detection, over-current detection, and CP voltage, any failure will be displayed according to the above table. ev.morek.eu... - Page 8 Please sort your waste according to local MOREK IT OÜ Pärnu mnt 160j, Tallinn recycling guidelines 11317, Eesti ev.morek.eu Please do not dispose of this appliance in your standard household waste. This appliance falls under European Directive 2012/19/EU. Have it disposed of by an authorized waste disposal and recycling firm, in accordance with local waste management regulations.
