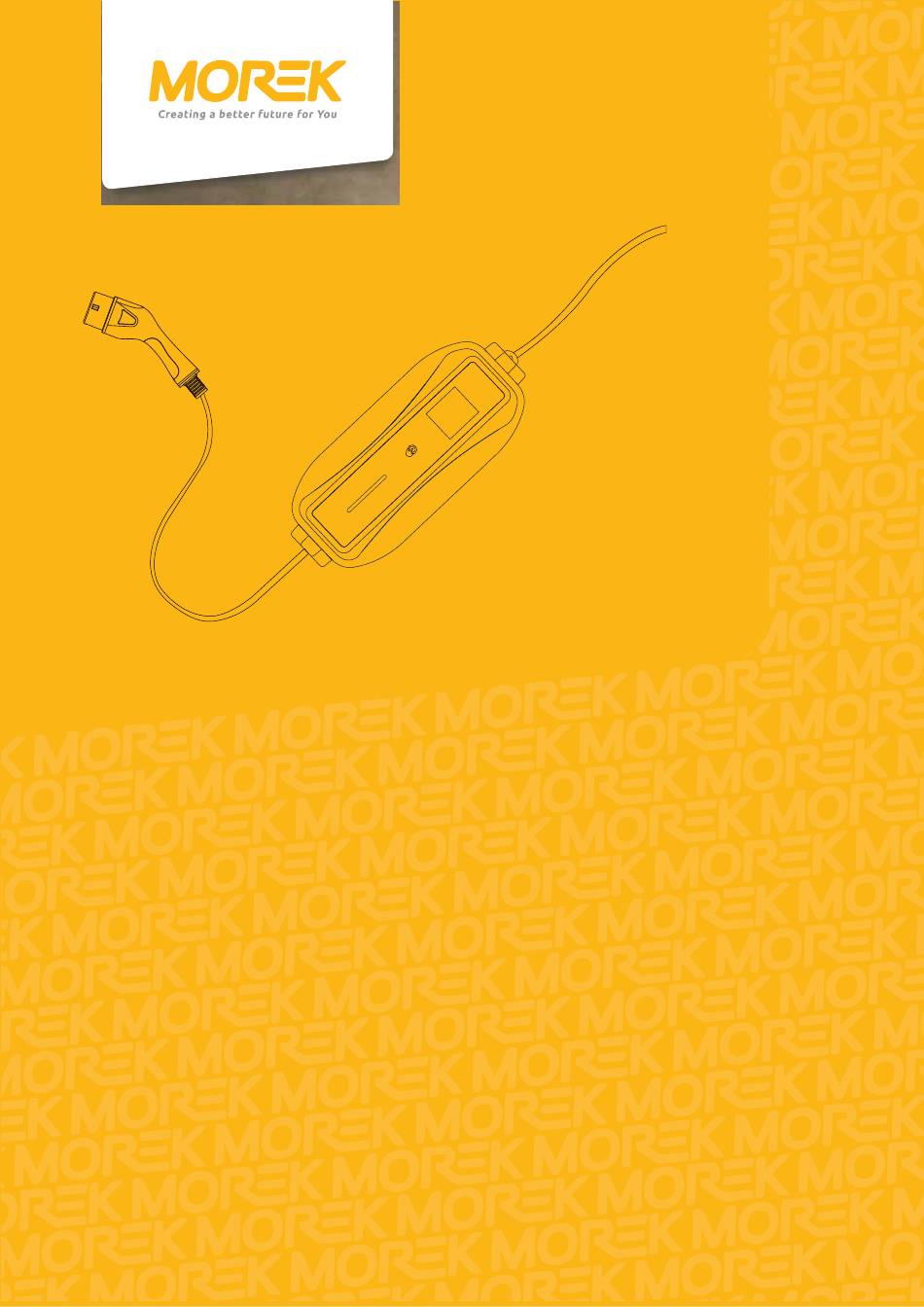

- Page 1 Morek EV Charging Adapter User Manual ev.morek.eu...
-
Page 2: Safety Information
▪ Do not attempt to open, disassemble, repair, tamper with, or modify the mobile connec- tor. The connector is not user-serviceable. Contact Morek or local reseller for any issues. ▪ Do not use (or discontinue using) the charging adapter if it appears defective, cracked, frayed, broken, damaged, or fails to operate. -
Page 3: Specifications
Wall (optional with bracket) Efficiency >99% Power meter Integrated AC power Input rating 3-phase 400V±20% / 1-phase 230V±20% Morek EV 11 kW Rated frequency 50/60 Hz EVSE mobile adapter Output current 32 A / 16 A Output power 11 kW/ 7.4 kW/ 3.6 kW Use it when traveling or at home. -
Page 4: Screen Information
Metering Reset: Long press for more than 5 seconds to reset the accumulated charging power. Screen Information EV and Power Connection Power Charged Time or Delay Charging Current (Selected) kW h Fault Alarm Unit of Power Delay Charging Icon Charging Cycle Display ev.morek.eu... -
Page 5: Led Display Status
Check shell heat dissipation Flash 8 times Diode loss Check EV CP diodes Real-time monitoring has welding detection, temperature detection, PE connection detection, overvoltage detection, over-current detection, and CP voltage, any failure will be displayed according to the above table. ev.morek.eu... -
Page 6: How To Use
OK. Step 4: Remove the plug from the socket when charging is ended or after you have ended it. Unplug the power plug from the outlet on the wall. Store the adapter to the storage bag. ev.morek.eu... -
Page 7: Maintenance And Cleaning
Repairs/Modifications Any repairs and/or modifications may only be performed by the manufacturer. Never open the housing, and do not make any changes to the charger and control box in any way by yourself. ev.morek.eu... - Page 8 TÜV Rheinland. The certificate confirms full compliance with the standards upon which the product is based. This charging adapter meets the requirements of EU Directives that restrict the use of certain hazardous substances in electrical and electronic equipment. ev.morek.eu...
- Page 9 Questions? Make us work harder! More information about Morek EV chargers and discussions about EV user cases can be found from ev.morek.eu...
