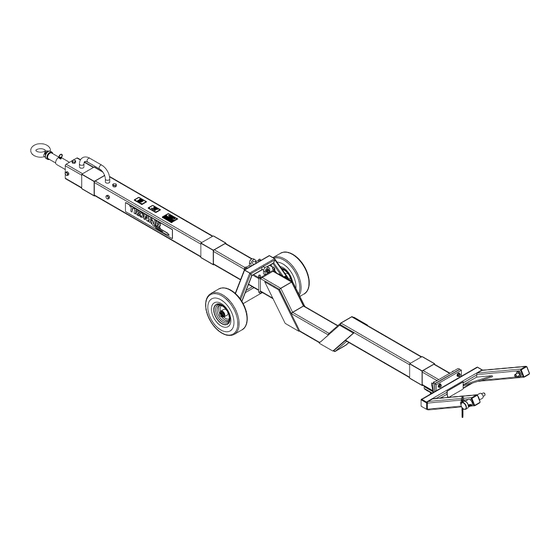

- Page 1 OPERATION & SERVICE MANUAL Model: 01-1310-0000 Custom Towbar CASA CN235 01/2021 Rev. 03 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 04/2010 Original release 11/2012 Modified Parts List 01/2021 Major revision...
-
Page 3: Table Of Contents
Model: 01-1310-0000 CASA CN235 Custom Towbar TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 GENERAL ................................1 ASSEMBLY INSTRUCTIONS ............................1 HEAD ASSEMBLY .............................. 1 TRAINING .................................. -
Page 4: Product Information
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Operation
Model: 01-1310-0000 CASA CN235 Custom Towbar OPERATION LANDING GEAR ASSEMBLY Place landing gear assembly in desired location. Torque clamp nuts to 35 ft-lbs (47.5 N-m). PRELIMINARY CHECKLIST 5.2.1 Towbar Check towing eye mounting bolts. Ensure the fasteners are not loose or missing. -
Page 6: Couplers
Tronair recommends a telecoupler pintle hook arrangement. This arrangement is known to eliminate binding. Tronair offers a Standard Telecoupler, Model Number 01-1950-5000, for use on tugs. Reference Figure 3. Damage to the towbar and/or aircraft can result by towing or pushing an aircraft with an incorrect size eyebolt or pintle pin. -
Page 7: Provision Of Spares
If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents. - Page 8 Z-6141 Assembly, Shock Item 1 consists of items which are not sold separately. Due to the high compression used in assembly, it is suggested this Shock Assembly be returned to Tronair for repair. Discuss with your salesperson. Z-7237-01 Machining, Towbar...
- Page 9 Model: 01-1310-0000 CASA CN235 Custom Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description R-2709 Pin, Sliding Screw, Hex Head, Machine #10 – 32 x G-1150-103503 long H-1026*07.0...
