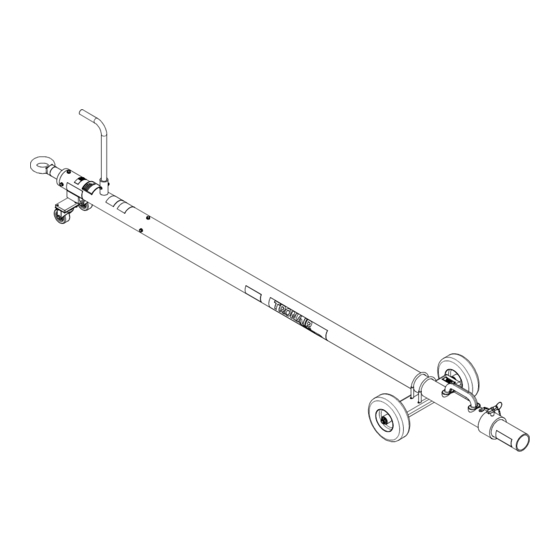

- Page 1 Operation & Service Manual Model: 01-1202-0000 Multi-Head Towbar 11/2006 - Rev. 17 Includes Illustrated Parts List Tronair, Inc. 1740 Eber Road Holland, Ohio 43528-9794 • Telephone: (419) 866-6301 800-426-6301 Fax: (419) 867-0634 Web Site: www.tronair.com E-mail: sales@tronair.com...
-
Page 3: Table Of Contents
Model: 01-1202-0000 Multi-Head Towbar TABLE OF CONTENTS PAGE Description ..............................1 Specifications ............................1 Safety Information ............................1 General ..............................1 Operation .................................1 Landing Gear Assembly ........................1 Towbar Checklist ...........................1 Usage Procedure...........................2 3.3.1 Aircraft Attachment ........................2 3.3.2 Tug Attachment .........................2 3.3.3 Couplers ............................3 3.2.4 Towing Operation ........................4... -
Page 4: Model: 01
Model: 01-1202-0000 Multi-Head Towbar REVISION DATE TEXT AFFECTED 12/2003 pg 2 3.2 Warning added 11/2004 pg 1 Modified 3.2 Towbar Checklist 11/2006 Added CE standards 11/2006 − Rev. 17... -
Page 5: Description
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 6: Usage Procedure
• Inspect the towbar tube for cracks, gouges greater than 1/16 inch, and bends or deformities. A damaged or bent towbar should not be used. Contact Tronair for replacement. • Check the casters to ensure the swivels operate freely and the bearings are not missing. -
Page 7: Couplers
An approximate one-half inch (½") gap between the pin diameter and the eyebolt should be seen. If any of these conditions are not met, please contact Tronair for information to obtain a new coupler. FIGURE 3... -
Page 8: Towing Operation
419-867-0634 Holland, Ohio 43528-9794 USA E-mail Address: sales@tronair.com www.tronair.com PARTS LIST Reference Pages 6 & 7 for ordering information of Replacement Parts and Kits. IN-SERVICE SUPPORT Contact Tronair for technical services and information. 11/2006 − Rev. 17 - 4 -... -
Page 9: Guarantees
Multi-Head Towbar GUARANTEES Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the following items:... - Page 10 Model: 01-1202-0000 Multi-Head Towbar Parts List When ordering Replacement Parts/Kits, please specify Model & Serial Number of your product. ITEM PART NUMBER DESCRIPTION − Item 11 Shock Assembly consists of Items 1 10 which are not sold separately. 14 ......H-1026*12.0 ......Assembly, Lanyard ............1 15 ......
- Page 11 4 4 4 4 Use Loctite 271 or equivalent during re-assembly. ♦ Due to the high compression used in assembly, it is suggested this Shock Assembly be returned to Tronair for repair. Discuss with your Salesperson. 11/2006 − Rev. 17 - 7 -...
-
Page 13: Appendix I Declaration Of Conformity
APPENDIX - I Declaration Conformity... - Page 15 Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the manufacturer: Quality Assurance Representative Tronair, Inc. 1740 Eber Road Holland, Ohio 43528-9794 • Telephone: (419) 866-6301 800-426-6301 Fax: (419) 867-0634 Web Site: www.tronair.com E-mail: sales@tronair.com...
