CARATTERISTICHE
AC DIMMER + FADER
Brightness adjustment of WHITE and MONOCHROME light
Power supply (AC IN): 230 Vac @ 50 Hz, with internal 1 A fuse
Output (AC OUT): 230 Vac Trailing Edge (350 W max), for incandescent and halogen lamps, LED switching lamps, strip
and linear LED lamps, dimmable Trailing Edge drivers
Remote Control via BUS (DALI)
Local Control (PUSH) via N.O. button
Features that can be set from the Dalcnet LightApp
Device configuration and DALI commissioning
o
Dimming curve
o
Max and min brightness levels
o
Fade-in and Fade-out time ramps
o
Memory function: stores the last brightness level set
Soft switching ON and OFF
Extended temperature range
Typical efficiency > 95%
100% Functional Test
PRODUCT DESCRIPTION

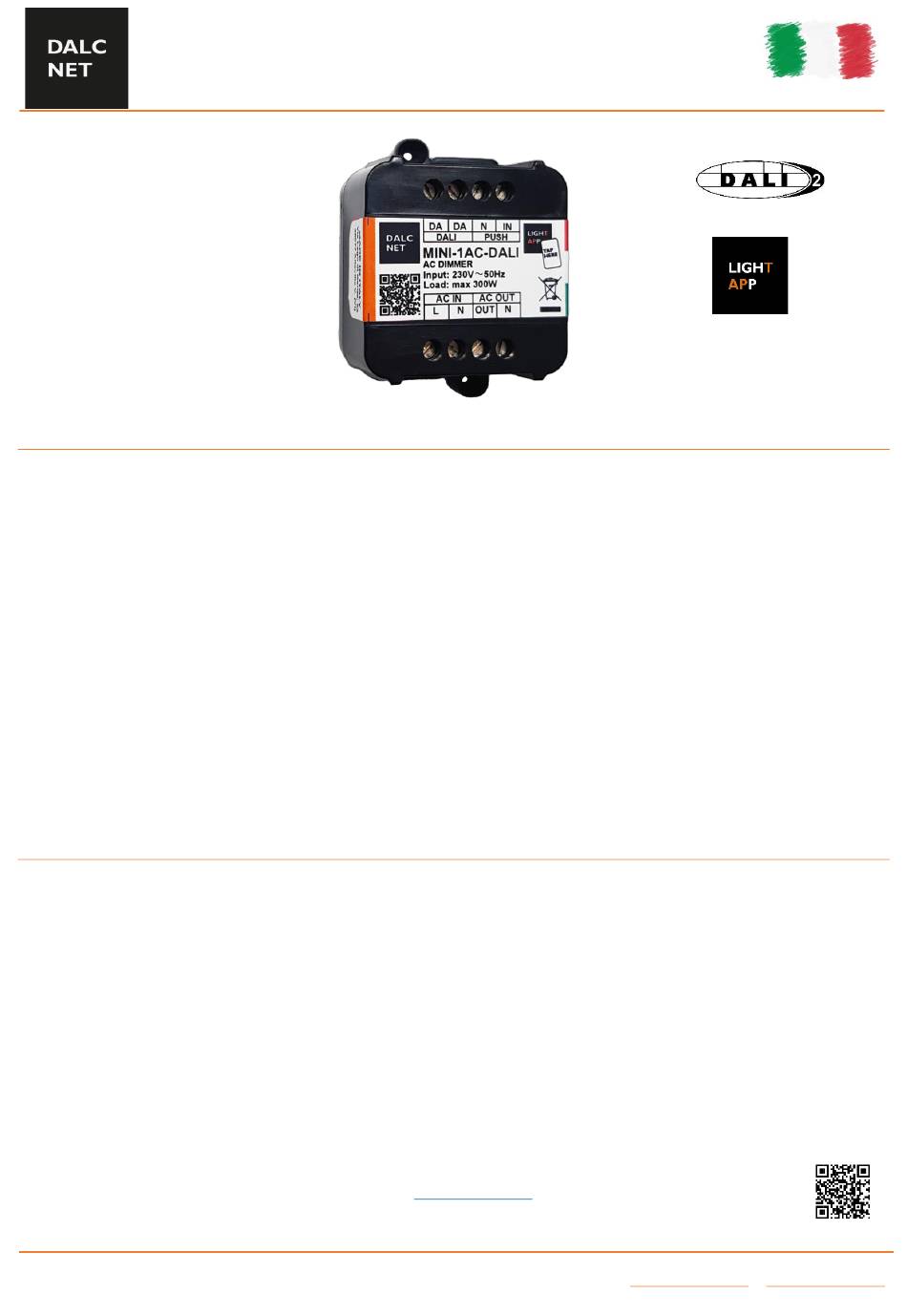

MINI-1AC-DALI is a single-channel Alternating Current (AC) Trailing Edge dimmer, which can be connected to the 230 Vac mains
power supply and is suitable for driving single-color AC loads such as incandescent and halogen lamps, LED switching lamps, LED
strips/lamps and dimmable drivers in Trailing Edge mode.
MINI-1AC-DALI can be controlled via digital DALI (Digital Addressable Lighting Interface) protocol or locally via N.O. (Normally
Open) button connected to the phase, neutral or as a dry contact. The type of wiring is recognized when it is turned on and the
dimmer is automatically configured to work with the control connected.
The AC dimmer is equipped with an internal 1 A fuse, protecting the internal circuitry, which makes the installation of an external
fuse optional. The maximum output current is 1.52 A and has the following protections: input fuse protection, output short-circuit
protection, short-circuit detection, and output open-circuit detection.
Through the Dalcnet LightApp© mobile application and smartphone equipped with Near Field Communication (NFC) technology, it
is possible to configure multiple parameters with the device turned off, including the adjustment curve, maximum / minimum
brightness levels, fade-in / fade-out time ramps.
Dalcnet LightApp
©
is free to download from the Apple APP Store and Google Play Store.
⇢ For the up-to-date manual, please consult our website
DALCNET S.r.l.
36077 Altavilla Vicentina (VI) – Italy
Via Lago di Garda, 22
MINI-1AC-DALI
Device Manual
©
Mobile App:
www.dalcnet.com
or QR Code.
www.dalcnet.com
Rev. 25/07/2024 - Pag. 1/16
Made in Italy
Tel. +39 0444 1836680
–
info@dalcnet.com
