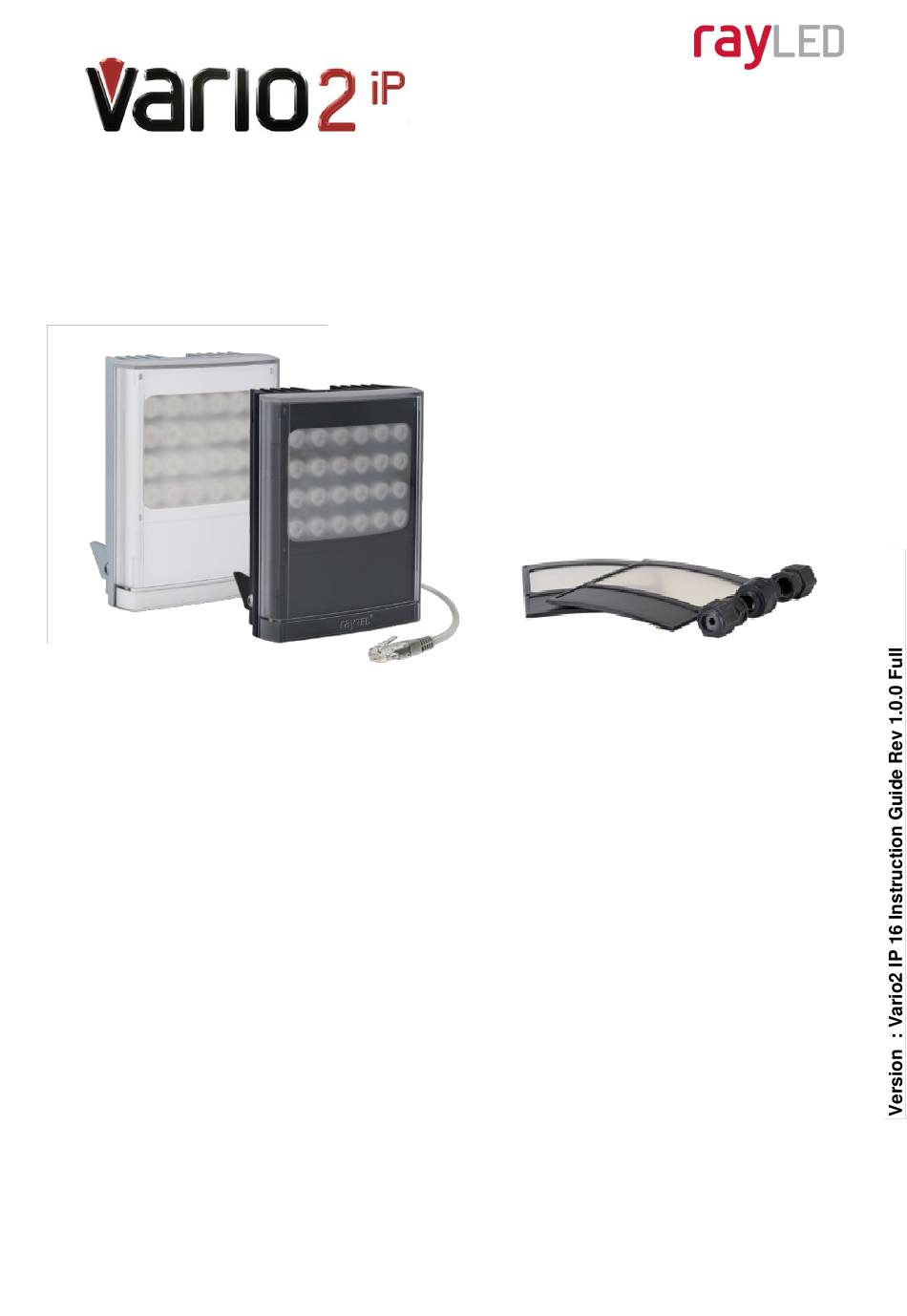

Full Installation and Setup Guide
Installation by suitably trained and qualified personnel only
Suitable for Internal and External Applications
Box Contents:
VARIO2 16 IP Illuminator - Infra-Red (IR) or White-Light (WL)
containing 35° x 10° beam angle ILS (Inter-changeable Lens System)
60° x 25° beam angle ILS
Waterproof RJ45 connector
Accessories (optional):
80° x 30° beam angle IHD
120° x 50° beam angle IHD
System requirements: PC running Windows 7 with IE9 (or equivalent) and network
access.
RayLED Global:
+33 4 58 00 15 74 • sales@rayled.com
www.RayLED.com
VARIO2 IP 16 Series
(Standard Specification)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VARIO2 IP 16 Series and is the answer not in the manual?

Questions and answers

Related Manuals for RayLED VARIO2 IP 16 Series

Summary of Contents for RayLED VARIO2 IP 16 Series

  • Page 1 Waterproof RJ45 connector Accessories (optional): 80° x 30° beam angle IHD 120° x 50° beam angle IHD System requirements: PC running Windows 7 with IE9 (or equivalent) and network access. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 2 Product Introduction VARIO2 IP is a Network Illuminator designed to connect to a suitable network and is provided with an integrated Web Interface. The RayLED Discovery Tool allows for easy identification and connection to the illuminator or you can connect directly to the illuminator via its IP address.
  • Page 3 HTTP API to control the illuminator via HTTP commands. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 4 RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 5: Basic Steps

    Lens Selection and Physical Installation (Pg. 7) Adjust interchangeable lens if required. Fix to wall, pole or camera unit using U bracket provided or other RayLED bracketry. IMPORTANT: Ensure illuminator is rated to provide required viewing distances and select correct angle...
  • Page 6 We recommend the easiest and fastest way to identify and connect to illuminators is using the RayLED Discovery Tool where the IP address can be altered or DHCP enabled. Alternatively, type the IP address of illuminator into a web browser – default is 192.168.2.80 –...

  • Page 7: Wiring

    External Output - Volt free WARNING: To maintain the IP rating of the product the multi-core auxiliary cable must be waterproofed and terminated appropriately even if it is not in use. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 8: Interchangeable Lenses: Changing The Angle

    This can be moved to the top of the unit if required. Attach illuminator to wall, housing or pole using U-bracket provided or dedicated RayLED bracketry. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 9 Notes : To maintain the IP rating of the product, any cable not in use must be waterproofed and terminated appropriately. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 10: Connecting To The Network

    We recommend the easiest and fastest way to identify and connect to illuminators is using the RayLED Discovery Tool where the IP address can be altered or DHCP enabled. Using the RayLED Discovery Tool avoids the need to have the computer and illuminator in the same network range in order to alter the IP address.

  • Page 11: Rayled Discovery Tool Basics

    The illuminator responds to multicast messages - and therefore does not need to have a valid IP address in the same network range for the RayLED Discovery Tool to find it. But it does require a valid IP address for connection and communication.
  • Page 12 Discover With the VARIO2 IP powered and attached to the same network, press and the RayLED Discovery Tool will display a list of illuminators available on the network. See instructions above on how to change IP address or enable DHCP in order to allow communication with the illuminator.

  • Page 13: Hierarchy Of Photocell Vs. Telemetry

    In order to maintain maximum security of your system, we recommend you change the passwords at the earliest opportunity (for further information, please see page 49 of full installation instructions). RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 14 To operate the illuminator via a VMS or third party application that uses the VMS + Local. RayLED API, then the illuminator mode should be set to VMS mode the illuminator will ignore Photocell and External Input triggers and VMS + Local respond only to valid VMS commands.

  • Page 15: Factory Defaults

    No, ignore group Commands command command Illuminator Mode on Trigger Power (%) 100% 100% Duration All night Duration of Input Soft Start Deterrent Pattern = SOS Frequency = Slow RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 16 External Input Type of Input = Volt Free Active State = Short Circuit / Low External Output Trigger State = Photocell Only Active State = Short Circuit / Low RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 17: Basic Web Page Functionality

    All web pages have the following information in the header bar Model Type / Lamp Name / Group Name User has access to Home Page and Diagnostics pages. Admin has access to all pages. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 18 Advanced diagnostics to enable 2 level troubleshooting Software Update Indicates current software / firmware version. Ability to upload updated software / firmware version. Log Off We recommend logging off illuminator after every session RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 19: Illuminator Web Interface Note

    After performing the steps above, refresh the illuminator home page and the longer illuminator details box will appear. Instructions for this procedure for other browsers can be found online. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 20: Ping

    Check connection and wiring of CAT5 / 6 cable to VARIO2 IP. Verify link has been established with the router / switch to which the illuminator is connected If the illuminators are correctly wired to the network, run the RayLED •...
  • Page 21 • If unit still cannot be discovered then type default IP address into browser: • 192.168.2.80 If no communication possible after above steps, please contact RayLED • for further support or consider a Hard Reset of the illuminator. RayLED Global: +33 4 58 00 15 74 •...

  • Page 22: Table Of Contents

    RayLED Discovery Tool in Depth ................25 Network Settings ..........................26 DHCP – Automatic allocation of IP address ................27 Static Network Configuration – Manual allocation of IP address ........28 RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 23 Advanced Settings ......................46 Manual Override - Countdown Duration ................. 46 External Input – Select type of Input & Active State on Input .......... 47 External Output ..........................47 RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 24 Software Update ......................... 58 Log Off ..........................60 Hard Reset Button – Located on illuminator ..............6061 RayLED APIs (VMS and HTTP) ..................6162 Troubleshooting & FAQs ....................6162 RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 25: Rayled Discovery Tool In Depth

    The illuminator responds to multicast messages - and therefore does not need to have a valid IP address in the same network range for the RayLED Discovery Tool to find it. But it does require a valid IP address for connection and communication.

  • Page 26: Network Settings

    Name. The application allows the illuminators to be configured. Network Settings To change the network settings, highlight the illuminator to be changed and press Network The “Network Configuration” screen will be shown. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 27: Dhcp - Automatic Allocation Of Ip Address

    . The illuminators IP address should automatically be updated into the required range and the illuminator can now be accessed directly from the RayLED Discovery Tool by double clicking on the illuminator from the list of discovered illuminators. RayLED Global: +33 4 58 00 15 74 •...

  • Page 28: Static Network Configuration - Manual Allocation Of Ip Address

    IP Address and Subnet Mask having selected address and press The unit will now be allocated the IP Address as entered. Refresh the Discover RayLED Discovery Tool by pressing RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 29: Name And Group Name

    Both “Name” and “Group Name” can be modified directly from the RayLED Discovery Tool or via the web interface. To change these via the RayLED Discovery Tool, highlight the illuminator you want Status to change. Then press RayLED Global: +33 4 58 00 15 74 •...
  • Page 30 “Unit Name” and “Group Name”can both be edited by entering a new value in their fields. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 31: Lluminator Status

    RayLED Discovery Tool by pressing and the updated information should be displayed. lluminator Status The RayLED Discovery Tool has two status indicators for each illuminator. The colours of these indicators change depending on the state of the illuminators as described below:- Green...

  • Page 32: Unit Details - Parameters

    This is designed to be used during technical support of the illuminator with RayLED or your supplier. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 33: Detailed Illuminator Setup: Web Interface Pages

    Log-In Page Access Log-In Page for individual illuminator by double-clicking on the illuminator from the RayLED Discovery Tool or by typing the IP address into the web browser. User Names & Passwords are case sensitive. (Max 32 characters – alphanumeric,...

  • Page 34: Home Page

    After a successful log-in, the Home Page / Manual Override Page will be displayed. You can navigate to all pages using the side navigator bar which is available on all pages. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 35 All illuminators in a group will turn on to the power setting selected. GROUP ON When button is turned OFF, illuminators will return to their normal operating mode. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 36 DETERRENT selected) into deterrent mode. The current pattern and frequency of the deterrent is displayed and can be changed on settings / groups page. Power setting of illuminator(s) in deterrent mode can also be adjusted by using slider bar. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 37: Settings / Groups

    Group and configure the deterrent mode of the illuminator. The illuminator can be configured to operate from the above inputs independently and the power level, duration and soft start function can be configured. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 38: Illuminator Mode

    The illuminator can be operated in five different modes: 1. Local 2. VMS 3. VMS + Local 4. HTTP 5. HTTP + Local These modes are selected in the illuminator mode selection box. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 39 2. VMS The illuminator will respond ONLY to third party VMS systems and any applications that use the RayLED API. The illuminator will NOT respond to photocell and telemetry events. The user CANNOT take direct manual override control through the web interface.

  • Page 40: Groups

    There is a RayLEDAPIInstaller.exe and a RayLED API Quick Start guide available to support VMS integration. HTTP Options – Additional Information : There is a RayLED HTTP Command Summary guide and a RayLED HTTP API guide available to support HTTP integration. Groups The VARIO2 IP illuminator is configured so that it can work individually or as part of a group of illuminators.

  • Page 41: Group Name

    – based on selection from Respond to Group Commands below Factory Defaults: Photocell Lamp Control External Input Lamp Control Respond to Group Commands RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 42: Lamp Mode On Trigger

    Photocell and/or External Input. For both the Photocell and the External Input, the illuminator can either be programmed to stay off or to turn on. In addition, the External Input can activate the Deter mode – which can be configured below. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 43: Power

    Alternatively, a specific time period can be selected using the slider bar. The illuminators will operate immediately and the timer duration starts from the end of the External Input signal. The External Input can be reactivated within the timer RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 44: Soft Start

    The length of time of the ramp up depends on power level selected. (Max 10 seconds for 100% power) Factory Defaults: Photocell External Input Deterrent Pattern & Frequency There are 3 selectable deterrent patterns available if Deter Feature selected from Illuminator Mode on Trigger: RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 45 The illuminator slowly ramps up and down from 100% to 20% Hi-Lo The illuminator alternates between 100% and 20% power Factory Default: There are 3 selectable deterrent speeds available; Slow, Medium, Fast Factory Default: Slow RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 46: Advanced Settings

    There are 8 selectable durations from a drop down list for the Countdown Duration of the Manual Override feature on the Home Page. This determines the amount of time that the user can manually override the illuminator or group of illuminators. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 47: External Input - Select Type Of Input & Active State On Input

    Input is closed, short circuit. Factory Default: Volt free Factory Default: Short Circuit/Low External Output The External Output is a volt free open / short output. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 48: Photocell Sensitivity

    There is a high level of hysteresis and an in-built delay incorporated to avoid switching ON / OFF in marginal lighting conditions. SAVE WARNING: For changes to take effect, the button must be pressed RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 49: Access / Passwords

    All passwords are case sensitive. Keep a note of all passwords in a safe place. Defaults: User User name Password Administrator admin password Operator user password Only the Administrator can change passwords. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 50 If you are an Administrator, you will have to use the Hard Reset button on the illuminator – refer to Hard Reset instructions on page 61. This will restore the illuminator to factory defaults which includes user names and passwords. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 51: Network

    15 – alphanumeric. Enable DHCP You may enable DHCP if your network is compatible and then IP addresses will be allocated automatically without creating duplicates. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 52: Manual Ip Address

    After a network change the system will reboot to ensure that all changes have been applied. The Reboot Screen is shown to instruct the user on how to access the illuminator after the new network settings have been applied. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 53 Warning: We strongly recommend that IP addresses are changed via the RayLED Discovery Tool. This is the safest way to ensure that the connection to the illuminator is not lost as a result of setting an invalid IP address. All other settings remain unchanged.

  • Page 54: System Information

    192.168.2.80, which will likely be out of the normal range of IP addresses on your network. See Pages 10 onwards on how to set the IP address of your illuminator. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 55: Reboot / Restart Illuminator

    A reboot / restart is generally recommended if a system becomes unresponsive or you want to ensure settings have been reloaded correctly. During the reboot / restart process the illuminator may come on / flash for a short period. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 56: Diagnostics

    Indicates if photocell status is day or night Ext Input Status Indicates if external input is being received (active) or not (inactive) Auxiliary Output Status Indicates if external output is active (closed) or not (open) RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 57: Advanced Diagnostics

    Note: Information on this page is NOT constantly updated or refreshed automatically. To refresh the page, press Function Key F5 or select the page again from the navigation bars on the left. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 58: Software Update

    This page indicates the current version of the software / firmware and also enables the software / firmware to be updated over the network. To upload a new version of software / firmware, please contact RayLED to receive the latest version.
  • Page 59 Operator user name and password • Admin user name and password • All other settings will revert to the Factory Defaults of the new software / firmware version uploaded. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 60: Log Off

    Log Off We recommend after using the illuminator web interface that users log off using the Log Off Page. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...

  • Page 61: Hard Reset Button - Located On Illuminator

    Release the Reset button. 5. Replace the baseplate securely to ensure unit remains waterproof. The illuminator can now be discovered using the RayLED Discovery Tool and can be configured as normal following the instructions in this manual. Be aware that the IP address will have been restored to factory default, 192.168.2.80.

  • Page 62: Rayled Apis (Vms And Http)

    RayLED APIs (VMS and HTTP) The RayLED Network Illuminator has been designed such that it can be integrated into 3 party systems such as a VMS, BMS etc. as well as receiving HTTP commands and RayLED have suitable APIs to support such integrations. Please contact RayLED to discuss your particular requirements.
  • Page 63 “Yes, Receive Only” or “Yes, Send and Receive”. Ensure that if an external trigger is used then that unit is set to “Yes, Send and Receive”. Ensure that override function is not running on the illuminators web interface. RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
  • Page 64 Version : Vario2 IP 16 Instruction Guide Rev 1.0.0 Full RayLED Global: +33 4 58 00 15 74 • sales@rayled.com www.RayLED.com...
