rontec 8546 Assembly Instructions

Assembly instructions

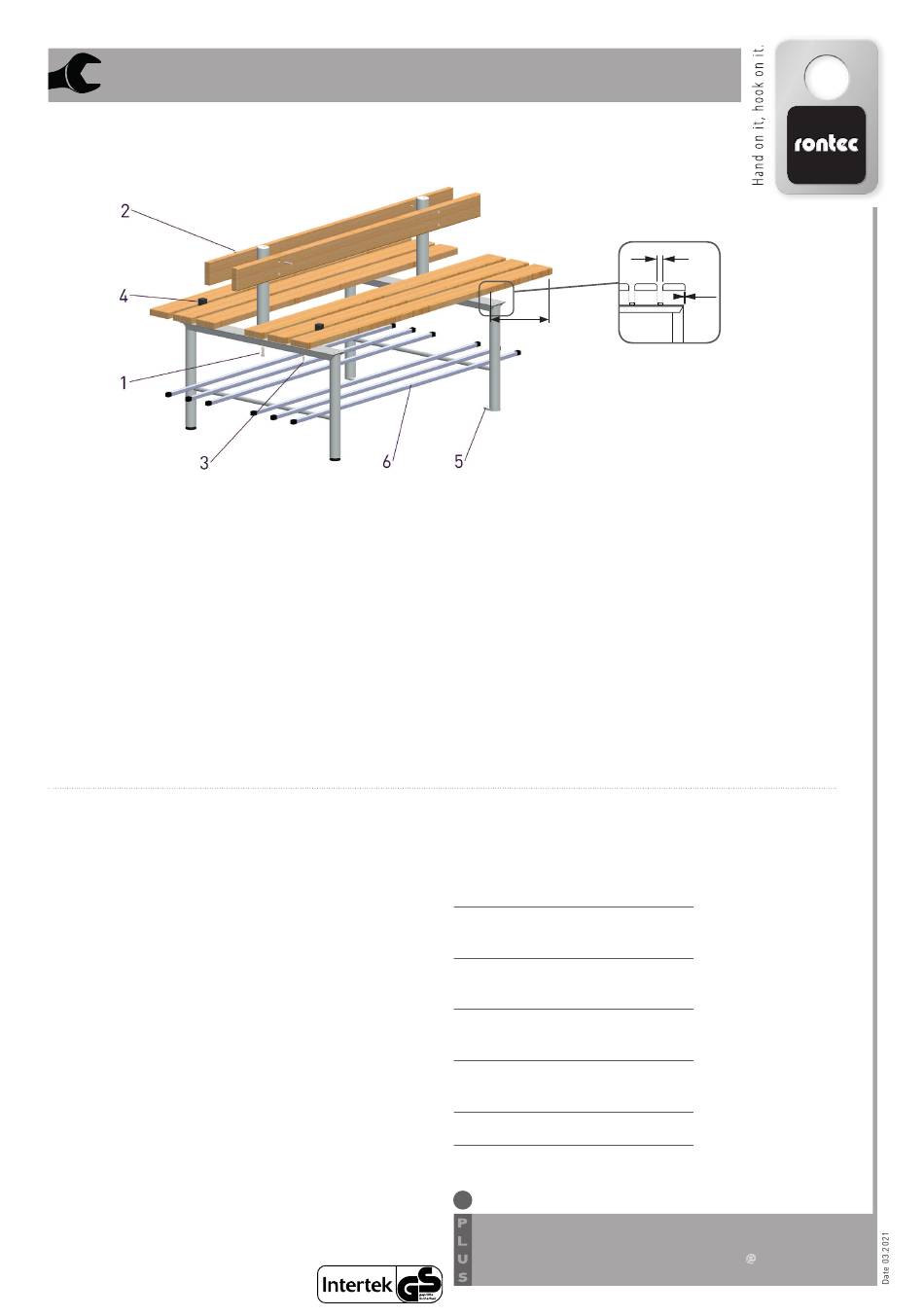

(1) Screwing the standpipes to the bench frames
(2) Mounting of pre-drilled backrests to standpipe
(3) Fastening of bench supports with the help of spacers
(4) - 250 mm is the distance from the axis of the outer bench frame to the outer edge of the bench support
- 7 mm is the distance between the front edge of the bench support and the front edge of the bench frame
(5) D epending on the floor conditions, countersunk screws 6 mm can be used for the floor fastening, for examp-
le (procurement on site)
(6) I n the case of a version with shoe rack (model 8517), the shoe rack rods supplied are 50 mm shorter per
side than the bench supports. For assembly, the shoe rest bars must first be placed lightly on the clamping
bushes and aligned. When finally tightened (e.g. with plumber´s wrench), the crossbar must be protected
against damage (e.g. scratching). To prevent bending of the crossbars during pressing, a suitable support
(e.g. wooden block) can be used on site. Once the shoe support bars have been pressed down, they can no
longer be moved.
We have included the following assembly material for you to assemble the benches:
(1)
Cylinder head screw M8 x 30 mm with
spring lock washer and washer
(2) Countersunk head screw with ISK M6 x 33 galv.
With the back spline
(2a) Countersunk head screw with ISK M6 x 33 for
backrests made of aluminum profile
(3) Wood-thread screw 5 x 20 mm (e.g. Spax ®Assy)
(3a) Hald-round head screw M5 x 16 mm for bench
supports made of aluminum profile
(4)
Wood spacer 25 x 25 mm
Required tools:
Assy bit, Allen wrench 5 and 6, possibly 3 (for 3a)
changing bench 8546/47
250
mm
Quantity:
rontec GmbH Metallwerke
Gottlieb-Wolfer-Str. 8
73770 Denkendorf
Germany
25 mm
7 mm
Expert telephone: +49 (0) 711 77396-5
Fax: +49 (0) 711 77396-99
Fast answer: info @ rontec.de
www.rontec.de
