rontec 8528 Assembly Instructions

Assembly instructions

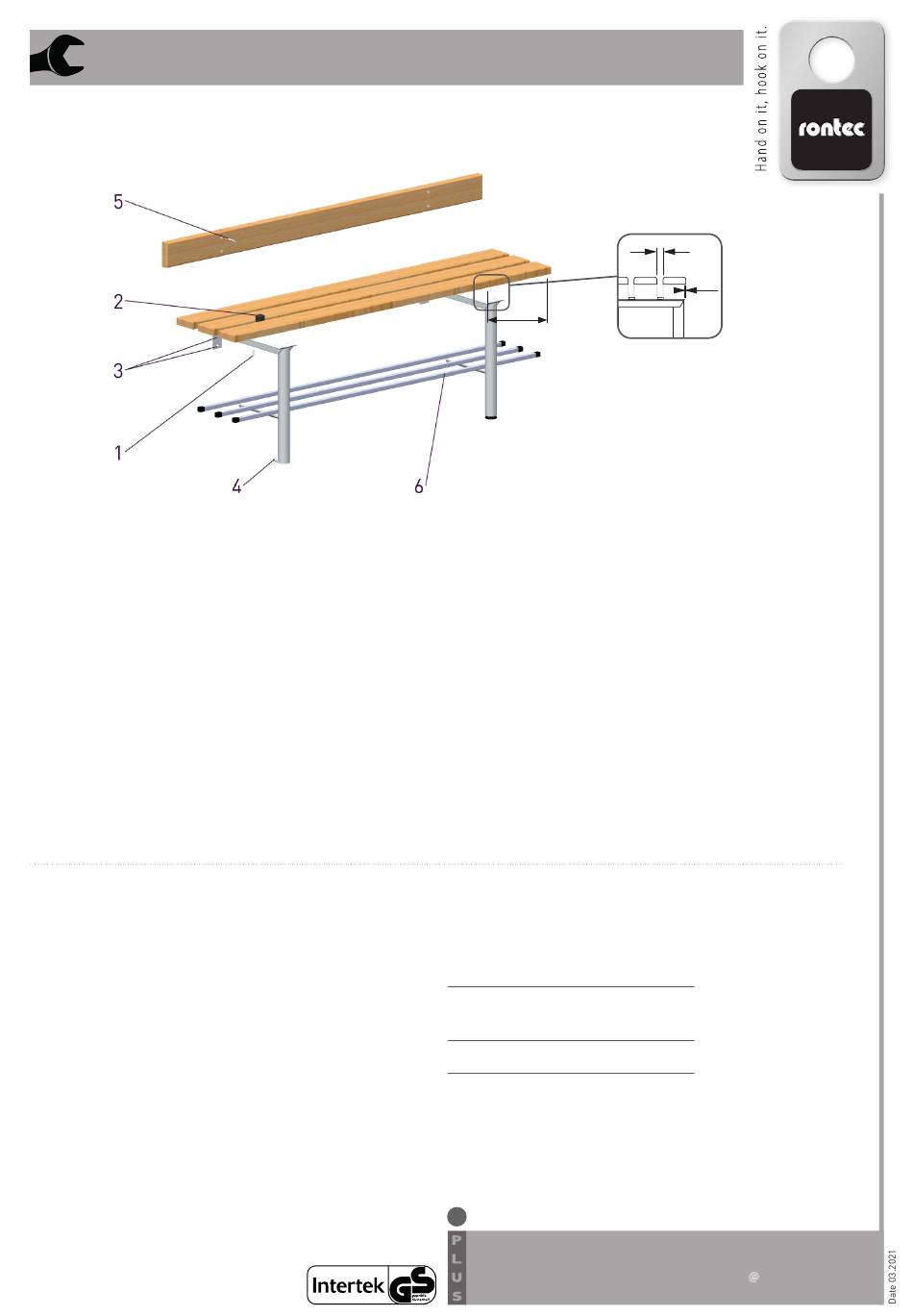

(1) Fastening of bench supports with the help of spacers
(2) - 250 mm is the distance from the axis of the outer bench frame to the outer edge of the bench support
- 7 mm is the distance between the front edge of the bench support and the front edge of the bench frame
(3) Wall mounting on a solid masonry can be done, for example, with dowel and screw 6 mm Ø
(procurement on site).
(4) D epending on the floor conditions, countersunk screws 6 mm can be used for the floor fastening, for examp-
le (procurement on site)
(5) Wall mounting of pre-drilled backrests on solid masonry can be done, for example, with dowels and screws
6 mm Ø (procurement on site).
(6) I n the case of a version with shoe rack (model 8529), the shoe rack rods supplied are 50 mm shorter per
side than the bench supports. For assembly, the shoe rest bars must first be placed lightly on the clamping
bushes and aligned. When finally tightened (e.g. with plumber´s wrench), the crossbar must be protected
against damage (e.g. scratching). To prevent bending of the crossbars during pressing, a suitable support
(e.g. wooden block) can be used on site. Once the shoe support bars have been pressed down, they can no
longer be moved.
We have included the following assembly material for you to assemble the benches:
(1) Wood-thread screw 5 x 20 mm (e.g. Spax ®Assy)
(1a) Hald-round head screw M5 x 16 mm for bench
supports made of aluminum profile
(2) Wood spacer 25 x 25 mm
Required tools:
Assy bit or Allen wrench 3 (for 1a)
changing bench 8528/29
250
mm
Quantity:
rontec GmbH Metallwerke
Gottlieb-Wolfer-Str. 8
73770 Denkendorf
Germany
25 mm
7 mm
Expert telephone: +49 (0) 711 77396-5
Fax: +49 (0) 711 77396-99
Fast answer: info @ rontec.de
www.rontec.de
