LIONEL
®

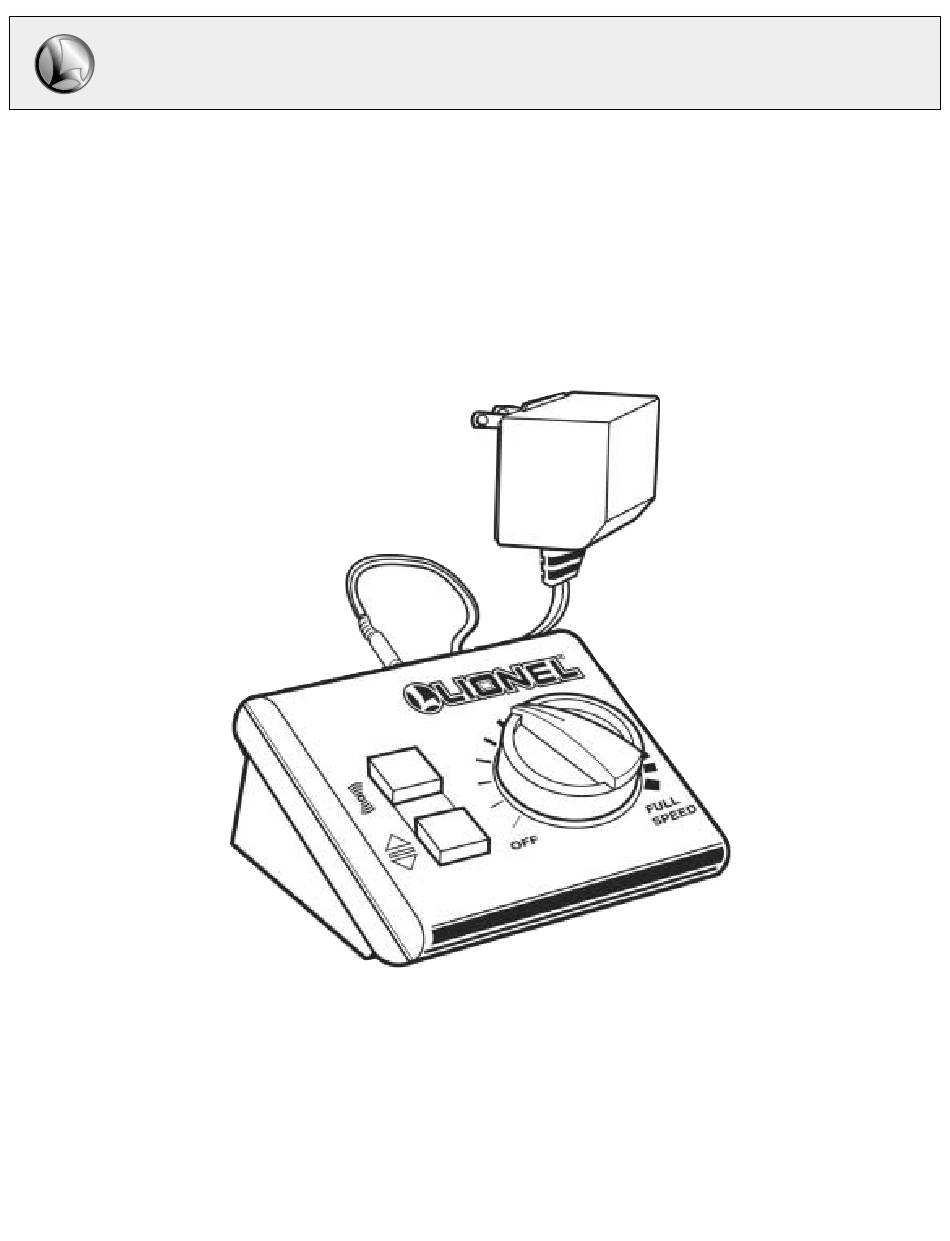

1035 ACCESSORY POWER SYSTEM
C
ongratulations on your purchase of the Lionel 1035 1.2-amp AC
accessory power system with power pack.
Originally offered as a track power supply, this system will now give
you extra power to operate accessories, lights, and other nontrain items
on your Lionel railroad.
Its variable power control is ideal for controlling illumination or for
dedicated service to a distant accessory. It's powerful enough to run
1.2-AMP AC
CAUTI O N—ELECTRI C ALLY OPERATED PRODUCT
NOT RECOMMENDED FOR CHI L DREN UNDER EI G HT YEARS OF AGE. AS WI T H ALL ELECTRI C PRODUCTS, PRECAUTI O NS
SHOULD BE OBSERVED DURI N G HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
TRANSFORMER RATI N GS- I N PUT: 120 VAC 60 HZ ONL Y .
AC OUTPUT: 16V, 20VA.
one or two larger accessories.
Just follow the enclosed instructions and you'll have a quality, afford-
able solution to your railroad's power-hungry needs. The UL-listed
power pack (Lionel part no. 6-10-2860-020) provides 16 VAC, has built-
in overload protection, and delivers 20 watts through the controller to
your accessories.
