Fidelix FX-WMBUS-R-A Series Installation Instructions

Fidelix FX-WMBUS-R*-*-*-Ax-* installation instructions

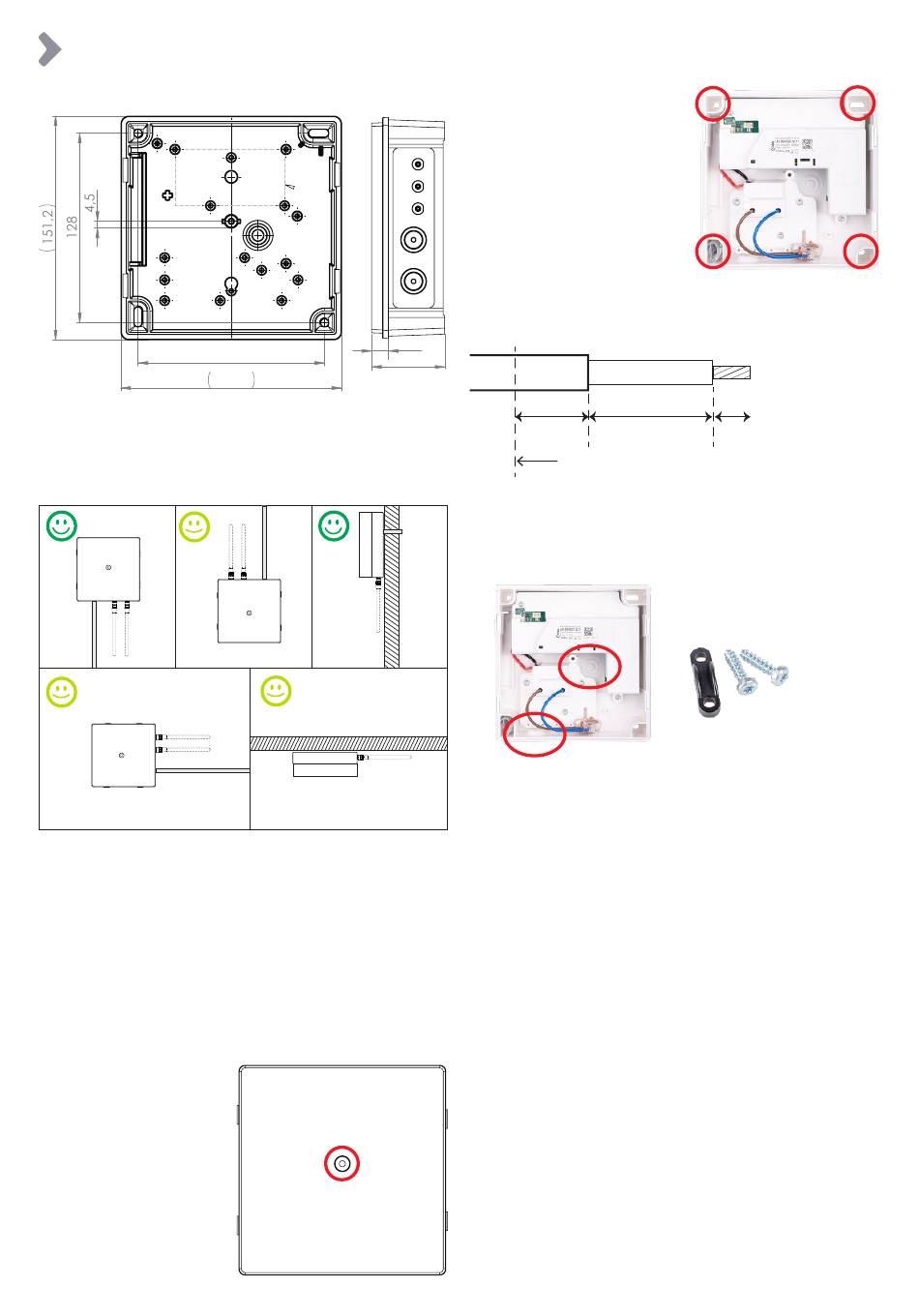

Dimensions:
Installation location and direction:
It is recommended to install repeaters to the wall, but they can
also be installed to the ceiling. In case of external dipole antennas
attached directly to the repeater, it is highly recommended to install
the repeater so that antennas are pointing downwards:
Installation:
230 VAC versions installation must only be carried out by authorised
installers according to the relevant electrical safety regulations.
Appropriate disconnect device shall be used as part of the building
installation. It should be close to the device and easily accessible to
the user. For example: Power supply cable with socket. Note that
earth (PE) is not required.
The unit must have a continuous power
supply with movement detectors or timers is not permitted.
1. Find a suitable place to install
the repeater.
2. Unscrew the screw (marked
with a red circle on the image
on the right) and remove the
cover by pushing the clips at
the both side of the cover.
The screw is a Security Torx
T20H screw (with a small pin in
the middle).
126
149,2
CEILING
supply. Lighting power
www.fidelix.com
3. Mark the holes and pre-drill
(depending on the material). Mount
the device by using 4 screws.
4. Strip the connection cable according to the following diagram:
11,4
49,4
20 mm
Cable inlet inner edge
5. Thread the power supply cable through the cable inlet. Use either
inlet from the back of the repeater or the side one. Connect the 230
VAC to the two connectors.
Note: 230 VAC installation must be done by authorised installers
according to the relevant electrical safety regulations!
WALL
6. Make sure to use strain relief if side inlet is used (included in the
package).
7. Connect power to the unit.
FX-WMBUS-RX4-M-LR-Ax-X: A LED will start blinking slowly at
first and then quick flashes for every packet it retransmits.
All other repeaters: You will hear 3 beeps when it starts up, if
another beep is heard inside of a few seconds (~5s) after the first
beeps, there is problem with the repeater. This may indicate for
instance damage endured during transport or installation.
A LED will start blinking once for every packet the repeater
retransmits.
8. Fit the cover and secure it by using the screw (circled in red in the
image on the left).
Steps 9 and 10 (on the next page) are only valid for repeaters with
external antenna(s) (FX-WMBUS-R4-M-LR-Ax-X or FX-WMBUS-
RX4-M-LR-Ax-X).
30-50 mm
10-12 mm
