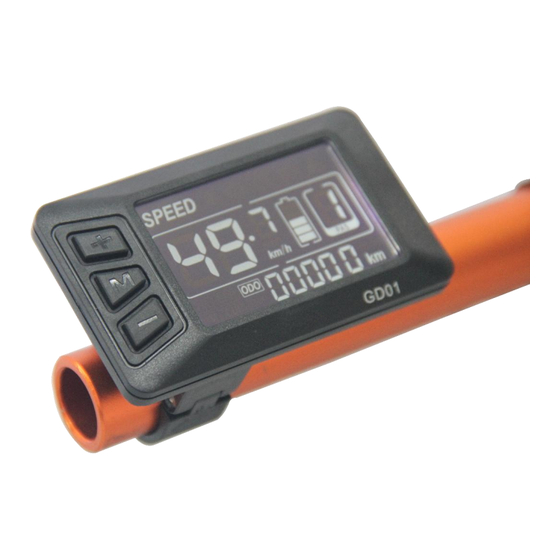

- Page 1 Changzhou Gaide Intelligent Technology Co.,Ltd Manual GD01 Ebike Intelligent Display Address: NO.202 Tanggoutou Road , Yaoguan Town, Jingkai District, Changzhou city, Jingsu Province Website：www.czgaide.com...
- Page 2 1. Material&Dimension 1) Material Caser and Cover and Press button: ABS, LCD window: PMMA 2)Outside and mounting dimension(mm) 3) Installation ●Install the display in the middle of handlebar, then adjust to suitable angle, install the press button to left side ofhandlebar. ●Power off the device, connect the device to controller.
- Page 3 2. Overview of GD01 UART protocol: Equipped with independent press buttons Speed： Real-time SPEED kmh/mile： Kmh/MPH according to habit Battery level： Indicates the battery level in real time Head light control： Press button for 3 seconds to power on/off Back light adjustment：...
- Page 4 Assist level： From P to 7, press button to change assist level. Distance： ODO/Trip/Driving duration Error code： Please refer to appendix table 1 for definition 6km mode： In this mode, it will display on the screen 。 Parameter setting： Set parameters, such as: wheel size, speed limit etc 3.
- Page 5 4. Press button definition GD01 uses independent press button, in total three buttons: Power DOWN “ ” “ ” “ ” 5. Operation instructions Power ON/OFF When the power is off, Long press （ Power） during 3 seconds ， screen will display all contents and start to normal...
-
Page 6: Parameter Setting
4)Assist level Short press to change assist level， default value is level 1 5) Head light control Long press for 3 seconds turn on/off the head light。 6) 6km mode When the bike is stopped, long press , will enter 6km/h mode, the speed will be 4.5~7.5km/h according to different road conditions, “... - Page 7 short press will switch from 1 to 3,Level 3 is lightest. Level 2 is default value. P02-kmh/MPH： Short press to Switch kmh/MPH. P03-Working voltage： short press to switch 24V,36V,48V, Default value is 36V. P04-Auto shutdown time: short press to switch from 0 to 60, it is the time(in minutes) to shut down the screen automatically if no operation 0 means never shut down, Default value is 10 minutes P05-Number of Assist levels：...
- Page 8 short press to set the speed limit from 10 to 41km/h. This feature is reserved: display P09, invalid. This feature is reserved: display P10, invalid. P11-assist sensitivity setting： short press to switch from 1 to 24. P12-assist starting power setting: short press to switch from 0 to 3.
-
Page 9: Specifications
4) Leakage current after power off: <1uA 5) Current supply to controller:50mA 6) Working Temperature： -18~65℃ Storage temperature： -30~80℃ 8. Error code definition When an error appears, GD01 will notice users by different codes, please refer to table 1 for different codes: Code (Decimal) Signification Normal... -
Page 10: Warranty
A： Find a nearest shop to get repair 11. Warranty 1 year of warranty for quality issue except frame is broken. 12. Version This is a universal manual for GD01.It could be customized by each client. Please confirm all details before purchasing.
Need help?
Do you have a question about the GD01 and is the answer not in the manual?
Questions and answers

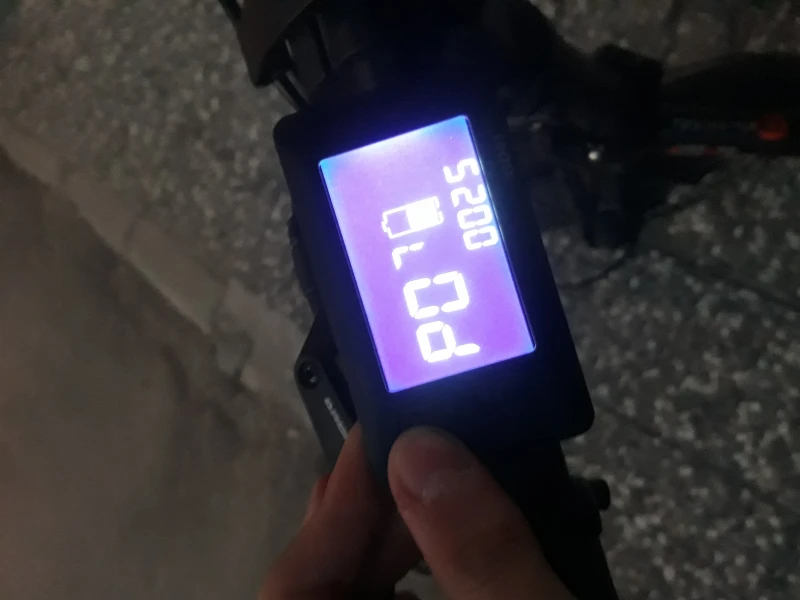

Hello, I cant change my speed limit on my gd01 e bike display it stays still on 25km/h
