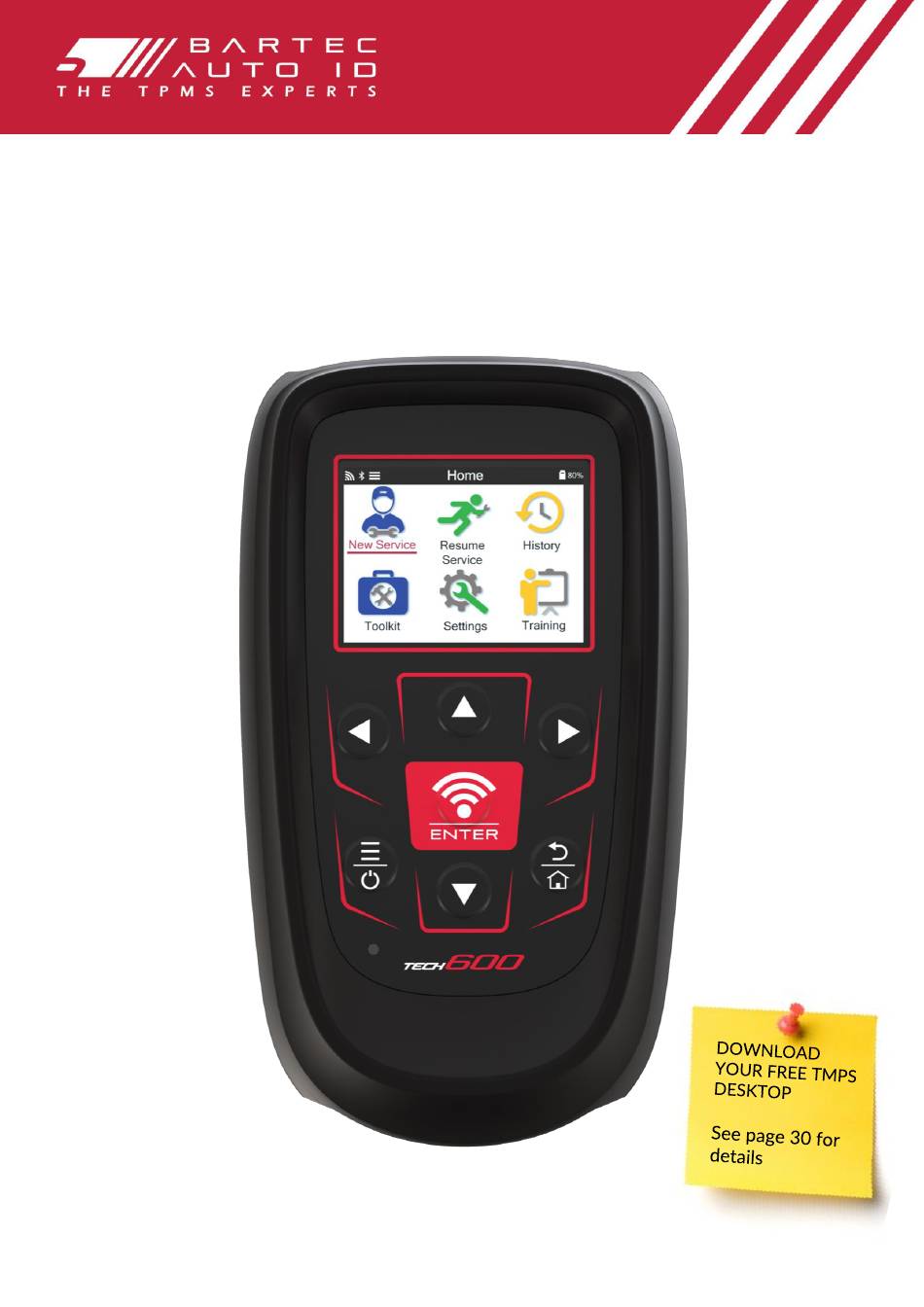

- Page 1 TECH600 Tyre Pressure Monitoring System Tool User Guide Bartec Auto ID Ltd. JUNE 2024 V2.3...
-
Page 2: Foreword
JUNE 2024 V2.3 FOREWORD Thank you for choosing the TECH600. This manual will help you get your tool up and running and explains how to get the most out of all its great features. PLEASE ENSURE THAT YOUR TOOL IS FULLY CHARGED BEFORE YOU FIRST USE IT AND BEFORE REGISTRATION. -
Page 3: Table Of Contents
TECH600 User Guide JUNE 2024 V2.3 LIST OF CONTENTS FOREWORD ......................2 LIST OF CONTENTS ....................3 IMPORTANT NOTICES ..................4 SAFETY PRECAUTIONS ..................5 TOOL LAYOUT ....................... 7 KIT COMPONENTS ....................8 CHARGING TOOL ....................9 POWER ON/OFF SEQUENCE ................9 REGISTRATION .................... -
Page 4: Important Notices
TECH600 User Guide JUNE 2024 V2.3 IMPORTANT NOTICES SAFETY DEFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following form. DANGER: This means you may risk possible loss of life. -
Page 5: Safety Precautions
Unauthorised disposal of waste electrical and electronic equipment is punishable by law with appropriate penalties. DISPOSING OF BATTERIES • The TECH600 contains a Lithium Polymer rechargeable battery which is not accessible to the user. WARNING • Risk of fire or explosion if the battery is replaced by an incorrect type. - Page 6 12 months as of the date of invoice (parts and labour) only if the product has been correctly used. The serial number must stay readable, and proof of purchase must be retained for presentation upon request. Bartec Auto ID Ltd Unit 9 Redbrook Business Park...
-
Page 7: Tool Layout
TECH600 User Guide JUNE 2024 V2.3 TOOL LAYOUT Display Navigation keys On/Off: Hold down for a few seconds. Menu: On some screens more options are available from the Quick Menu. Enter/Test: Commence a TPM test, only works on vehicle audit screen. -
Page 8: Kit Components
USB cable • Tool case IDENTIFYING KIT COMPONENTS AND FEATURES The TECH600 tool is battery operated and generates a low-frequency magnetic field to activate tyre sensors. It receives UHF radio signals from the tyre sensors typically at 434MHz. TPMS activation... -
Page 9: Charging Tool
TECH600 will save all of the TPM Data and then power itself off. Only use the power supply or USB cable that is included in the TECH600 tool kit to charge this tool. The use of unapproved power supplies may damage it and will void the tool warranty. -
Page 10: Registration
TECH600 User Guide JUNE 2024 V2.3 REGISTRATION Registration enables the notification and download of software updates to the tool. When first powered on, the tool will display the following screen: To register the tool, navigate to the Bartec TPMS Desktop website at tpmsdesktop.eu... - Page 11 TECH600 User Guide JUNE 2024 V2.3 Select ‘Register’ to create a new account. The following screen will be displayed: It is important to fill in all fields completely and accurately. This information will help Bartec remain in contact regarding updates and other important TPMS information. Choose a username (without a space) and password.
- Page 12 JUNE 2024 V2.3 After login, the main screen of the TPMS Desktop is displayed. Connect the TECH600 to the computer using the supplied USB cable. The TPMS Desktop will automatically register the tool and will display the message: “Tool successfully registered”.
-
Page 13: Connecting To Wifi
During the update, do not disconnect the BT OBDII module from the vehicle, turn off the TECH600, or otherwise stop the installation of the update until instructed to do so. When instructed, disconnect the OBDII module from the vehicle. The TECH600 will display an “installation complete”... -
Page 14: Home Menu
TECH600 User Guide JUNE 2024 V2.3 HOME MENU New Service Used to start a new service, for example: diagnose and repair TPMS issues, read DTCs and measure tyre tread depths. Resume Service Used to resume the last service. History Used to call up all stored services, searching by either registration or model. -
Page 15: New Service
TECH600 User Guide JUNE 2024 V2.3 NEW SERVICE When starting a New Service, firstly select the vehicle that requires TPMS maintenance. Scroll through the menus to select the correct manufacturer, model, and year to see all available service functions. 15 |... -
Page 16: Service Menu
TECH600 User Guide JUNE 2024 V2.3 SERVICE MENU After selecting the vehicle, all the available options for the preselected MMY will be displayed. These functions will differ depending on the vehicle and whether the TPMS system is direct or indirect. -
Page 17: Check Sensors
TECH600 User Guide JUNE 2024 V2.3 CHECK SENSORS Check Sensors is located within the Check function of the Service menu if the vehicle is a direct TPM system. Use this service to read the installed sensors before continuing with further steps. - Page 18 TECH600 User Guide JUNE 2024 V2.3 After reading a sensor, the tool will display the data read back from the sensor, this will include the pressure reading, battery life and condition and also the sensor status. The most common states are listed below: Successful Sensor Read The sensor is operating correctly.
- Page 19 TECH600 User Guide JUNE 2024 V2.3 BATTERY LIFE For some vehicles the tool is capable of calculating the remaining battery life of the sensor. This allows for upcoming issues to be identified early to avoid revisits for the same vehicle.
-
Page 20: Obd Diagnostics
TECH600 User Guide JUNE 2024 V2.3 OBD DIAGNOSTICS OBD Diagnostics is located within the Check function of the Service menu. OBD Diagnostics reads information from the vehicle such as the VIN, Diagnostic Trouble Codes (DTCs), and the IDs of the sensors. - Page 21 TECH600 User Guide JUNE 2024 V2.3 VIEW DTCs: DTCs are grouped into Current DTCs and Historic DTCs, use the left and right keys to select between the two. DTCs are listed with the DTC Code and the Failure Type Byte (FTB) along with a description (if supported).
-
Page 22: Wheel & Tyre
TECH600 User Guide JUNE 2024 V2.3 WHEEL & TYRE Wheel & Tyre is located within the Check function of the Service menu. Use this service to Input the tyre tread measurements. To enter tyre tread depths, select the Wheel & Tyre option, followed by the tyre type: All season, summer, or winter. -
Page 23: Programmable Sensor
TECH600 User Guide JUNE 2024 V2.3 After entering the measurement for each wheel, when prompted select one of the following statuses: Damaged Tyre Aged Tyre Damaged Wheel Questionable Condition Worn Tyre PROGRAMMABLE SENSOR The “Program Sensors” on the service menu enable the function of programming aftermarket replacement sensors like the Bartec Rite-Sensor, HUF IntelliSens, Alcar Sensors, Alligator Sens. - Page 24 TECH600 User Guide JUNE 2024 V2.3 Create ID Used to create a single sensor with a new ID. Can be repeated as many times as requested. The ID needs to be relearned to the vehicle’s ECU. The following pages will describe this procedure.
-
Page 25: Relearn
It can take up to 20 minutes to relearn the sensor IDs. OBD RELEARNS If the preselected vehicle is supported, relearn allows the TECH600 to directly program the vehicle’s ECU with sensor IDs. OBD can be connected when all sensors have been successfully read and the message “All Sensors OK”... - Page 26 TECH600 User Guide JUNE 2024 V2.3 As well as the pressure and temperature, we also display the “mode” of the sensor. In some cases, the mode cannot be changed and isn’t important, but in some cases, it will need to be changed in order for the relearn to work.
-
Page 27: Technical Information
TECH600 User Guide JUNE 2024 V2.3 TECHNICAL INFORMATION Gives detailed information about replacement parts, service kits, sensors, vehicles, and service tips. Sensors do not have to be read to access the following information. View Replacement Parts Used to show all Replacement Sensor part numbers that can be fitted to the preselected MMY. -
Page 28: Vehicle Data
TECH600 User Guide JUNE 2024 V2.3 VEHICLE DATA Sensors and OBD need to have been read for data to be shown. The vehicle data gives direct access to screens that display the Vehicle Data. This makes it convenient to check all sensor and OBD data. It also contains customer data and gives the option of sending data. -
Page 29: Settings
TECH600 User Guide JUNE 2024 V2.3 SETTINGS Connections Connect to a Bluetooth OBDII Module, TPMS Desktop, and Wi-Fi. General Check and update the time and date on the tool, and change the language displayed. Sound and Vibration Enable or disable tool sounds or vibrations. -
Page 30: Tpms Desktop
PC. The TPMS Desktop is designed to work with the following Bartec tools; TECH400, TECH500, TECH600, TECH300, as well as the TAP100/200. The TECH600 will connect wirelessly to the TPMS Desktop using Bluetooth technology. While this will work easily with most computers, some have software that can be difficult to set up. - Page 31 TECH600 User Guide JUNE 2024 V2.3 VEHICLE LIST Browse the extensive vehicle and sensor database. Search by make, model, and year to quickly find the data needed: OBD location, TPMS relearn, sensor information – it’s all there with TPMS Desktop. Plus, the database is regularly updated.
-
Page 32: Commercial Vehicles
This option is only available after the purchase of an upgrade code from https://www.bartecautoid.eu/lizenzen/nfz-upgradelizenz-tech600 After purchasing you will receive the following voucher: Commercial Vehicle Upgrade License for Bartec TECH600 - extends the TECH600 to include commercial vehicles - 9B00E856-BAAB-416C-A644-086097B9F3A4 To redeem the voucher: Launch the TPMS Desktop www.tpmsdesktop.eu... - Page 33 TECH600 User Guide JUNE 2024 V2.3 SERVICING COMMERIAL VEHICLES Once commercial vehicles has been unlocked a new service can be started. Make the vehicle selection using the MMY selection in New Service, followed by the number of axles and the wheel configuration.
- Page 34 TECH600 User Guide JUNE 2024 V2.3 COMMERCIAL VEHICLE SCAN Some older commercial vehicles may be fitted with any number of unidentifiable aftermarket TPM Systems. The commercial vehicle scan solves this using the identify scan. After the vehicle is selected, using the coverage, it will determine the TPM System by searching all retrofit sensors and identify the system installed.
-
Page 35: Appendix
APPENDIX APPENDIX A: Vehicle Identification Number (VIN) When using the TECH600 tool, it is important to verify the Model Year to help insure looking for that proper sensor and using the proper vehicle COMs when necessary. By using the vehicle’s VIN and locating the 10 digit from the left it is possible in most cases accurately determine the vehicle’s Model Year. - Page 36 “Park”, as otherwise, it will not work on the vehicle. The TECH600 tool has the ability to perform the necessary mode change. If a sensor is shown as “Ship”, “Test” or “Off” and the relearn toolkit provides the option “Set Sensor to Park Mode”, please use this option to change the sensor mode into the correct one:...
- Page 37 Bluetooth settings. Tick the boxes as seen on the Options tab above. Press OK when finished. Start the TPMS Desktop application and go to Settings. Open the Bluetooth section: the PC/Laptop should be connectable and discoverable for the TECH600. 37 | P a g e...
- Page 38 TECH600 User Guide JUNE 2024 V2.3 APPENDIX F: SENSOR STATES AND DEFINITIONS Failed Sensor Read The sensor failed to read. This could be a result of a sensor that is no longer functional due to a flat battery or could be an incorrectly installed sensor. In...
- Page 39 TECH600 User Guide JUNE 2024 V2.3 Depleting Battery The sensor battery is low, it is recommended to replace the sensor. Incorrect mode The sensor is in the incorrect mode of operation for the vehicle. Use the Menu key to place the sensor into the correct mode.
-
Page 40: Technical Specification
125KHz - 15uT @ 8cm maximum magnetic field Simplified EU Declaration of Conformity Bartec Auto ID Ltd hereby declares that this device is in compliance with the essential requirements and other provisions of Directive 2014/53/EU (RED). The full text of the EU Declaration of Conformity is available at: DECLARATION OF CE CONFORMITY TECH600450 2021_.English.Signed.pdf...
