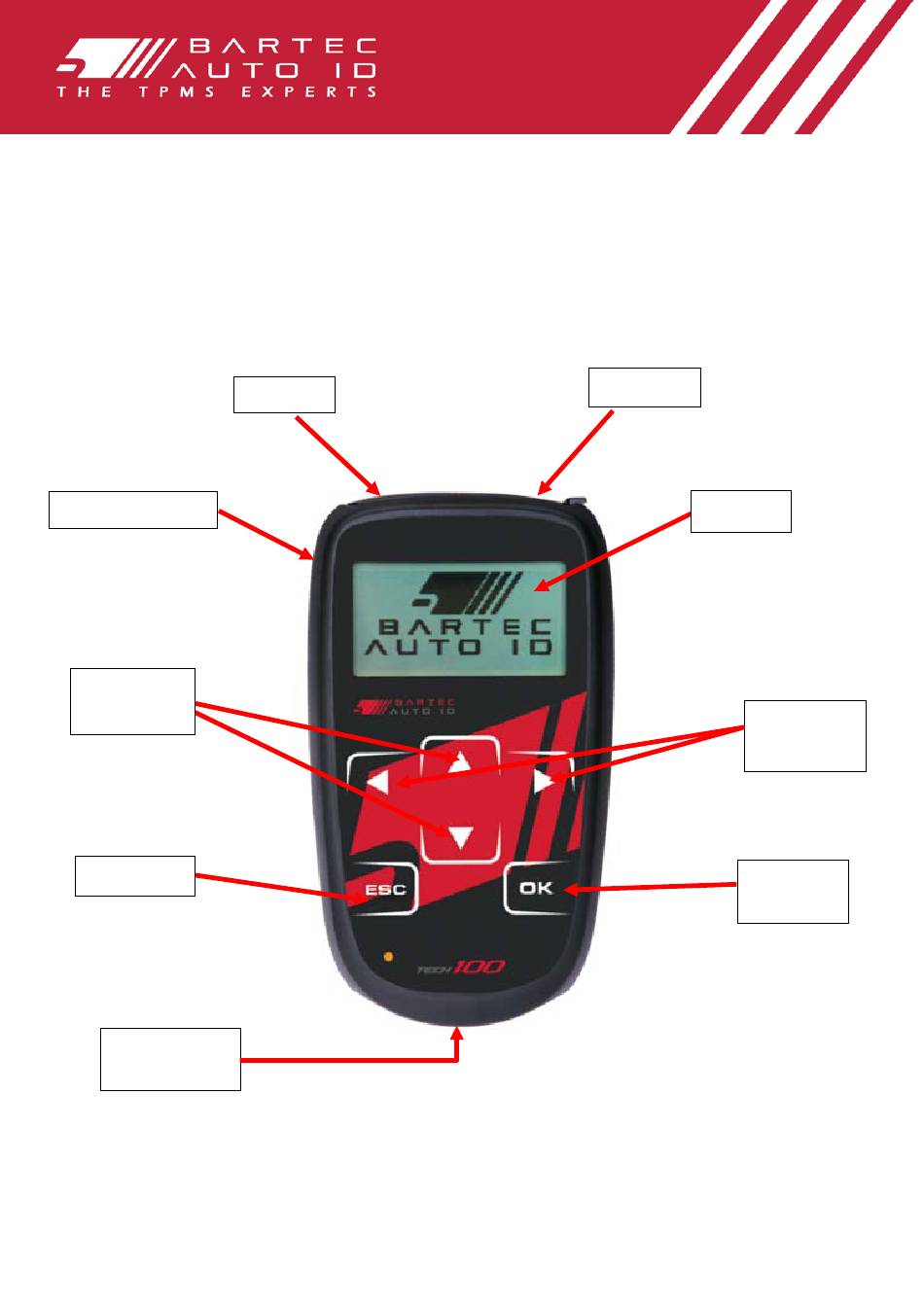

- Page 1 TECH100 Diagnostic and Service Tool User Guide Mini USB SD Card Display Rubber housing Up/Down navigation Left/Right navigation Back/Esc Forward OBD cable connector Bartec Auto ID Ltd. FW Version: 1.42 (English) 2017...
-
Page 2: Foreword
TECH100 User Guide 1.42 2017 OREWORD Dear customer, Thank you for having chosen one of our tools. We are certain that it will give the utmost satisfaction and be a great help on the job. Please become fully familiar with the instructions in this user’s manual. It should be kept ready to hand for consultation whenever required. -
Page 3: Table Of Contents
TECH100 User Guide 1.42 2017 ONTENTS ..................2 OREWORD ................3 IST OF ONTENTS ................4 MPORTANT OTICES ................. 4 AFETY RECAUTIONS ................6 OMPONENTS ..............6 EFORE ETTING STARTED ..................7 EGISTRATION .................... 10 PDATE ..................16 ................. 16 IAGNOSTICS ................ -
Page 4: Important Notices
TECH100 User Guide 1.42 2017 MPORTANT OTICES SAFETY DEFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following form DANGER: Means you may risk possible loss of life. WARNING: Means you may risk possible bodily harm. - Page 5 This tool is guaranteed against any manufacturing fault for 12 months as of date of invoice (parts and labour) only if product has been correctly used. Serial number must stay readable and proof of purchase must be retained for presentation upon request. Bartec Auto ID Ltd Unit 9 Redbrook Business Park...
-
Page 6: Kit Components
EFORE GETTING STARTED 1. Charging NOTICE: Only use the OBD or USB cable that is included in the TECH100 tool kit to power this tool. The Tech100 receives power from a vehicle through OBDII connection; there is no internal battery. During software updates, the tool receives power from a PC or Tablet through the mini USB cable. -
Page 7: Registration
Tech100 suite software. NOTE: An internet connection on your PC is required for this process. Install the Bartec Tech100 Suite software on your PC or tablet by downloading it from the link on the Tech100 page. - Page 8 First-time users will be prompted to connect their tool to the PC. If the application has already been closed and re-opened, click the “Tech100 Registration” link to proceed to the Connect prompt. Ensure the device driver is installed correctly and click “Next” to continue.
- Page 9 TECH100 User Guide 1.42 2017 If all required were filled in the “Registration Complete” screen will be displayed. Click “Finish” after making a note of the displayed account details. Then the suite prompts to “Connect to PC”. The suite will then connect with the tool.
-
Page 10: Update
Once the tool is registered the suite gives you the possibility to check for and download the newest updates. NOTE: An internet connection on your PC is required for this process. To update your Tech100, open the Tech100 Suite software on your PC and klick “Get Tech100 Updates” link. 10 |... - Page 11 TECH100 User Guide 1.42 2017 When prompted, connect the tool to the PC using the provided mini USB cable, then click Next to proceed. The Suite will check for updates. 11 | P a g e...
- Page 12 TECH100 User Guide 1.42 2017 If no updates are available, the Suite will prompt you accordingly. Click OK to return to the main menu. If updates are available, they will be displayed. Click Download to continue. Updates will begin downloading. Do not turn off the PC or disconnect tool.
- Page 13 The Suite will prompt accordingly when the update is completed. Click Finish to return to the main menu. It is now safe to disconnect the Tech100 from the PC. NOTE: If a new update is downloaded to the Tech100, the new version information will not display until the tool is powered off/on post-update.
- Page 14 TECH100 User Guide 1.42 2017 The certificate will then be applied to your subscription. If your support renewal was successful the following screen will appear and your support is extended for another year. 14 | P a g e...
- Page 15 Use the “Clear Filters” button at any time to reset your selections. 8. Options & Help Features in the Option & Help menu are the see TECH100 Suite details (after registering), select your language (choose from Danish, German, English, Spanish, French, Italian, Dutch,...
-
Page 16: Main Menu
TECH100 User Guide 1.42 2017 Diagnostics Advances to the Diagnostics menu. Battery Check Used to check battery. Settings Advances to Settings menu. Info Advances to display tool information. To access the submenus use the arrow keys to select an icon and pressing the OK key... -
Page 17: Diagnostics Menu
TECH100 User Guide 1.42 2017 IAGNOSTICS Battery Management The Battery Management function enables the reset of a vehicle’s battery system after a battery replacement. Where the battery manufacturer allows, the capacity and technology of the battery can also be changed. -
Page 18: Battery Check
To use the Battery Check application, first ensure that the Tech100 is connected to the vehicle’s OBDII port. In the vehicle, begin with the key in the ignition OFF position. - Page 19 TECH100 User Guide 1.42 2017 On the tool, select Battery Check from the Main Menu. You can then begin the battery check by pressing the OK button. After pressing OK, the tool will prompt to switch the ignition off, because then it measures the ignition off system.
-
Page 20: Settings
OK. Self Test Self tests contains a series of tests to help determine whether the Tech100 is functioning properly. If any Self Test functions display a failure for the tool, please contact Bartec. TEST BUTTON: Displays a confirmation when each key is pressed. Displays a •... - Page 21 2017 Note: The test options for CAN, J1850, ISO and SWCAN are used by the Bartec Auto ID Repair department and are not recommended for use as field diagnostics. Do not attempt to open your Bartec tool, as this will void your warranty!
-
Page 22: Info
Advances to display tool information (e.g. serial number, firmware version, etc.) ROUBLESHOOTING TECH100 states “There are no activated applications on this handset” The TECH100 has not yet been registered. See Section Registration on page 7 for more information. Windows does not recognize my TECH100 when connected to my PC... - Page 23 The TECH100 will not power on when connected to a vehicle The minimum battery voltage required to power the TECH100 is 9V. If the vehicle’s battery voltage drops below this level, the tool may not power on, or only power up to boot mode.
-
Page 24: Technical Specification
TECH100 User Guide 1.42 2017 ECHNICAL PECIFICATION Power Supply OBDII and USB connection Max power consumption 1.5W Schrader TPM, 0.5W all others Display High contrast OLED graphics display Keyboard 6 keys, oil and water resistant Input/output Mini-B style USB used to connect to PC for firmware update... -
Page 25: Bartec Product Range & Accessories
TECH100 User Guide 1.42 2017 & A ARTEC RODUCT ANGE CCESSORIES Tread Depth and Pressure Tool TAP100 & TAP200 TPMS Tool TPMS Tool Diagnostics TECH500 TECH300 Tool TECH100 ACCESSORIES CUB Adapter TPMS wireless Audit Report TPMS sensor programming charging PAD... - Page 26 TECH100 User Guide 1.42 2017 Wall mountable wireless charging stations for the workshop or mobile working 26 | P a g e...
