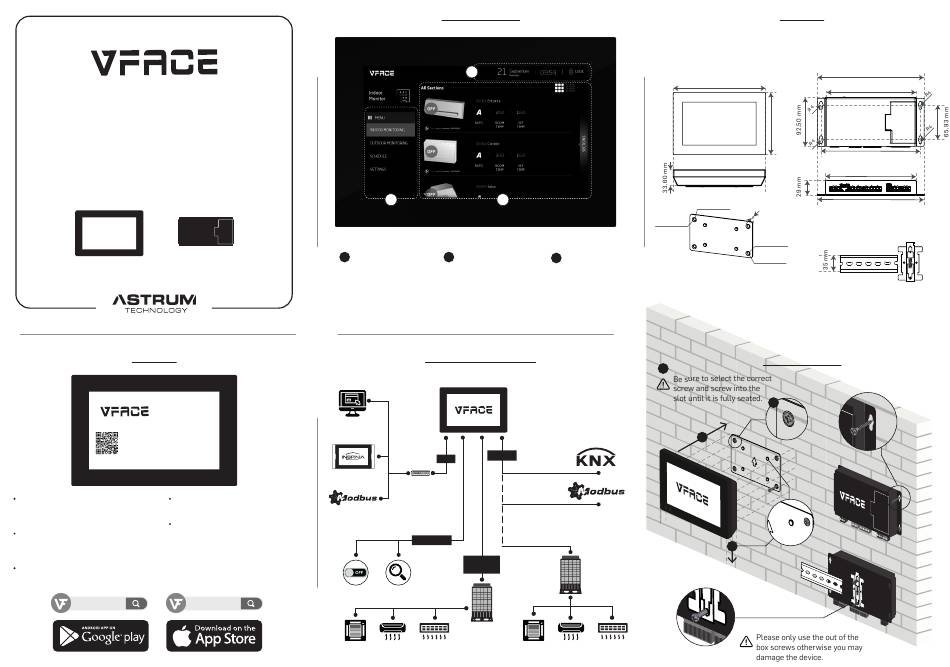

ASTRUM VFACE Quick Installation Manual

QUICK INSTALLATION GUIDE
ULTIMATE VRV/VRF GATEWAY
Version VFC-QI03-202002
www.vface.eu
BASIC
TOUCH
MOBILE APP
SETTINGS
192.168.2.112
IP ADDRESS:
192.168.2.1
GATEWAY:
255.255.0.0
SUBNET MASK:
Download VFace mobile app from App Press add button and scan
Store or Google Play to your mobile QR-code on your mobile app.
device.
Define a name and save your
Make sure that VFace has proper settings. You are ready!
internet access and port forwarding
done for 8080 port.
Unique device ID and QR-code will be
generated on settings page.
VFace VFace Mobile
PRODUCT OVERVIEW
2
1 3
Menu Bar Information Bar
1 2
• Indoor Monitoring • Date
• Outdoor Monitoring • Time
• Schedule
• Settings
FEATURES & FUNCTIONALITY
Web
Programming
PORT 2
LAN
KNX
Inspinia
Network Switch
OR MODBUS RTU
TCP
OR VRV/VRF
INPUT
PORT 1
VRV/VRF
All Off Search
Outdoor
Unit
Indoor Indoor Indoor
Unit Unit Unit
VFACE TOUCH
193.60 mm
TRUE R4.70
TRUE R4.70
Dashboard
3
• Indoor Unit List
• View Options
• Sections
Screwdriving
1
2
RTU
Indoor Indoor Indoor
Unit Unit Unit
DIMENSIONS
VFACE BASIC
202 mm
169.50 mm
188 mm
172 mm
202 mm
2 mm
OPTIONAL
TRUE R4.70
TRUE R4.70
ADMISSIBLE DIN-RAIL:
TS35/7.5 OR TS35/15
WALL MOUNTING
1
3
Rail mounting option
