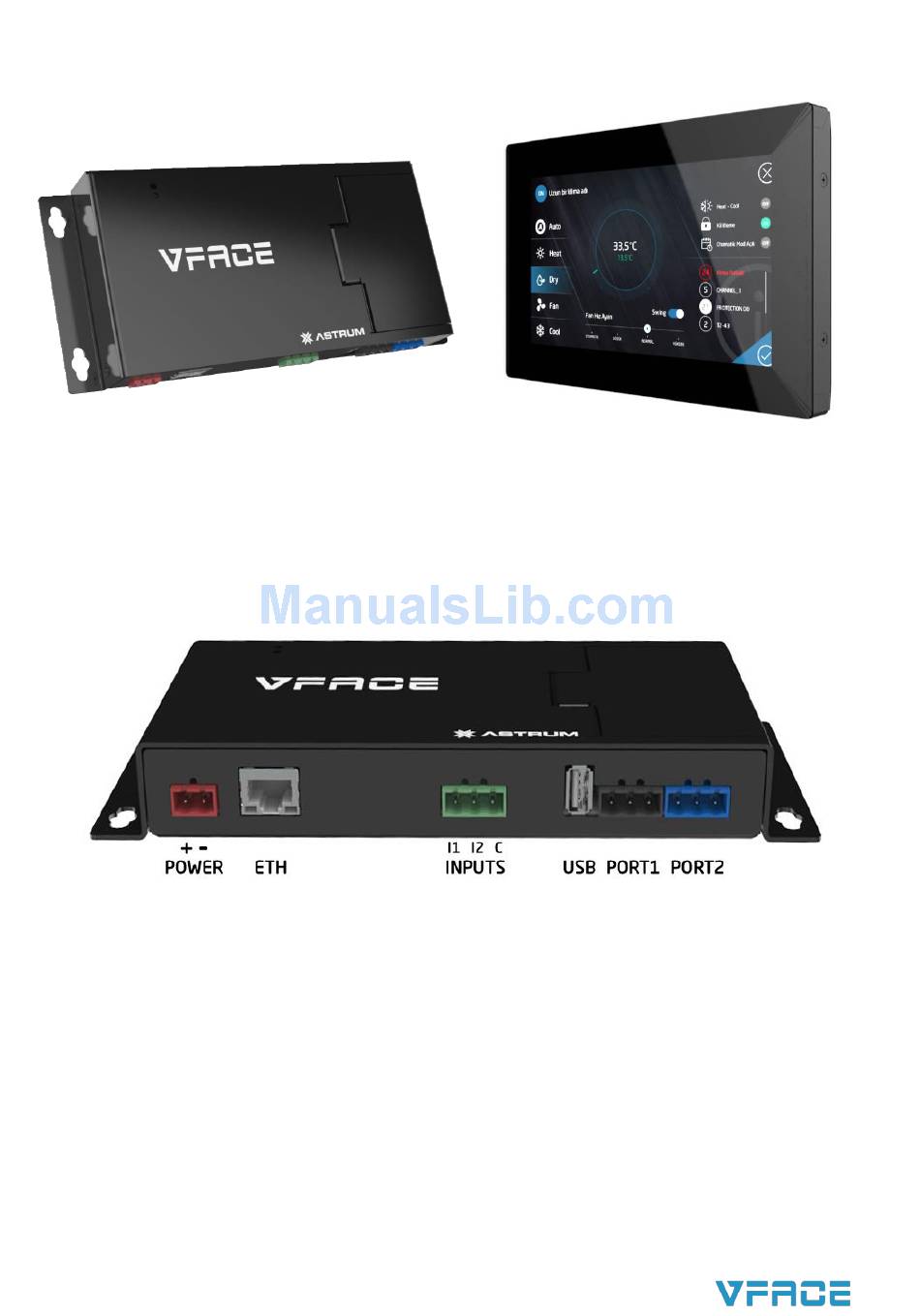

VFACE User Manual VFACE BASIC VFACE TOUCH VFACE BASIC and VFACE TOUCH are basicly same hardware instead touch screen. All the functions and programming interfaces are same. CONNECTION Power Supply : 12VDC Ethernet Port : Standart ethernet connection port. INPUTS : 2 Digital Inputs. Need to contact with comman (C) port to trigger.
All setup and parameters are being made via browser. Enter “192.168.2.100:8080” to your browser (prefer Chrome or Firefox browsers), login screen will show up. Default user: superuser Default password: astrum You can also go to Settings Menu and change default IP address to desired IP address via Touch Screen.
VRF BRAND Choose Brand: Select your VRF Brand VRF Baudrate: Standart baudrate is 9600 NETWORK SETTINGS IP Address: Enter reserved IP address of VFace (also set gateway, subnet and dns) DHCP: Check DHCP if you want VFace will take IP address automatically BMS SETTINGS Channel Type: Select your BMS port function...
Page 5
LICENSE Version: Software version Valid Status: Status of your Licence Valid or Not Serial Number: Serial number of your VFace Activation Key: Activation key of your VFace License Key: License Key If you want to use extra features of VFace such as Outdoor Unit information, KNX communication or VCloud you need to send us Serial Number and Activation Key.
Page 6
You can add users and define or edit sections with “+” button and you can delete user with “-“ button. DEFINE UNITS Indoor and Outdoor units will appear automatically at this page after searching units. Units will appear with their ID numbers.
Page 7
Set Rule: Press "Set Rule" and choose the section or unit which you want to set a weekly schedule. Select on/off, mode, set, fan speed to apply, select days of week and enter time. Rule will be applied, every selected day of week and entered time.
Page 8
You can control and get feedback from on/off, mode, set temperature, fan speed, room temperature, unit error code and swing via KNX for each indoor unit. Broadcast function let’s you command multiple indoor units with a single group address. Above picture you can see an example.
Page 9
Indoor and outdoor units are seperated by modbus device ID’s. Below example Modbus CH1 Indoor ID is 1 and Modbus CH1 Outdoor ID is 2 that so you may get all indoor units information from modbus device 1 and all outdoor units infromation from modbus device 2.
and apply commands via control box. If you want to send command to all units, no matter which section you are in, check “All Units” check box and apply commands via control box. In case of error in indoor units there will be a yellow sign on indoor unit and section of this unit. And at the end of control box will appear error code.
