Installation Guide
and Users Manual
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference

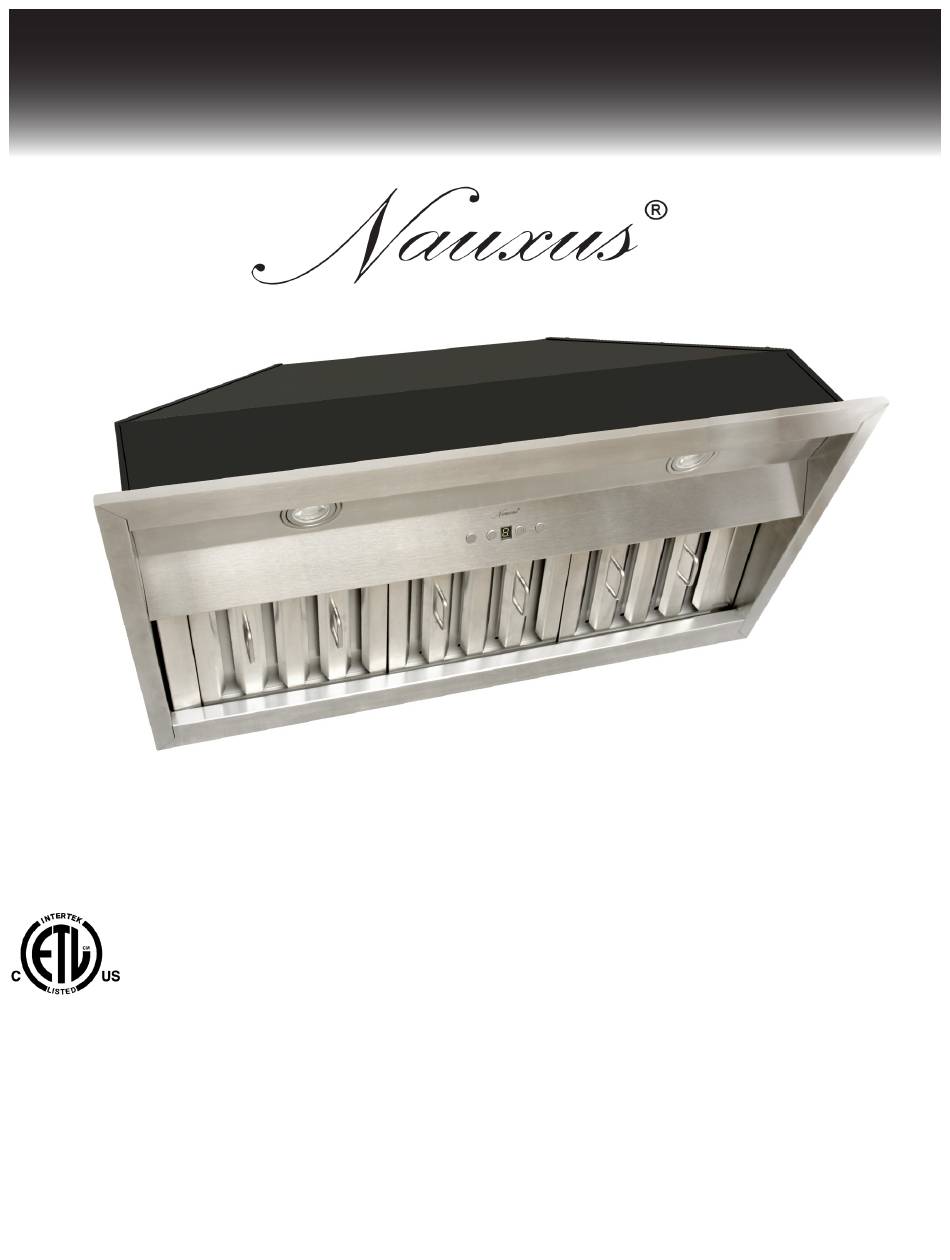

Power Pack Range Hood Insert
Questions, problems, missing parts? Before returning to the store,
call NAUXUS Customer Service
8 a.m.-6 p.m.,EST, Monday-Friday
1-(832)941-6306 1-(909)858-6868
NAUXUS.COM
MODEL:
NX-E90-30
NX-E90-36
Advertisement
Table of Contents
Related Manuals for Akicon Nauxus NX-E90-30
Summary of Contents for Akicon Nauxus NX-E90-30
- Page 1 Installation Guide and Users Manual Questions, problems, missing parts? Before returning to the store, call NAUXUS Customer Service 8 a.m.-6 p.m.,EST, Monday-Friday 1-(832)941-6306 1-(909)858-6868 NAUXUS.COM IMPORTANT: MODEL: Read and save these instructions. NX-E90-30 NOTICE: NX-E90-36 Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Power Pack Range Hood Insert...
- Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
- Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents USE AND CARE INSTALLATION Tools needed............3 Troubleshooting...........14 Parts supplied...........4 Use and care information.......15 Venting requirements........5 Specifications..........15 MAINTENANCE Mount heights & clearance......5-6 Calculating vent system length.......6 Cleaning& Replacing filter .....16 Venting methods...........7-8 Replacing light bulb.........16-17 Charcoal filter Installation .......8 Disclaimer ............18 Electrical requirements........9 Installation............10... -
Page 6: Parts Supplied
Parts supplied: Range Hood M4 x 35mm QTY: 10 Baffle Filter Oil Tunnel Filter spacer 6" Round Adapter 3.25"x 10" Duct Transition 3.25" x 10" Adapter Page 4... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • Do not terminate the vent system in an attic Cabinet or other enclosed area. • Do not use 4” (10.2 cm) laundry-type wall caps. -
Page 8: Calculating Vent System Length
Height & Clearance (Continued) IMPORTANT: • A minimum of 6” round (standard for this range hood) must be used to maintain maximum airflow efficien- • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods
Venting Methods • This power pack range hood insert is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. •... -
Page 10: Charcoal Filter Installation
Venting Methods (Continued) Figure 3 Figure 4 Figure 5 Roof Cap Round Duct Round Elbow Power Pack Wall Cap Range Hood Insert 24” to 30” Above Cooking Surface Charcoal Filter Installation NOTE: 1.Remove grease filters from the hood. 2.Position the charcoal filters onto the side of the motor, aligning the mounting points, turn until it locks. average of 1 to 2 hours of daily cooking time). -
Page 11: Electrical Requirements
Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. (Please consult with a qualified electrician for 220-Volt 50 Hz voltage) It is the customer’s responsibility: To contact a qualified electrical installer. To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 —... -
Page 12: Installation
Installation Excessive Weight INSTALL THE HOOD Require two or more person to move and Due to excessive weight, two or more person is recommended for this step. install this range hood. Spinal or other bodi- ly injuries could occur if it is not followed. NOTE: DO NOT INSTALL THIS POWER PACK RANGE HOOD INSERT BEFORE RUNNING A TEST AND MAKE SURE THE UNIT IS IN GOOD CONDITION. -
Page 13: Range Hood Operations
Range Hood Operations Speed Electronic Touch Control Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. - Page 14 Range Hood Operations (Continued) 3 Speed Electronic Touch Control Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator • Controls: • Adjusting the timer function: • While the blower (motor) is not running, press and hold Decrease Value button over 3 seconds to enter timer mode.
- Page 15 Product Dimension NX-E90-30 / NX-E90-36 Wiring Diagram Page 13...
- Page 16 Troubleshooting 1. If the range hood does not operate after installa- • Check if the range hood has been plugged in, make tion: sure that all power has been turned back on and all electrical wiring are properly connected. • Swap out light assembly to working ones to deter- mine whether it is caused by defective bulbs.
- Page 17 Use and Care Information WARNING — TO REDUCE THE RISK OF FIRE, ELEC- lowed to accumulate on fan or filter. TRIC SHOCK, OR INJURY TO PERSONS, OBSERVE Use proper pan size. Always use cookware appropriate for THE FOLLOWING: Use this unit only in the manner in- the size of the surface element.
- Page 18 Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •...
- Page 19 Maintenance (Continued) Replacing LED Light Fixture: • This range hood uses LED light fixture: 3W Max 12V LED • Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch. • Place a flat-head screwdriver between light housing and hood body, gently pry up the light housing and search for the metal clip.
- Page 20 Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately.
