INTENDED USE OF THE TOOL
The tool is designed to set blind rivets through the use of
an air compressor. This method of setting blind rivets is a
much faster and easier process than using a hand rivet gun.
Do not use this tool outside of the designed intent. Never
modify the tool for any other purpose or use.
WARNING
Caution: To help prevent personal injury
• Normal use of this product is likely to expose the
user to dust and/or microscopic particles containing
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Always wear appropriate safety equipment and
clothing when using this product. Study, understand
and follow all instructions provided with this
product. Failure to read and follow all warnings and
operating instructions may result in damages and
serious injury or death.
• Always wear ANSI approved goggles when using
this product. (Users and Bystanders).
• Never use this tool for any application other than for
which it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
• Improper operation and/or maintenance of the tool,
modification of the tool or use of the tool with
accessories not designed for it could result in
serious injury or death.
• Always select the correct accessories of the correct
size and design for the job that you are attempting
to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
• Do not begin repairs without assurance that vehicle
is in secure position and will not move during repair.
Unpacking
When unpacking, check the parts diagram and part number
listing on page 5 to make sure all parts are included. If any
parts are missing or damage, please call your distributor.

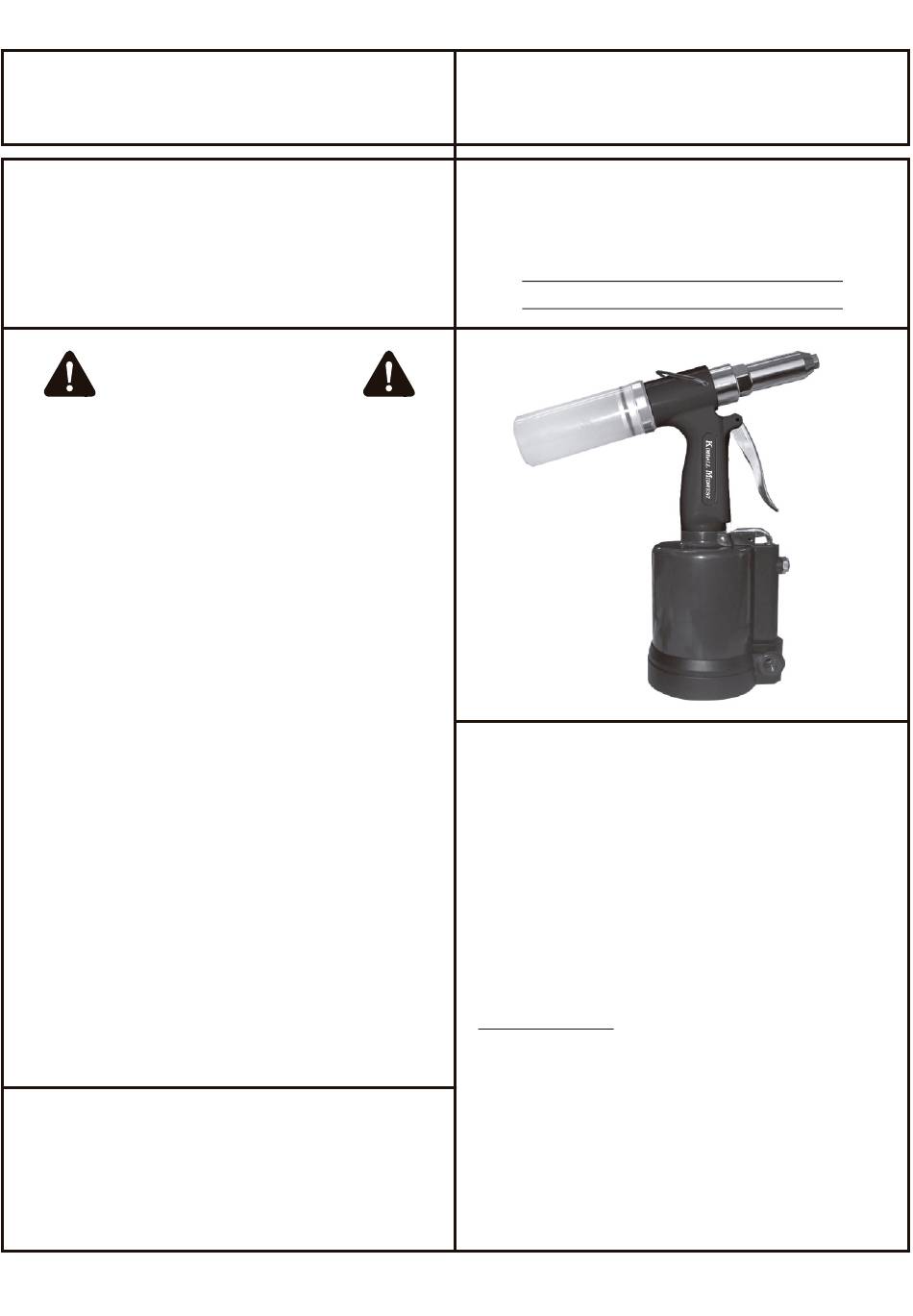

Model:
48-2913
Product Type:
Heavy Duty Air Riveter
K
IMBALL
M
Specializing in Materials Management
PRODUCT INFORMATION:
Includes the following nosepieces: 1/4"(6.4mm),
3/16"(4.8mm), 5/32"(4mm), 1/8"(3.2mm), 3/32"(2.4mm)
• Powerful, durable, high speed production tool
• Air release valve quickly returns for high speed assembly
operations
• Performs well at any angle
• Gets into hard-to-reach areas
• Provides quick, quiet and comfortable operation
preventing user fatigue
SPECIFICATIONS:
Rivet Capacity:
Overall Length:
Net Weight:
Stroke:
Pulling Pressure:
Air Inlet Thread NPT:
Air Hose I.D. Size:
Avg. Air Consumption:
Air Pressure:
Page 1
IDWEST
1/4"
10-7/8" (280mm)
3-1/2lbs. (1.6kg)
16mm
2423lbs.
1/4"
3/8" (10mm)
2.320 Liter/Stroke
90-120psi
