Summary of Contents for Raytheon Electronics Autohelm mob ST80

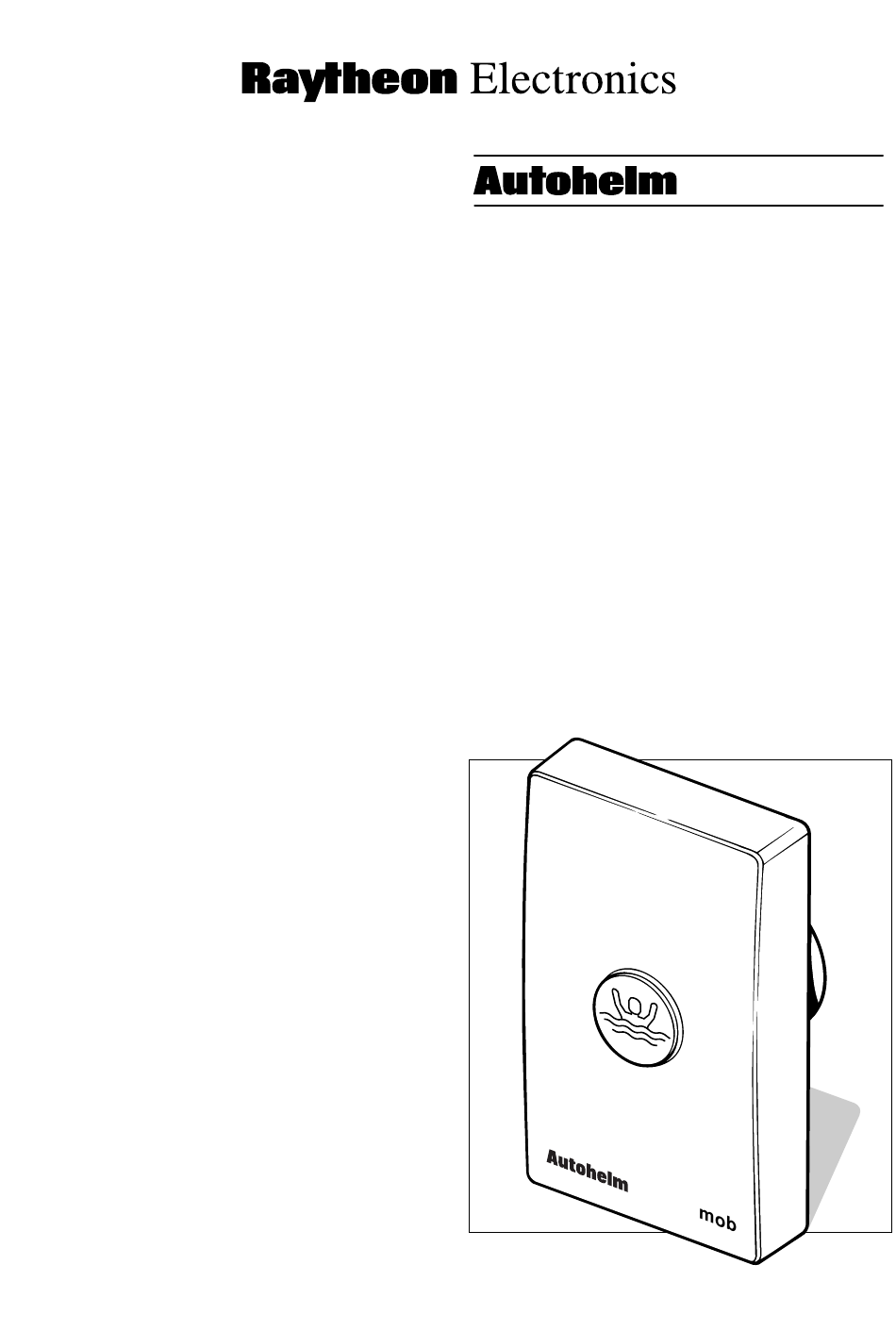

- Page 1 Chapter 2: Installation ST80 ManOverboard Keypad Operation Manual...
- Page 3 ST80 ManOverboard Operation Manual Package Contents 1. ManOverboard keypad 2. Thumb nuts (2) 3. Threaded fixing studs (2) 4. White sun cover 5. SeaTalk cable 6. Installation template 7. Operation manual 8. Warranty card 9. Operation cue card 10. Keypad installation guide...
-
Page 4: Table Of Contents
ST80 ManOverboard Operation Manual Contents Chapter 1: Operation ..............3 I n t r o d u c t i o n ............... 3 B a s i c O p e r a t i o n . -
Page 5: Chapter 1: Operation
ST80 ManOverboard Operation Manual Chapter 1: Operation Introduction D1950-1 The Man-Overboard keypad consists of a single button that, once activated in the event of a crew member going-overboard, transmits the following data on SeaTalk: • Range and bearing calculated from Latitude and Longitude. •... -
Page 6: Basic Operation
ST80 ManOverboard Operation Manual Basic Operation In the event of a man-overboard situation, the Man-Overboard (MOB) keypad will carry out the following tasks. Press the MOB key to transmit the following data to SeaTalk: Range and bearing calculated from Lat. and Lon. Range and bearing calculated using dead reckoning. -
Page 7: General Information
ST80 ManOverboard Operation Manual General Information • The keypad beeps when the button is pressed. • The small red LED glows when the keypad is operational. • The brightness of the keypad illumination is governed by the system illumination. • If a power failure occurs during a MOB condition, MOB data is retained for use when the power supply is restored. -
Page 8: Chapter 2: Problem Solving
ST80 ManOverboard Operation Manual Chapter 2: Problem Solving 2.1 Problem Solving Keypad does not operate - power LED not illuminated • Make sure the cable connecting the keypad to SeaTalk is connected properly. • Make sure the cable is not damaged. Replace the cable if it is damaged. -
Page 9: Check Before Going To Sea
ST80 ManOverboard Operation Manual • Genuine Autohelm cables should be used at all times. Cutting and rejoining these cables can compromise EMC performance and so should be avoided unless doing so is detailed in the installation manual. • If a suppression ferrite is attached to a cable, this ferrite should not be removed. -
Page 10: Chapter 4: Specification
ST80 ManOverboard Operation Manual Chapter 4: Specification Dimensions: 110 x 68 x 17mm (4.33 x 2.67 x 0.66in) Power supply: 10 to 16V DC Current consumption: 90mA to 190mA (illumination fully on) Operating temperature: -10 to 70°C (14 to 158°F) Buzzer: Single tone beep 81089–1... - Page 12 ST80 Navigator Keypad Installation and Operation Handbook Raytheon Marine Europe Ltd. Anchorage Park, Portsmouth, P03 5TD, England. Telephone: (44) 1705 693611 Fax: (44) 1705 694642...
