Summary of Contents for Riccar Tandem Air Premium

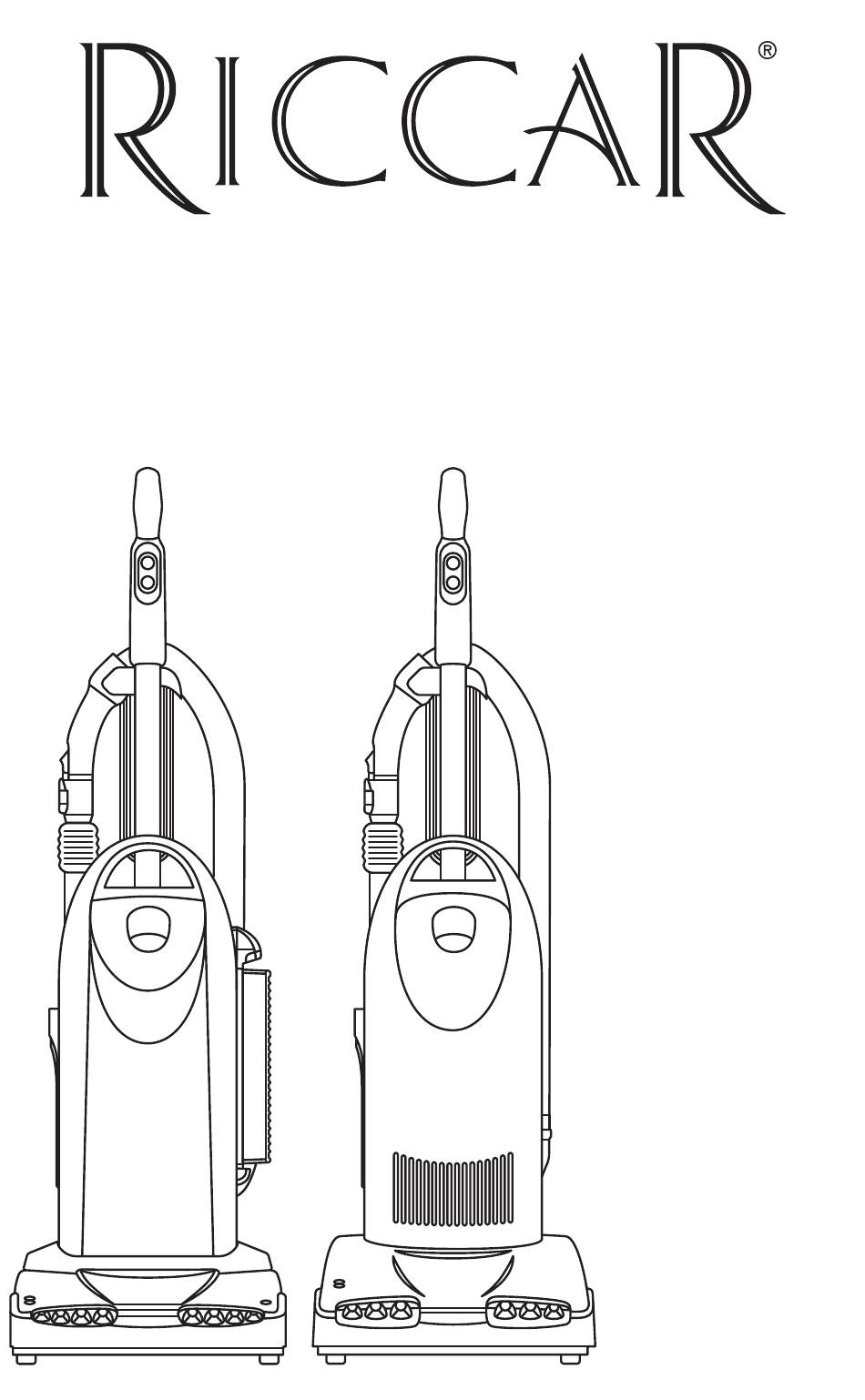

- Page 1 Owner’s Manual R40P & R30D...
-
Page 3: Table Of Contents
Replacing the Granulated Charcoal Filter (R30D) Replacing the Direct Air Motor Filter Lifetime Belt Jammed Brushroll Cleaning the Dirt Sensor Eye Thermal Motor Protection Problem Solving Guide Troubleshooting Visit Riccar Vacuums Online How to Contact Your Authorized Retailer Key Replacement Parts For Best Performance Warranty... -
Page 4: Important Safety Instructions
• Do not use without a vacuum bag and/or left outdoors, or dropped into water, filters in place. return it to your Authorized Riccar Retailer for service. • Turn off all controls before unplugging. • Do not pull or carry by the cord, use •... -
Page 5: Polarization Instructions
POLARIZATION INSTRUCTIONS Power Cord, 2-Wire Polarized Cord To reduce the risk of electric shock, this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. -
Page 6: Description Of The Vacuum
DESCRIPTION OF THE VACUUM (R40P) - Page 7 DESCRIPTION OF THE VACUUM (R40P) 1 Deluxe Touch Handle Grip 2 Main On/Off Power Switch 3 Carpet/Hardwood Floor Switch 4 40–Foot Power Cord 5 Carrying Handle 6 Bag Compartment Latch (to Replace Vacuum Bag and Filters) 7 HEPA Media Filter 8 Brushroll Jam Indicator 9 Change Filter Indicator 10 Full Bag/Clog Indicator...
- Page 8 DESCRIPTION OF THE VACUUM (R30D)
- Page 9 DESCRIPTION OF THE VACUUM (R30D) 1 Deluxe Touch Handle Grip 2 Main On/Off Power Switch 3 Carpet/Hardwood Floor Switch 4 40-Foot Power Cord 5 Carrying Handle 6 Bag Compartment Latch (to Replace Vacuum Bag and Filters) 7 Crevice Tool 8 Full Bag/Clog Indicator 9 Brushroll Jam Indicator 10 LED Headlights 11 Furniture Guard...
-
Page 10: Assembling The Vacuum
ASSEMBLING THE VACUUM Attaching the Handle to the Vacuum NOTE: Do not plug in the vacuum until it is completely assembled. The vacuum cleaner and the handle are packed separately and require assembly. • Remove the handle screw located on the back of the vacuum (Fig. -
Page 11: Operation
OPERATION This vacuum is intended for household use only. Reclining the Handle Press the Handle Release Pedal with your foot to recline the handle. Vacuuming Carpet For carpet cleaning, push the On/Off Switch to the “On” position. The Carpet Button will illuminate indicating the carpet cleaning setting is on (Fig. -
Page 12: Dirt Sensing Display
OPERATION Dirt Sensing Display (R40P model) This model is equipped with two amber lights that illuminate the edges of the cleaning path when your vacuum detects that dirt is being picked up by the machine (while in the carpet cleaning mode). -
Page 13: Vacuuming Under Furniture
OPERATION Vacuuming Under Furniture Your vacuum will lay flat on the floor for effective cleaning under beds and tables. • Press the Handle Release Pedal once for normal vacuuming (Fig. 1). • Press the Handle Release Pedal a second time to enable the vacuum to lay flat on the floor (Fig. -
Page 14: Attachment Cleaning
ATTACHMENT CLEANING Wand Cleaning Your vacuum is a comprehensive cleaning system equipped with an upholstery tool, dusting brush, crevice tool, telescopic wand and a stretch hose. • Remove the Telescopic Wand from the body of the vacuum by pulling it up and out of the holder (Fig. -
Page 15: Cleaning Tools
ATTACHMENT CLEANING Cleaning Tools Your vacuum is equipped with a dusting brush, upholstery tool, crevice tool and a pet hair remover tool (R40P model). • Remove the cleaning wand from the vacuum and turn the Tool Activation Dial to the “Tools On” setting (See page 10). -
Page 16: Adjusting The Suction Power For Tool Cleaning
ATTACHMENT CLEANING Cleaning Tools (continued) Cleaning tools can also be attached to the curved handle for tasks where the wand is not needed. • Disconnect the wand from the curved handle by pressing the Wand Release Button (Fig. 1). • Attach any of the cleaning tools directly Fig. -
Page 17: Maintenance And Care
Please visit an Authorized Riccar your vacuum to an Authorized Riccar Retailer for a new cord or plug. Retailer for an annual checkup. The Retailer will conduct a comprehensive •... -
Page 18: Replacing The Vacuum Bag
MAINTENANCE AND CARE Replacing the Vacuum Bag NOTE: Unplug the vacuum cleaner from the electrical outlet before changing the bag. • To access the vacuum bag lift the bag compartment latch. • Remove the used vacuum bag by pulling Fig. 1 the yellow bag collar tab away from the vacuum (Fig. -
Page 19: When To Change The Filters (R40P)
MAINTENANCE AND CARE When to Change the Filters (R40P model) NOTE: Unplug the vacuum cleaner from the electrical outlet before changing the filters. The filters on this model should be Filter replaced after 25 hours of operation. The vacuum is equipped with a filter Full Bag clock to monitor the actual hours of operation and will illuminate the change... -
Page 20: Replacing The Granulated Charcoal Filter (R40P)
MAINTENANCE AND CARE Replacing the Granulated Charcoal Filter (R40P model) • Open the bag compartment lid and locate the filter on the left side of the bag compartment. • Use the latch on the side to remove and discard the entire filter cartridge. •... -
Page 21: When To Change The Filters (R30D)
MAINTENANCE AND CARE When to Change the Filters (R30D model) NOTE: Unplug the vacuum cleaner from the electrical outlet before changing the filters. At minimum, it’s recommended to replace the filters once a year or after using 12 vacuum bags, whichever comes first. If someone in your household is sensitive to airborne allergens, it is recommended to change the filters after every six... -
Page 22: Replacing The Direct Air Motor Filter
• Return vacuum handle to its upright position. Fig. 1 Lifetime Belt Your vacuum belt is covered with a lifetime warranty. Should the vacuum belt break, simply bring your vacuum to your Authorized Riccar Retailer for a free replacement. Fig. 2... -
Page 23: Jammed Brushroll
Jammed Brushroll Condition the Brushroll Jam Indicator is still lit, it’s likely the clogged condition is located in the vacuum motor fan. If so, please take your vacuum to an Authorized Riccar Retailer for service. Cleaning the Dirt Sensor Eye (R40P model) -
Page 24: Thermal Motor Protection
• Inspect the vacuum for a full bag condition or a hose clog and correct the problem. • Locate the Thermal Motor Protection Reset Button on the back of the vacuum. Press the button and resume vacuuming. If problem continues, contact your Authorized Riccar Retailer. -
Page 25: Problem Solving Guide
Filter Review filter installation (pages 17-20). Any other service should be performed by an Authorized Riccar Retailer. To locate your nearest Authorized Retailer, visit our website at Riccar.com or call 888-674-2227. Key Replacement Parts • R40P: Genuine HEPA Media Vacuum Bags: RPH-6 Genuine Filter Set: RF40G (HEPA media and granulated charcoal) •... -
Page 26: Warranty
How to Get Service: Warranty service can only be obtained by presenting the vacuum to an Authorized Riccar Retailer. A proof-of-purchase and product serial number will be required before service is rendered. To locate your nearest service center, please call 888-674-2227 or visit Riccar.com. - Page 27 WARRANTY Red Carpet Service Plan Your vacuum is covered by the Red Carpet Service Plan, which provides for several free tune-ups at scheduled intervals. For more info information, visit Riccar.com/clean-advice/rolling-out-the-red-carpet...
- Page 28 Riccar.com 888-674-2227 1760 Gilsinn Lane Fenton, MO 63026 Rev. C ©2020 Tacony Corporation B503-8000C...
