Beacon
B1A4ZM

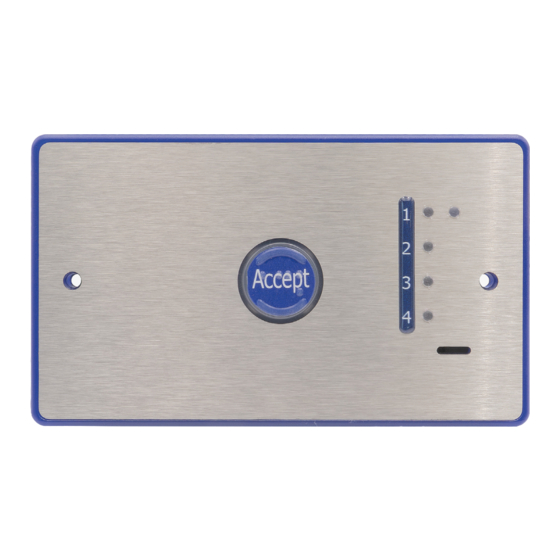

Beacon Assist Call 4 Zone Module
Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESP Beacon and is the answer not in the manual?

Questions and answers

Related Manuals for Scolmore ESP Beacon

Summary of Contents for Scolmore ESP Beacon

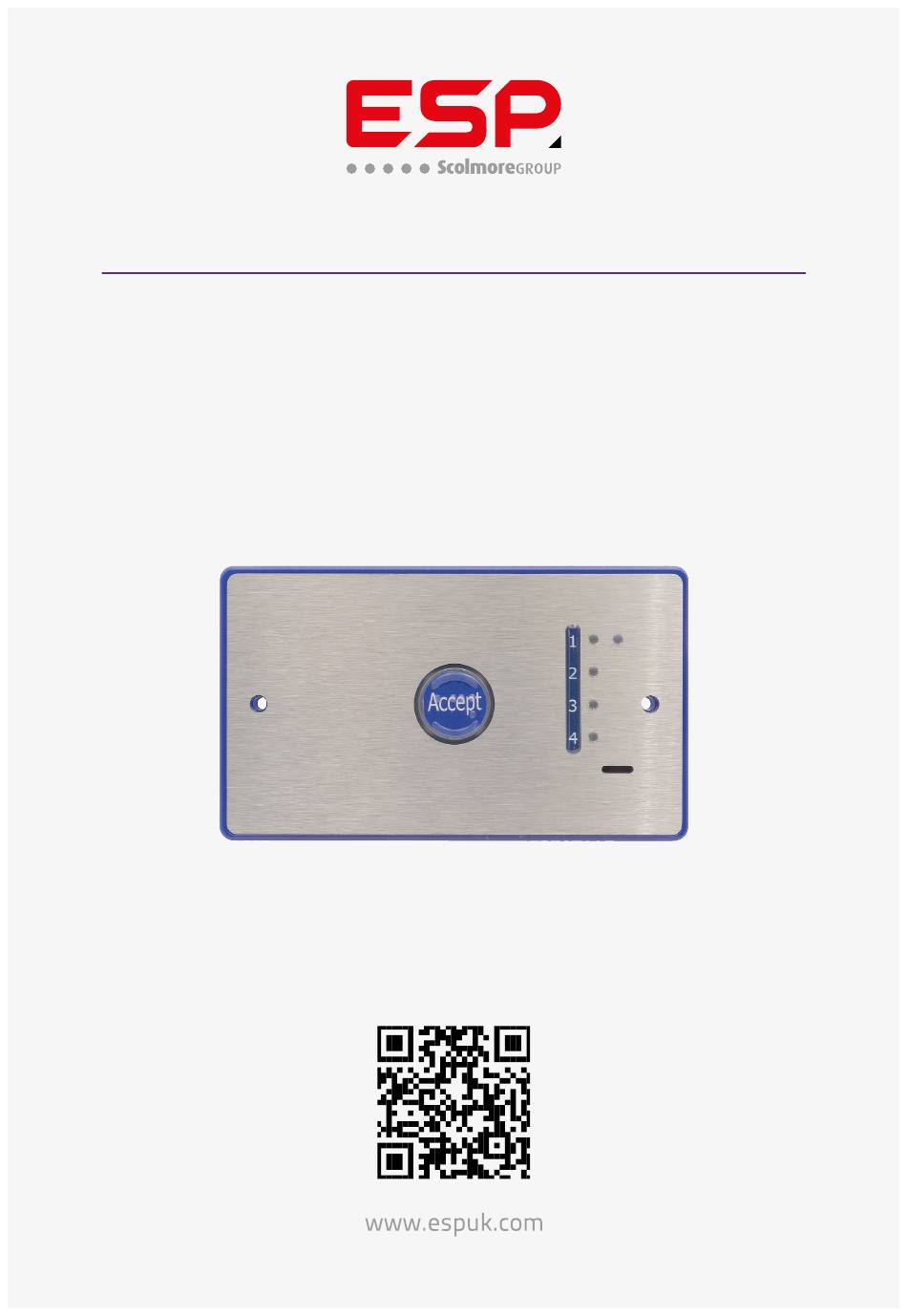

  • Page 1 Beacon B1A4ZM Beacon Assist Call 4 Zone Module Installation Instructions...

  • Page 2: Important Safety Information

    1. Overview The B1A4ZM is a four-zone control module which can be used to monitor up to 4 zones of Assist Call devices. It requires 12 volts DC to operate which is supplied by the matching B1A4ZMPS power supply module. These modules are only compatible with Assist Call devices. For mounting information please see below.
  • Page 3 6. Installation Single Control Module The B1A4ZM control module mounts onto a 25mm UK double gang back box. Program Zone 1 Zone 2 Repeater Master Zone 3 Network Net In Sounder Zone 4 Volume Net Out Figure 1 - B1A4ZM Rear View 6.1.

  • Page 4: Additional Functions

    7. ADDITIONAL FUNCTIONS 7.1. Buzzer Volume Control There is a potentiometer on the rear of the PCB labelled Sounder volume turning it anti clockwise reduces the volume. 7.2. Volt Free Relay The controller has an on-board volt free NO, Com relay contact rated at 1A @30V DC. The relay operates whenever an alarm is present. This can be used to signal ancillary equipment such as sounders or beacons.

  • Page 5: System Operation

    There are 2 x network terminals marked “GND & Net In” and “GND & Net Out”, The data pair should be connected from the master Net Out to the Net In on the power module then from Net Out to Net In on the repeater. This can be seen in Figure 5 - Master-Repeater Wiring Example below.
  • Page 6 10. Commissioning 10.1. Single Master Control To commission a single system consisting of a B1A4ZM control module and a B1A4ZMPS power module. Visit each assist call location, operate the alarm as detailed in section 9 checking that the correct zone number indicates, then cancel it. Repeat at each location.
  • Page 7 Page 7...
  • Page 8 Elite Security Products UK, Unit 7 Target Park, Shawbank Road, Lakeside, Redditch, Worcestershire, B98 8YN Tel: +44(0) 1527 51 51 50 Fax: +44(0) 1527 15 01 43 Email: info@espuk.com Registered in England; Company Registration Number: 02769392; VAT Registration: GB614686525 For more product information please visit www.espuk.com E&OE - Errors and Omissions Excepted.
