Camec 053633 Manual

20l flatbed microwave
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

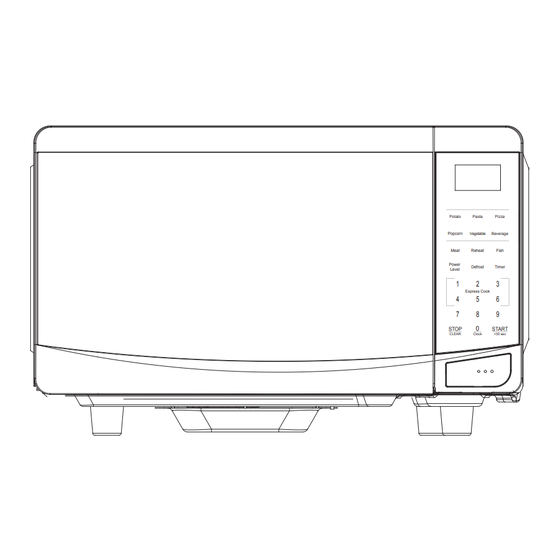

MICROWAVE OVEN
20L FLATBED MICROWAVE
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
More information https://www.caravansplus.com.au
Part No. 053633
Potato
Pasta
Pizza
Popcorn
Vegetable
Beverage
Meat
Reheat
Fish
Power
Defrost
Timer
Level
1
2
3
Express Cook
4
5
6
7
8
9
STOP
START
0
CLEAR
Clock
+30 sec

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 053633 and is the answer not in the manual?

Questions and answers

Related Manuals for Camec 053633

Summary of Contents for Camec 053633

  • Page 1 20L FLATBED MICROWAVE Potato Pasta Pizza Popcorn Vegetable Beverage Meat Reheat Fish Power Defrost Timer Level Express Cook STOP START CLEAR Clock +30 sec Part No. 053633 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE More information https://www.caravansplus.com.au...

  • Page 2: Important Safeguards

    Household use only SAVE THESE INSTRUCTIONS .IMPORTANT SAFEGUARDS … ……………… …… .. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy.
  • Page 3 eruptive boiling, therefore care has to be taken when handling the container. 6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns. 7.
  • Page 4 CAUTION: HOT SURFACE 13. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...
  • Page 5 used for domestic purposes. 19. This product internal light source LED light on＜60lm. 20. After plug in or the appliance end the work, the product automatically falls into standby mode, and the product indicates the information of time standby power＜ 0.8W. .INSTALLATION…...

  • Page 6: Microwave Care

    8. There could be possibility of manufacturing residue or oil remains in the microwave cavity or heat element, which could cause odour or faint smoke. Place a cup of water in the microwave, set at high power and operate several times to remove the residue or oil.

  • Page 7: Tips For Cleaning

    3) Put some orange peel into microwave, and then heat them with high micro power for 1 minute. When the product is not used, it should be placed in dry and ventilated areas. Details how to clean surfaces in contact with food: After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease.

  • Page 8: Product Instruction

    PRODUCT INSTRUCTION …………………………....③ ⑤ ① ② ④ 1) Door lock Microwave door must be properly closed in order for it to operate 2) Viewing window Allow user to see the cooking status 3) Housing 4) Borosilicate board 5) Control panel See below in details (the control panel is subject to change without prior notice) 6) Waveguide cover...
  • Page 9 OPERATION OF CONTROL PANEL…。 。 。 。 。 。 。 。 。 Potato Pasta Pizza Popcorn Vegetable Beverage Meat Reheat Fish Power Defrost Timer Level Express Cook STOP START +30 sec CLEAR Clock More information https://www.caravansplus.com.au...

  • Page 10: Before Cooking

    1. BEFORE COOKING The display lights up when plugged in power supply, then enter the standby state and display shows 1:00. 2. MICROWAVE FUNCTION There are ten microwave power levels, 100P, 90P, 80P, 70P, 60P, 50P, 40P, 30P, 20P and 10P, respectively. Press the “Power Level”...
  • Page 11 to lengthen the service life. e. If you turn the food during operation, press the START/+30s button once and the preset cooking procedure will continue. f. If you intend to remove the food before the preset time, you must press STOP button once to clear the preset procedure to avoid unintended operation of next time use.

  • Page 12: Auto Cooking

    c. If the food can be cut by knife, the defrosting process can be considered completed. d. Microwave penetrates around 4cm into most food e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again. 4.
  • Page 13 a. The temperature of food before cooking should be at be 20-25℃. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. b. The temperature, weight and shape of food will largely influence the cooking effect. If there are any deviations to the cooking portions in the above menu, you can adjust the cooking time for best result.
  • Page 14 7.2 In standby mode, after putting food in and closing the door, press the “START/+30s” . The default operating time is 30 seconds. During operation, press the “START/+30s” button once for 30 seconds. There is a buzzer sound to indicate operation completed 8.

  • Page 15: Child Lock Function

    increase cooking time by 30 seconds, Cooking time is not adjustable when using menu or weight defrost function. IWhen cooking is paused, press “START/+30s” button to continue cooking . 11. CHILD LOCK FUNCTION Use this feature to lock the control panel when you are cleaning or to prevent children from using the microwave when unsupervised.

  • Page 16: Cooking Tips

    It should not be used when cooking meat as Plastic film the over-temperature may damage the film .COOKING TIPS …… …………… … .. The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly.
  • Page 17 Steam coming out from all parts of food, not just the edge Joints of poultry can be moved easily Pork or poultry shows no cut of blood Fish is opaque and can be sliced easily with a fork Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap to come into contact with food as it may melt Microwave safe plastic cookware...

  • Page 18: Servicing Safeguards

    check your wall socket and the fuse. If both the wall socket and the fuse are functioning properly, contact our National Customer Service team for further assistance. SERVICING SAFEGUARDS Caution: MICROWAVE RADIATION high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the microwave chassis (use a screwdriver) to discharge before touching.
  • Page 19 Correct Disposal of this product This marking indicates that this product should not disposed with other household wastes throughout the EU. To prevent possible harm to environment human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 20 Warranty This product is covered under a 12 months warranty period. Kindly refer to the warranty policy terms and conditions available on Camec website. For further information or assistance, please contact our National Customer Support Team or visit Camec website.
