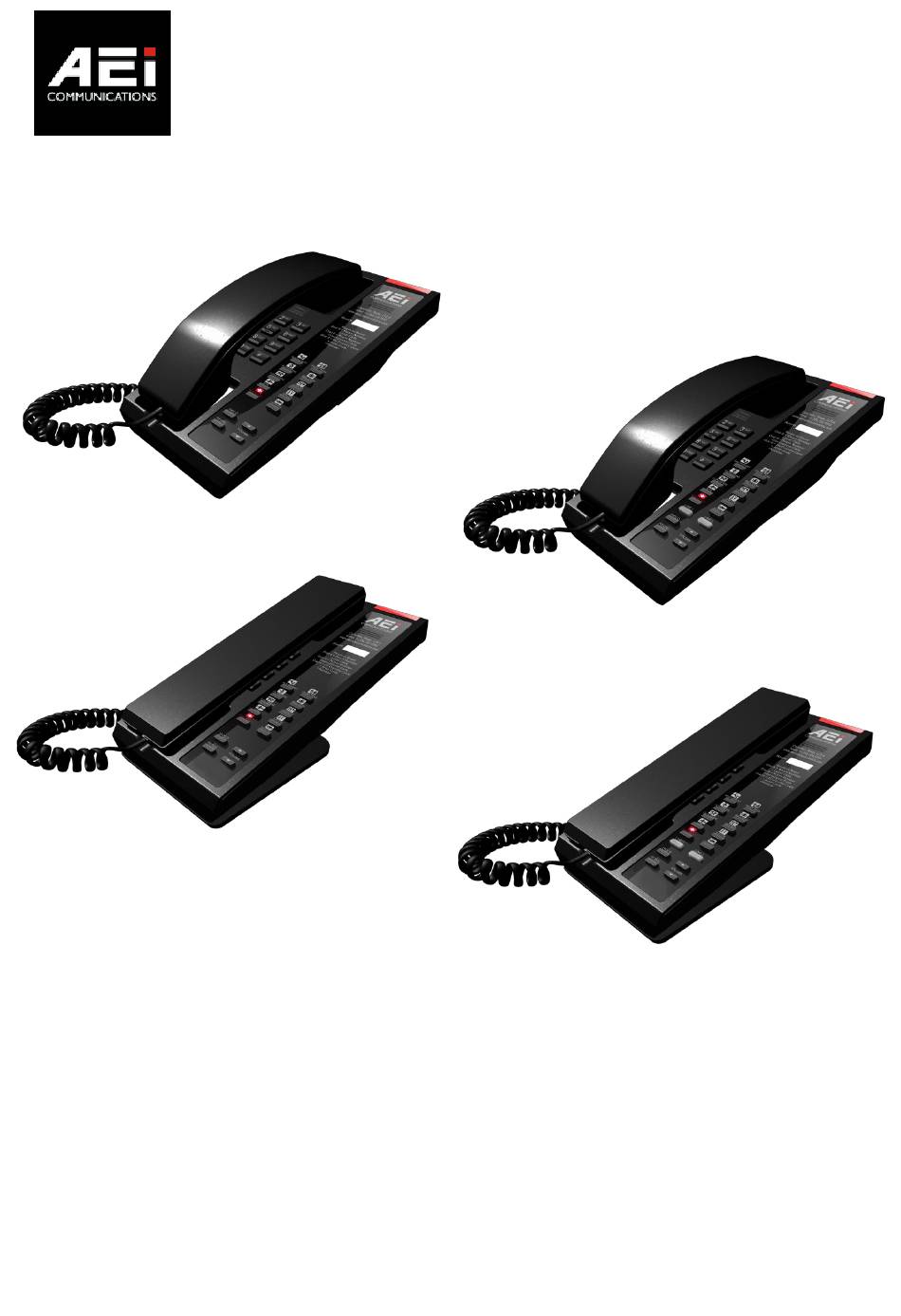

- Page 1 SKD-3X10-W, SLN-3X10-W SKD-3110-W SKD-3210-W SLN-3110-W SLN-3210-W SKD-3110-W, SKD-3210-W SLN-3110-W, SLN-3210-W User Guide V 1.0...
-
Page 2: Product Description

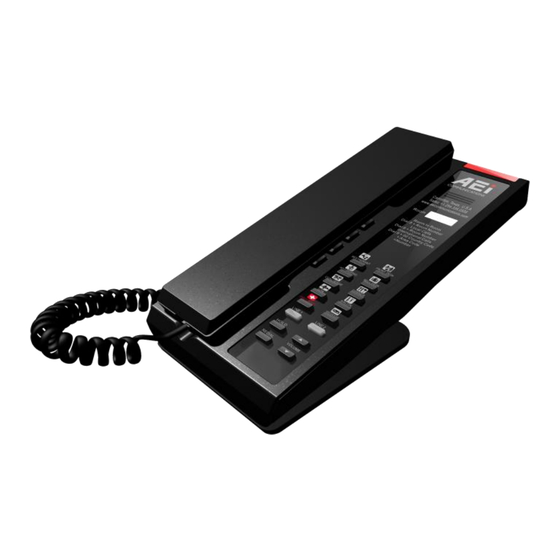

4. User Guide (This document) 2 Product Description SKD/LN-3X10-W is a Wi-Fi VoIP terminal. The purpose of this brief guide is to familiarize the reader with the AEI’s SKD/LN-3X10-W, and to guide the reader through the process of configuring the SKD/LN-3X10-W. SKD-3110-W... - Page 3 The following illustration shows how to install the phone and stand.
-
Page 4: Web Configuration
3. Web Configuration AP mode To setup the SKD/SLN-3X10-W from web configuration manually, boot the phone to the AP mode. Please power on the phone and press HOLD, *300*101#. The SKD/SLN-3X10-W will enter the AP mode. Please connect PC to the SKD/SLN-3X10-W as an access point. The SSID of AP mode is “SLN3X10”. - Page 5 After logging in, the system information shows as below. WIFI Setup the target AP Wi-Fi SSID, Password and the IP type. WIFI SSID: The target Wi-Fi AP SSID WIFI PASSWORD: The target Wi-Fi AP Password WIFI IP Type: Default is DHCP. VoIP Setup the SIP account...
- Page 6 Switch: Check “Enable” to enable SIP registration or “Disable” to disable the SIP account temporarily. Display Name: Display Name is the name of the phone or the location of the phone on the remote party. User name: User name of the SIP account, also known as user ID or extension number. Authentication Name: Authentication Name is for SIP authentication.
- Page 7 DNSSRV: (Default, Disable) Enable DNSSRV query Keep Alive: (Default, Disable) Send keep alive package to keep the SIP registration from being blocked DTMF Type: (Default, RFC 2833) DTMF for transmitting digits, * and #; select from RFC2833, SIP Info and In Band Caller ID: (Default, Disable) Display the caller id of an incoming call...
- Page 8 Speed Dial (Service Speed Dial) Configure the service speed dial keys. System Web Username: The username of web configuration portal. Default is admin. Web Password: The password of web configuration portal. Default is 1234 Dial Timeout: Default is 8...
-
Page 9: Quick Commands
Hot Line Enable: Default is Disable, when need this function, suggest to select to “3 Seconds”. Auto Upgrade: Default is Disable. Provision Server: The IP address information of the server, for example, 192.168.1.54. The phone will retrieve the .cfg file. Provision File: The name (room number) of the provision file in the root folder of the server. -
Page 10: Making And Receiving Calls
5. Operations Making and Receiving Calls Making a Call Dialing from keypad on the base Pick up the handset and enter the number with the alphanumerical keypad followed by “#” key to dial or wait 4 seconds to dial automatically. Receiving a Call An incoming call is indicated by a ringtone and a red the incoming call indicator. - Page 11 Record of Revision Date Ver. Description 2024/8/1 First issue...
