Malco FSXC2 Manual

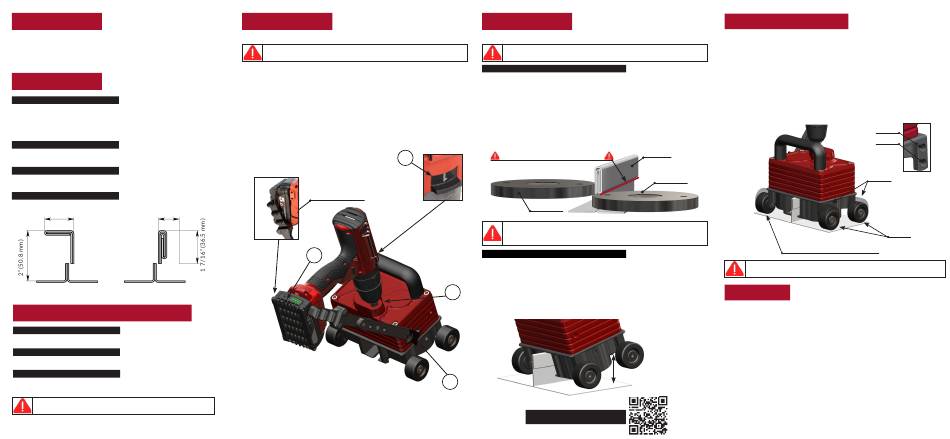

DESCRIPTION
Thank you for purchasing the FSXC2 CUTTER from Malco. The FSXC2 CUT-
TER may be used by professionals to cut the vertical leg of mechanically
seamed panels in the event the roof needs to be removed or repaired. Keep
reading to learn more about how to setup and use the FSXC2 CUTTER.
SPECIFICATIONS
MAX. THICKNESS
• Steel: 24 ga. (0.7 mm)
• Stainless steel: 26 ga. (0.5 mm)
• Aluminum, Copper, Zinc: 20 ga. (0.8 mm)
MAX. SPEED
• 49 ft./min. (15 m / min)
DEVICE WEIGHT
• 12.5 lbs. (5.67 kg)
MAX. CUTTING DIMENSIONS
13/16" (20.6 mm) 3/14" (19 mm)
Standard
Seaming Profiles
FIRST STAGE SECOND STAGE
DRILL/DRIVER REQUIREMENTS
MAX. TORQUE
• 1325 in./lb.
RECOMMENDED TORQUE
• 975 in./lb.
MIN. TORQUE
• 535 in./lb. for soft roof material
Do not use impact driver or hammer drill in hammer mode
while operating this tool.
set up
Always remove drills power source when setting up the
FSXC2 CUTTER for your own safety!
1. Install drive shaft into drill chuck. Tighten the chuck. If using a keyless
chuck we recommend tightening fully by hand then rotating the chuck
back to lock the chuck if equipped.
2. Adjust and tighten support bar.
3. Stretch the bunjee cord around the drills/drivers' battery accordingly.
4. Set drill to drill mode, set drill speed to 1 (lowest RPM), then verify the
drill is spinning clock wise, this will ensure the cutter moves in a forward
direction.
5. You are all set up and ready to go. Please move on to the operation section.
4
Special design
to adjust tension
3
operation
Check whether material thickness and roof profile dimensions are
within allowable range specified in this instruction.
TO CUT FULL LENGTH PROFILE
Before cutting the vertical leg, confirm the cutter is able to ride under the
seamed profile as shown in the image below.
1. Expose both ends of the seam to ensure the FSXC2 CUTTER may oper-
ate over the full length of the seam.
2. Position the FSXC2 CUTTER at a seam end with the seam centered be-
tween the wheels.
3. With the drill set to speed 1, use the variable speed trigger to feed the
cutter on to the seam. Once the cutter is feeding material correctly, fully
depress the trigger and cut the seam off of the roofing material.
Cutting wheels must ride under the seam.
Cutting disc
Use correct cutting position! Machine is not designed to cut the mid-
dle of the seam continuously. It is only allowed for crossing the seam
– going in and out. Do not cut more than 4 layers of metal!
TO CUT FROM THE MIDDLE OF THE PROFILE
The FSXC2 CUTTER may be started or stopped mid seam if required.
1. Center the cutter over the seam and tilt the cutting wheels down (20-30
degrees towards the direction you intend to cut.
1
2. Apply downward pressure towards the direction of cut and use the vari-
able speed trigger to feed the material into the cutter. Once the seam
has been cut, fully depress the trigger and cut the vertical leg as needed.
Tilt the drill by 20 ° to 30 °
2
and start cutting.
Video instruction
height adjustment
The FSXC2 CUTTER is height adjustable for 2" and 1.5" profiles. The cutting
discs must be positioned under the seam, and all 4 wheels need to be set to
the same height for best results.
1. Remove the wheels using the provided 5mm wrench.
2. Refasten the wheels in correct position.
3. Visually confirm the height of the cutting discs is correct for the seam
height and that all 4 wheels are contacting the material.
4. Tighten the fasteners retaining the wheels.
5. You are all set up and ready to go. Please move on to the operation section.
Roof seam
Cutting disc
Wheels must touch the sheet while cutting!
All 4 wheels must be in the same height!
warranty
• Malco Products warrants to the original customer/consumer that its
products will be free from manufacturing defects in materials or work-
manship when subject to normal and proper use.
• Should any such defect occur following original purchase, Malco Prod-
ucts will repair or replace, at its discretion, the defective product.
• Malco Products shall not be liable or responsible for labor charges or
other expenses whatsoever in connection with removal or installation
of either the original or replacement product. In the event of repair
or replacement under the terms of this warranty, the original warranty
shall apply to the repaired or replacement product.
• See full terms and conditions on our website.
1.5" (38 mm) profile
2" (50.8 mm) profile
1.5" (38 mm) profile
2" (50.8 mm) profile
