07/2024

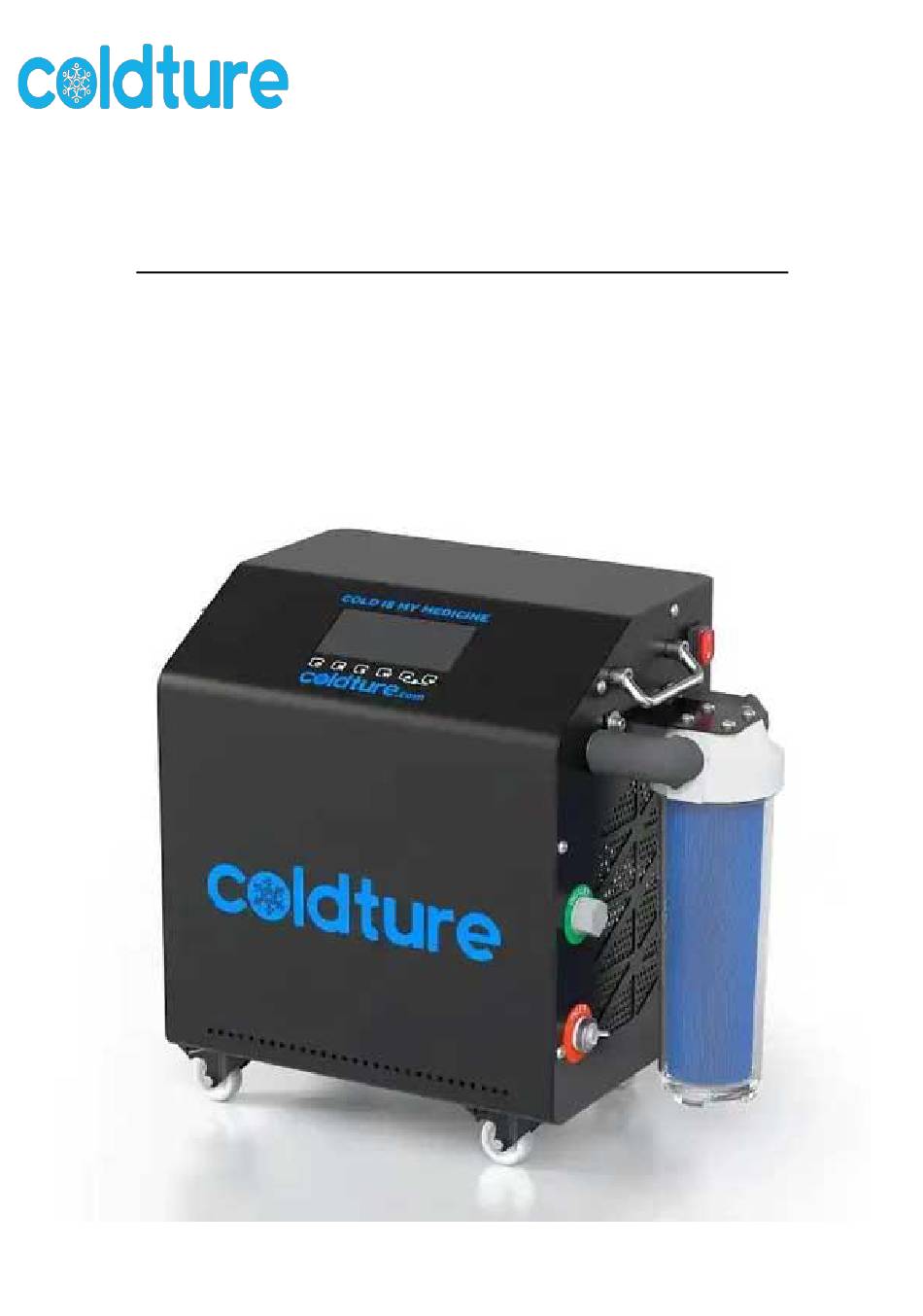

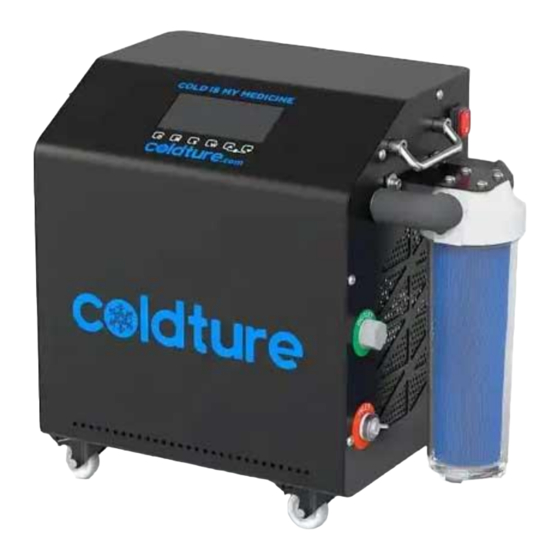

Coldture Water Chiller Installation
This manual is intended to assist in connecting the Coldture water chiller to any of
our Leisurecraft cold plunge tubs.
Please refer to the Coldture water chiller owner's manual for operation and safety
precautions of the Coldture water chiller.
tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com
Advertisement
Related Manuals for leisurecraft Polar Plunge Tub
Summary of Contents for leisurecraft Polar Plunge Tub
- Page 1 This manual is intended to assist in connecting the Coldture water chiller to any of our Leisurecraft cold plunge tubs. Please refer to the Coldture water chiller owner's manual for operation and safety precautions of the Coldture water chiller. tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com...
- Page 2 E – Two (2) – Shut-Off Valves F – One (1) – Package of O-Rings (4 Small – 4 Large) G – Two (2) – 5” Inlet/Outlet Pipes H - Two (2) – (6.8ft) Hoses with Fittings tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com...
- Page 3 Coldture Water Chiller Installation Connecting the inlet/Outlet pipes to the Leisurecraft Cold Plunge Tub Remove the plugs from the holes in the side of the tub. Wrap 3 layers of thread tape around the threads on both ends of the 2 long pipes.
- Page 4 Coldture Water Chiller Installation Connecting the inlet/Outlet pipes to the Leisurecraft Cold Plunge Tub Thread an elbow onto the upper long pipe on the side of the tub. Tighten completely with a wrench. Repeat for the bottom pipe. Thread one of the shut off valves into the upper elbow ensuring the lever is in your desired location.
- Page 5 Coldture Water Chiller Installation The Chiller tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com...
- Page 6 Coldture Water Chiller Installation Connecting the Leisurecraft Cold Plunge Tub to The Chiller Remove the filter cup from the side of the chiller. Insert the filter into the cup and screw onto the chiller. Tighten with the provided filter tool if required.
- Page 7 Fill your tub with water until it is 3” from the top of the tub. Once tub is filled, ensure the ball valves are in the open position. tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com...
- Page 8 Coldture Water Chiller Installation Control Panel 1 - Power Button Press for 2 seconds to turn the chiller on or off 2 – Mode Button Press for 5 seconds to switch between Fahrenheit and Celsius 3 – Setting Button Press for 1 second to change temperature setting. 4 - WIFI Activation Button Press for 5 seconds to engage WiFi set-up mode.
- Page 9 Coldture Water Chiller Installation Control Panel 8 - Set Temperature Shows the desired temperature setting of the tub. 9 – Water Flow Indicator Shows the water flow of the chiller in liters per minute. 10 – Mode Indicator Shows node chiller is operating in. ( “Default” is normal function) 11 –...
-
Page 10: Connecting To The App
Coldture Water Chiller Installation Connecting to the App Download and install the Tuya Smart App by scanning the QR code or by clicking on one of the below links. Apple: https://apps.apple.com/us/app/tuya-smart/id1034649547 Android: https://play.google.com/store/apps/details?id=com.tuya.smart&hl=en_US&gl=US Important Note: The Tuya smart system only works with 2.4 GHz wireless networks. Many wireless networks utilize 5 GHz and may need to be configured at 2.4 GHz. -
Page 11: Using The App
Coldture Water Chiller Installation Using the App 1. Switch - Turn the chiller On/Off 2. Lock - Touch panel Lock/Unlock 3. Temperature - Press to convert temperature units between Celsius and Fahrenheit 4. Clicks – Press to turn sound on/off 5. - Page 12 Coldture Water Chiller Installation Maintenance Initial Start-up of Cold Plunge Tub 1 - Fill the Cold Plunge Tub with Water. 2 - Add 6 grams (1/2 bottle cap) of oxidizer into the water. Wait 15 minutes 3 - Add 4 grams of sanitizer into the water. Wait 15 minutes before using the tub. Weekly Water Treatment of Cold Plunge Tub 1 –...
- Page 13 Coldture Water Chiller Installation Draining and Storing the Chiller 1 – Turn the chiller off by toggling the power switch on the back of the chiller to the down “Off” position. Turn the valves on the tub to the “closed” position. 2 - Disconnect both chiller hoses from the chiller.
-
Page 14: Warranty
WARRANTY Dundalk LeisureCraft Inc. warrants our Cold Plunge Tubs against defects in materials and workmanship under normal/residential use for a period of 5 (5) years, as applicable, from the date of receipt of the product by the original end-user consumer.
