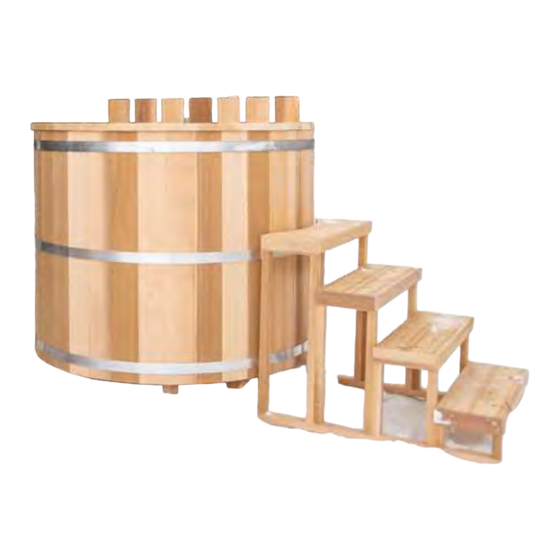

The Original Cedar Hot Tub
Assembly Instructions
Phillips & Robertson Driver Bits
View the assembly process
tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com
Requirements:
2 People (recommended)
Rubber Mallet
Tape Measure
Cordless Drill
½" Wrench/Nut Driver
¾" Wrench/Nut Driver
5/16" Drill Bit
Carpenters Hammer
05/2023
Advertisement
Related Manuals for leisurecraft The Original Cedar Hot Tub
Summary of Contents for leisurecraft The Original Cedar Hot Tub
- Page 1 05/2023 The Original Cedar Hot Tub Assembly Instructions Requirements: 2 People (recommended) Rubber Mallet Tape Measure Cordless Drill Phillips & Robertson Driver Bits ½” Wrench/Nut Driver ¾” Wrench/Nut Driver 5/16” Drill Bit Carpenters Hammer View the assembly process tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com...
- Page 2 The Original Cedar Hot Tub Assembly Instructions Parts List 450 – The Original Hot Tub 5’ Part# Description Quantity 730100 5' Half Moon Floor Section 730103 52-inch Long 4x4 Cedar for Base 730104 36-inch Short 4x4 Cedar for Base 730112 42"...
- Page 3 The Original Cedar Hot Tub Assembly Instructions Parts List 460 – The Original Hot Tub 6’ Part# Description Quantity 730101 6' Half Moon Floor Section 730105 64-inch Long 4x4 Cedar for Base 730106 48-inch Short 4x4 Cedar for Base 730112 42"...
- Page 4 The Original Cedar Hot Tub Assembly Instructions Parts List 470 – The Original Hot Tub 7’ Part# Description Quantity 730102 7' Half Moon Floor Section 730107 77-inch Long 4x4 Cedar for Base 730108 54-inch Short 4x4 Cedar for Base 730112 42"...
- Page 5 The Original Cedar Hot Tub Assembly Instructions Base Preparation Make sure the base for your Hot Tub is level. A solid base for your Hot Tub is recommended and can be made from any of the following. Concrete Pad Wood Deck...
- Page 6 The Original Cedar Hot Tub Assembly Instructions Tub Assembly To start the assembly of your hot tub, lay the 2 half moon floor sections upside down. Remove the drain assembly nut from the drain and insert the drain through the hole in the floor from the inside.
- Page 7 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Ensure the half moon floor sections are flush and secure them together using 2 ½” (64mm) screws in the pre drilled holes. With the floor still upside down, lay out the 4 cedar bases.
- Page 8 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Begin placing the hot tub staves. Ensure they are tight together and aligned with the pencil mark on the floor. Ensure they are tight together and aligned with the pencil mark on the floor.
- Page 9 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Pre assemble one of the sauna bands by placing the bolt with a nut on one end through the bolt guides on the band and thread the other nut loosely on the end.
- Page 10 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Place 4 finishing nails around the sauna measuring exactly 4” (102mm) and 21 ½” (546mm) down from the top of the staves. This will help with holding the top and middle sauna bands in place until you get them tightened.
- Page 11 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Apply PVC cement to the drain elbow and the longer adapter piece and stick them together. Repeat the above step to attach the long adapter to the shut off assembly. Place the temporary heater stand in the tub on the side where you will want the heater.
- Page 12 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Remove the heater and drill out the marks with a 5/16” drill bit. Place the heater back on the stand. Slide the provided bolts through the holes. Place a washer and nut on the end of the bolts on the outside of the tub and tighten.
- Page 13 The Original Cedar Hot Tub Assembly Instructions Tub Assembly Place the bench pieces together and secure with 2 ½” (64mm) screws in the pre drilled holes. Center the first hot tub center support and using 2 ½” (64mm) screws, secure it to the bottom of the assembled bench.
- Page 14 The Original Cedar Hot Tub Assembly Instructions 730186 -3 Tier Steps For Round Hot Tub (Optional) Place the top step of the hot tub steps (curved at the back) upside down and place 1 side of the stairs inside the lip of the side and front of step. Fasten with 2 2 ½”...
