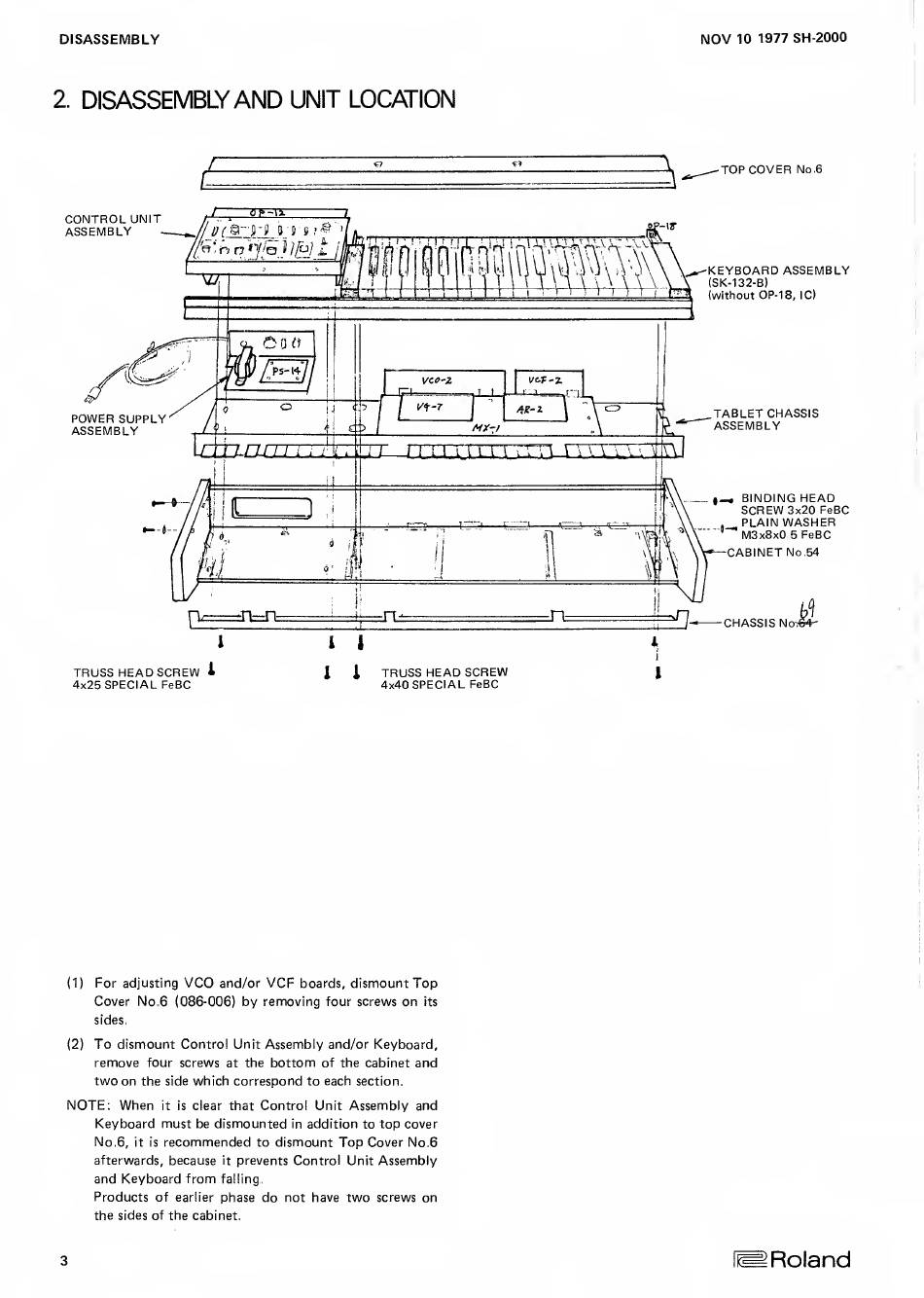

DISASSEMBLY
NOV
10
1977 SH-2000
2.
DISASSEMBLY
AND
UNIT
LOCATION
L
L
TOP
COVER
No
6
CONTROL
UNIT
ASSEMBLY
POWER SUPPLY
ASSEMBLY
KEYBOARD ASSEMBLY
(SK-132-B)
(without OP-18,
1C)
TABLET
CHASSIS
ASSEMBLY
l_ BINDING
HEAD
SCREW
3x20 FeBC
\\_
,
PLAIN
WASHER
M3x8x0
5FeBC
CABINET
No, 54
CHASSIS
No-^
TRUSS
HEAD SCREW 1
4x25 SPECIAL FeBC
i i
TRUSS
HEAD SCREW
4x40
SPECIAL FeBC
(1)
For
adjusting
VCO
and/or
VCF
boards,
dismount
Top
Cover No. 6
(086-006)
by removing
four screws
on
its
sides,
(2)
To
dismount
Control Unit
Assembly and/or Keyboard,
remove
four screws
at
the
bottom
of the cabinet
and
two
on
the side
which correspond
to
each
section,
NOTE: When
it is
clear that Control Unit
Assembly and
Keyboard must
be dismounted
in
addition to
top cover
No,
6,
it is
recommended
to dismount
Top
Cover No.
afterwards, because
it
prevents Control Unit
Assembly
and Keyboard from
falling
Products
of
earlier
phase
do
not have
two
screws
on
the
sides of
the
cabinet.
