Bosch LC1 Installation Manual

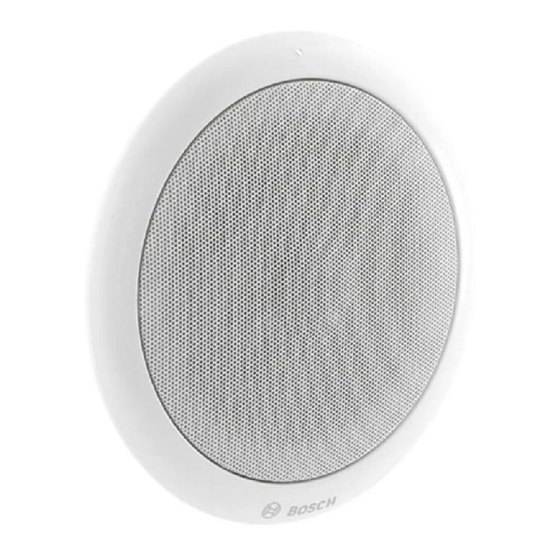

Modular ceiling loudspeaker
Hide thumbs Also See for LC1:
Table of Contents

Advertisement

Quick Links

Download this manual
LC1 Modular Ceiling Loudspeaker Range
LC1‑WC06E8 | LC1‑WM06E8 | LC1‑UM06E8 | LC1‑UM12E8 |
LC1‑UM24E8
en
Installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch LC1

Summary of Contents for Bosch LC1

  • Page 1 LC1 Modular Ceiling Loudspeaker Range LC1‑WC06E8 | LC1‑WM06E8 | LC1‑UM06E8 | LC1‑UM12E8 | LC1‑UM24E8 Installation manual...

  • Page 3: Table Of Contents

    LC1 Modular Ceiling Loudspeaker Range Table of contents | en Table of contents System Overview Housings Loudspeakers Accessories Installation LC1-MMSB LC1-CMR/LC1-CBB LC1-MFD LC1-MFDS LC1-CSMB Technical Data Electrical* Mechanical Environmental conditions Additional technical data 3.4.1 LC1-WC06E8 3.4.2 LC1-WM06E8 3.4.3 LC1-UM06E8 3.4.4 LC1-UM12E8 3.4.5...

  • Page 4: System Overview

    System Overview Housings LC1-MMSB LC1-CMR / LC1-CBB LC1-MFD LC1-CSMB LC1-MFDS Notice! To be compliant with UL-1480 the loudspeaker must be installed with the LC1-CMR including LC1-CBB or LC1-MFD or LC1-CSMB. 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 5: Loudspeakers

    LC1 Modular Ceiling Loudspeaker Range System Overview | en Loudspeakers LC1-WC06E8 LC1-MMSB LC1-WM06E8 LC1-CMR / LC1-CBB PM1-LISD LC1-MFD LC1-UM06E8 PRA-EOL LC1-MFDS LC1-UM12E8 LC1-CSMB LC1-UM24E8 Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...

  • Page 6: Accessories

    | System Overview LC1 Modular Ceiling Loudspeaker Range Accessories LM1-TB LC1-MFD LC1-MFDS LC1-CMR / LC1-CBB LC1-MMSB 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 7: Installation

    LC1 Modular Ceiling Loudspeaker Range Installation | en Installation LC1-MMSB 190 mm [7.48 in] Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 8 | Installation LC1 Modular Ceiling Loudspeaker Range Optional Max. 50 mm [1.97 in] 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 9 LC1 Modular Ceiling Loudspeaker Range Installation | en Optional PRA-EOL PM1-LISD 100V 100V 100V Notice! Standard connected to rated power at 100 V Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 10 | Installation LC1 Modular Ceiling Loudspeaker Range 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 11: Lc1-Cmr/Lc1-Cbb

    LC1 Modular Ceiling Loudspeaker Range Installation | en LC1-CMR/LC1-CBB 200 mm [7.88 in] Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 12 | Installation LC1 Modular Ceiling Loudspeaker Range Optional Max. 25 mm [0.98 in] 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 13 LC1 Modular Ceiling Loudspeaker Range Installation | en 100V 100V 100V Notice! Standard connected to rated power at 100 V Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...

  • Page 14: Lc1-Mfd

    | Installation LC1 Modular Ceiling Loudspeaker Range LC1-MFD 190 mm [7.48 in] 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 15 LC1 Modular Ceiling Loudspeaker Range Installation | en Optional Notice! Push until you hear a click Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 16 | Installation LC1 Modular Ceiling Loudspeaker Range Optional Max. 50 mm [1.97 in] PRA-EOL PM1-LISD 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 17 LC1 Modular Ceiling Loudspeaker Range Installation | en 100V 100V 100V Notice! Standard connected to rated power at 100 V Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 18 | Installation LC1 Modular Ceiling Loudspeaker Range 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 19: Lc1-Mfds

    LC1 Modular Ceiling Loudspeaker Range Installation | en LC1-MFDS 190 mm [7.48 in] Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 20 | Installation LC1 Modular Ceiling Loudspeaker Range Optional 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 21 LC1 Modular Ceiling Loudspeaker Range Installation | en Optional Max. 50 mm [1.97 in] Max. 50 mm [1.97 in] PRA-EOL PM1-LISD Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 22 | Installation LC1 Modular Ceiling Loudspeaker Range 100V 100V 100V Notice! Standard connected to rated power at 100 V 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 23 LC1 Modular Ceiling Loudspeaker Range Installation | en Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...

  • Page 24: Lc1-Csmb

    | Installation LC1 Modular Ceiling Loudspeaker Range LC1-CSMB 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 25 LC1 Modular Ceiling Loudspeaker Range Installation | en Optional PRA-EOL PM1-LISD 100V 100V 100V Notice! Standard connected to rated power at 100 V Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 26 | Installation LC1 Modular Ceiling Loudspeaker Range Optional Optional 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 27 LC1 Modular Ceiling Loudspeaker Range Installation | en Optional Optional LC1 MSK Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...

  • Page 28: Technical Data

    | Technical Data LC1 Modular Ceiling Loudspeaker Range Technical Data Electrical* LC1‑WC06E8 Description Ceiling loudspeaker Rated power 6 W (6 / 3 / 1.5 / 0.75 W) Sound Pressure Level at rated 96 dB / 88 dB power / 1 W (1 kHz, 1 m) Sound Pressure Level at rated 84 dB / 78 dB...
  • Page 29 LC1 Modular Ceiling Loudspeaker Range Technical Data | en Rated 70 V 100 V voltage 6 W 833 Ohm 1667 Ohm Rated impedance 3 W 1667 Ohm 3333 Ohm 1.5 W 3333 Ohm 6666 Ohm 0.75 W 6666 Ohm 13333 Ohm Connector 3‑pole screw-terminal block LC1‑UM12E8 LC1‑UM24E8...

  • Page 30: Mechanical

    | Technical Data LC1 Modular Ceiling Loudspeaker Range Mechanical LC1‑WC06E8 Description Ceiling loudspeaker Diameter 220 mm (8.67 in) Maximum depth* 125 mm (4.92 in) Color White (RAL 9010) Material (frame / front grille) Weight 820 g (1.81 lb) LC1‑WM06E8 LC1‑UM06E8 Description Ceiling loudspeaker Ceiling loudspeaker Diameter 220 mm (8.67 in)
  • Page 31      Chain length 320 mm (12.59 in)      Tile rails 643 x 34 mm (25.33 x 1.34 in)      C‑Ring 250 x 30 mm (9.85 x 1.18 in) Material Steel Steel Color Zinc plated Zinc plated Weight 939 g (2.07 lb) 174 g (0.38 lb) * with LC1‑MMSB mounting support bracket Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...

  • Page 32: Environmental Conditions

    | Technical Data LC1 Modular Ceiling Loudspeaker Range Environmental conditions Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF) Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF) Relative humidity <95% 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V.

  • Page 33: Additional Technical Data

    LC1 Modular Ceiling Loudspeaker Range Technical Data | en Additional technical data 3.4.1 LC1-WC06E8 62 mm (2.44 in) 23 mm (0.9 in) 39 mm (1.53 in) Figure 3.1: Dimensions 1.5W 0.75W 1.5W 0.75W 100V Figure 3.2: Circuit diagram 1000 10000 100000 Figure 3.3: Frequency response...
  • Page 34 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LC1‑WC06E8 Acoustical performance specified per octave. * (all measurements are done with a pink noise signal; the values are in dBSPL). 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 35: Lc1-Wm06E8

    LC1 Modular Ceiling Loudspeaker Range Technical Data | en 3.4.2 LC1-WM06E8 66 mm (2.59 in) 23 mm (0.9 in) 43 mm (1.69 in) Figure 3.4: Dimensions 1.5W 0.75W 1.5W 0.75W 100V Figure 3.5: Circuit diagram 11 0 1000 10000 100000 Figure 3.6: Frequency response...
  • Page 36 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LC1‑WM06E8 Acoustical performance specified per octave. * (all measurements are done with a pink noise signal; the values are in dBSPL). 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 37: Lc1-Um06E8

    LC1 Modular Ceiling Loudspeaker Range Technical Data | en 3.4.3 LC1-UM06E8 Figure 3.7: Dimensions 1.5W 1.5W 0.75W 0.75W 100V Figure 3.8: Circuit diagram BOSCH 1000 10000 100000 Figure 3.9: Frequency response 1000 1000 2000 4000 8000 Polar diagrams Octave band sensitivity LC1-UM06E8 Octave SPL...
  • Page 38 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LC1‑UM06E8 Acoustical performance specified per octave. * (all measurements are done with a pink noise signal; the values are in dBSPL). Sound pressure level @ 10 feet (3.1 m) Voltage (Vrms) Tap (W) OSPL (dBA) @ 10 ft...

  • Page 39: Lc1-Um12E8

    LC1 Modular Ceiling Loudspeaker Range Technical Data | en 3.4.4 LC1-UM12E8 Figure 3.10: Dimensions 1.5W 1.5W 100V Figure 3.11: Circuit diagram 1000 10000 100000 Figure 3.12: Frequency response pink noise octave 1000 1000 2000 4000 8000 Polar diagrams Octave band sensitivity LC1-UM12E8 Octave SPL...
  • Page 40 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LC1‑UM12E8 Acoustical performance specified per octave. * (all measurements are done with a pink noise signal; the values are in dBSPL). Sound pressure level @ 10 feet (3.1 m) Voltage (Vrms) Tap (W) OSPL (dBA) @ 10 ft...

  • Page 41: Lc1-Um24E8

    LC1 Modular Ceiling Loudspeaker Range Technical Data | en 3.4.5 LC1-UM24E8 Figure 3.13: Dimensions 100V Figure 3.14: Circuit diagram BOSCH 1000 10000 100000 Figure 3.15: Frequency response 1000 1000 2000 4000 8000 Polar diagrams Octave band sensitivity LC1-UM24E8 Octave SPL Total octave SPL Total octave SPL...
  • Page 42 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LC1‑UM24E8 Acoustical performance specified per octave. * (all measurements are done with a pink noise signal; the values are in dBSPL). 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...

  • Page 43: Ec Declaration Of Conformity

    LC1 Modular Ceiling Loudspeaker Range Technical Data | en EC declaration of conformity 1438 Bosch Security Systems BV Torenallee 49,5617 BA Eindhoven, the Netherlands Loudspeaker for voice alarm system type LC1-WC06E8, EN 54-24 LC1-WM06E8, For use only with LC1-UM06E8, 1438-CPR-0194...

  • Page 44: Certifications And Approvals

    IEC‑68‑2‑11 Ka Valid for LC1-WC06E8, LC1-WM06E8, LC1-UM06E8, LC1-UM12E8, LC1-UM24E8 and LC1- PIB. Only in combination with the LC1‑MFD or LC1-CSMB (+LC1-MSK) or LC1-CMR + LC1-CBB or LC1-MFDS. Only in combination with the LC1‑MFD or LC1‑CMR including LC1‑CBB or LC1-MFDS.
  • Page 45 LC1 Modular Ceiling Loudspeaker Range Certifications and approvals | Bosch Security Systems B.V. 2024.01 | V03 | F.01U.406.762 Installation manual...
  • Page 46 | Certifications and approvals LC1 Modular Ceiling Loudspeaker Range 2024.01 | V03 | F.01U.406.762 Bosch Security Systems B.V. Installation manual...
  • Page 48 Building solutions for a better life. 202401261657...

This manual is also suitable for:

Lc1-wc06e8Lc1-wm06e8Lc1-um06e8Lc1-um12e8Lc1-um24e8
