Service Manual
Car Audio
MODEL : ACP-0108 Series
0106Series
ACP-0106A
4-Channel high Power (40W x 4Ch)
Electronic Tuning
Electronic Volume/Bass/Treble/Balance/Fader
Control
42 Memory Capability (18FM+12MW+12LW)
Local/DX Switch
Loudness & Mute Control
Compact Disc Player
Detachable Face for Anti-Theft
10 CD-changer control(Option)
Telephone Mute Control
DAEWOO ELECTRONICS CO., LTD
http://svc.dwe.co.kr
S/M No : ACP0108EF0
5010Series
CDP-0105A
ACP-5010RDS
ACP-5010RC
ACP-5010C
ACP-5010
AKP-5010RDS
Mar. 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACP-0106 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo ACP-0106 Series

Summary of Contents for Daewoo ACP-0106 Series

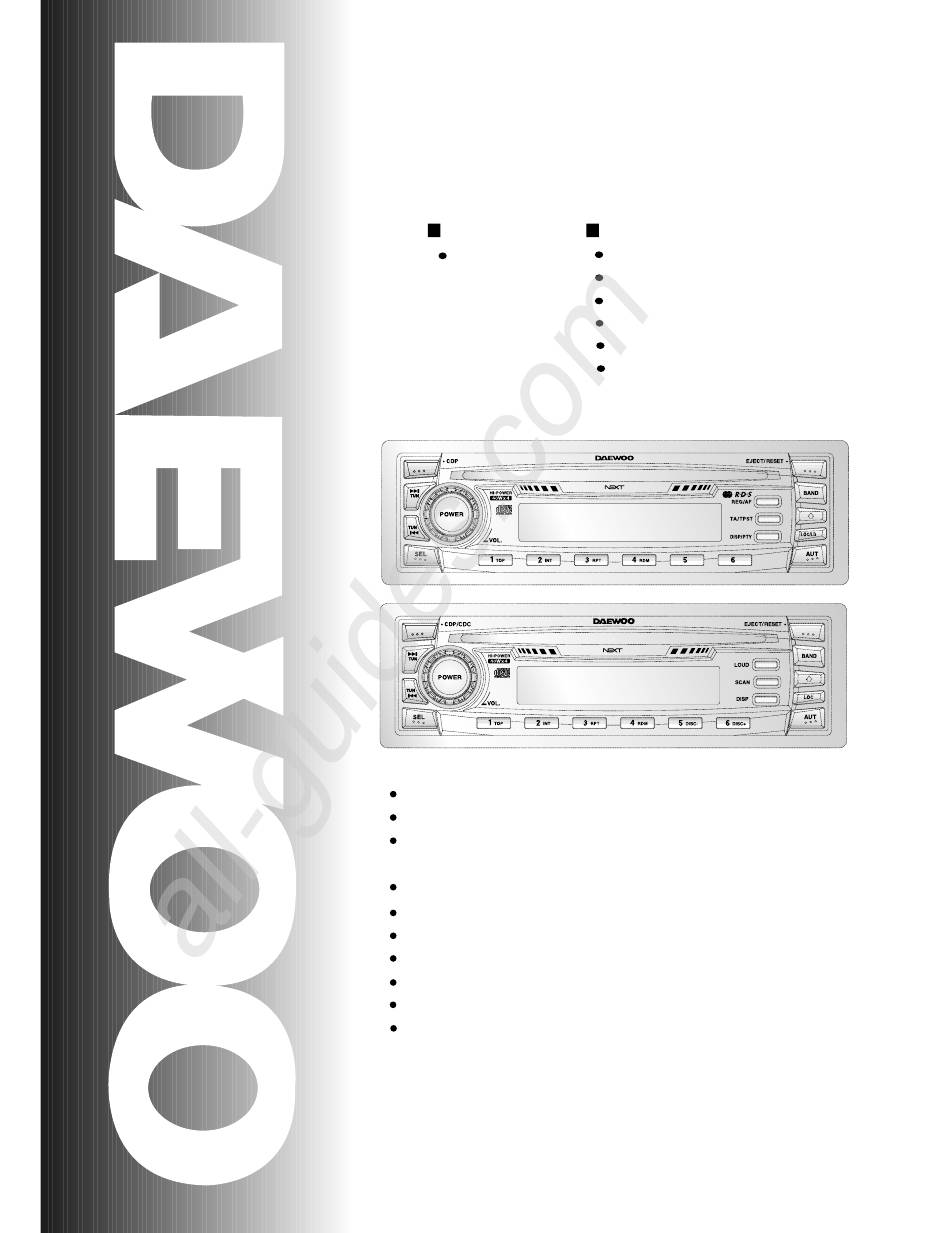

  • Page 1 4-Channel high Power (40W x 4Ch) Electronic Tuning Electronic Volume/Bass/Treble/Balance/Fader Control 42 Memory Capability (18FM+12MW+12LW) Local/DX Switch Loudness & Mute Control Compact Disc Player Detachable Face for Anti-Theft 10 CD-changer control(Option) Telephone Mute Control DAEWOO ELECTRONICS CO., LTD http://svc.dwe.co.kr Mar. 2001...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS 1. PRODUCT SPECIFICATIONS ..........1 2. LINE DRAWING ................2 3. EMERGENCY TROUBLE SHOOT ..........3 4. ADJUSTMENTS ................6 5. SCHEMATIC DIAGRAM ............11 6. PARTS LOCATION ON P.C.BOARD ........12 7. OVERALL EXPLODED VIEW & PARTS LIST .......15 8.

  • Page 3: Product Specifications

    All manuals and user guides at all-guides.com 1. PRODUCT SPECIFICATIONS AUDIO SECTION Maximum output power : 40watts per channel into 4 ohms. Load impedance : 4 ohms or 8 ohms Total harmonic distortion : Less than 10% at 12 watts : 100Hz( + 3dB), 10kHz(-5 + 3dB) Frequency response : 10 + 3dB at 100Hz/10kHz...

  • Page 4: Line Drawing

    All manuals and user guides at all-guides.com 2. LINE DRAWING 2-1. FRONT SIDE ACP-0108RDS Serise - RDS Function - Compact Disc Player - 4-Channel high Power (40W x 4Ch) - Electronic Tuning - Electronic Volume /Bass /Treble /Balance /Fader Control - 42 Memory Capability (18FM+12MW+12LW) - Local/DX Switch - Loudness &...

  • Page 5: Emergency Trouble Shoot

    All manuals and user guides at all-guides.com 3. EMERGENCY TROUBLE SHOOT 3-1. General Function Put exactly output Output connector No sound from connector in. is missing speakers Change output Output connector connector to is inferior goods superior goods Change Power IC, Power IC, Output Output Socket to Socket is inferior...
  • Page 6 All manuals and user guides at all-guides.com EMERGENCY TROUBLE SHOOT 3-2. Tuner Function Select exactly No selected the broadcasting Hearing noise station frequency. only CAT-7 Ref. Change tuner Tuner Module is Adjustments/Tuner module to inferior goods. superior goods. Weak frequency Change to goods of Extreme noise area caused by...
  • Page 7 All manuals and user guides at all-guides.com EMERGENCY TROUBLE SHOOT 3-3. CD Function Take out Disc There is Disc in Disc is not from the slot the slot inserted. Use only superior Disc is inferior No sound disc goods disc was inserted Insert CD with label side down upside down...

  • Page 8: Adjustments

    All manuals and user guides at all-guides.com 4. ADJUSTMENTS 4-1. TUNER MODULE ADJUSTMENT LOCATIONS CAT-7 (3 Band) CAT-6 (2 Band)
  • Page 9 All manuals and user guides at all-guides.com ADJUSTMENTS 4-2. MW / LW ADJUSTMENT METHOD TEST STEP ALIGNMENT TUNING ALIGNMENT INDICATOR POSITION FREQUENCY 522 KHz 522 KHz AMOSC MAXIMUM Band Covering V.T point of Range AM Board 1620 KHz 1620 KHz 7.6V Output 450 KHz...
  • Page 10 All manuals and user guides at all-guides.com ADJUSTMENTS 4-3. FM ADJUSTMENT METHOD FEED SIGNAL MEASURE ADJUST STEP SUBJECT ADJUSTMENT OUTPUT POINT FROM 98.1 MHz, ANT The voltage input 60dBu, 1kHz ANT jack Adjust for 0V IF adjust FM DET (30% MOD) FM and GND between CW03 0.05V...
  • Page 11 All manuals and user guides at all-guides.com ADJUSTMENTS 4-4. CDP MODE TEST & ADJUSTMENT METHOD Definition of Mechanical Mode MODE DEFINITION & STATUS - Disc haven’t been inserted or disc have been ejected. When disc shall be transported STOP MODE into the unit Mechanism shall be fixed at this mode.
  • Page 12 All manuals and user guides at all-guides.com ADJUSTMENTS SPECIFIED VALUES, CONDITIONS CONNEC ITEMS TEST CONDITIONS, REFERENCES TION STANDARD VALUES RELIABILITY LIMITS > 130g Clamping Force > 130g Mechanical Loading Eject -Test should be performed in no reverberation If anything is not Noise <...

  • Page 13: Schematic Diagram

    All manuals and user guides at all-guides.com 5. SCHEMATIC DIAGRAMS for ACP-0108Seires OPTION RDS Function CDC Function...

  • Page 14: Parts Location On P.c.board

    All manuals and user guides at all-guides.com 6. PARTS LOCATION ON P.C. BOARD 6-1. PCB MAIN PART SIDE...
  • Page 15 All manuals and user guides at all-guides.com PARTS LOCATION ON P.C. BOARD for ACP-0108Series BOTTOM SIDE...
  • Page 16 All manuals and user guides at all-guides.com PARTS LOCATION ON P.C. BOARD for ACP-0108Series 6-2. PCB FRONT PART SIDE BOTTOM SIDE...

  • Page 17: Overall Exploded View & Parts List

    All manuals and user guides at all-guides.com for ACP-0108Seires 7. OVERALL EXPLODED VIEW & PARTS LIST...

  • Page 18: Deck Mechanism Exploded View&Parts List

    All manuals and user guides at all-guides.com for ACP-0108Seires 8. DECK MECHANISM EXPLODED VIEW&PARTS LIST...
  • Page 19 All manuals and user guides at all-guides.com DECK MECHANISM EXPLODED VIEW & PARTS LIST for ACP-0108 Series 8-1. PARTS LIST for DCM-200/201 MARK PART NAME PART NO. Q’TY CHASSIS SIDE TOTAL ASSY CHASSIS SIDE ASSY 97LA202300 LOCK PLATE R ASSY 97LA202400 WASHER CUT D4xD2xT0.25 97L3101500...
  • Page 20 All manuals and user guides at all-guides.com DECK MECHANISM EXPLODED VIEW & PARTS LIST for ACP-0108 Series PART NAME PART NO. Q’TY MARK GEAR SLED SCREW 97L2702700 SLIDER RACK 97L5200300 SPG SLED INSERT 97L5200100 SCREW MACHINE PAN M1.7x3 97L3102100 HOLDER FEED MOTOR 97L2301100 GEAR CENTER 97L2702800...
  • Page 21 All manuals and user guides at all-guides.com DECK MECHANISM EXPLODED VIEW & PARTS LIST for ACP-0108 Series PART NAME PART NO. Q’TY MARK GEAR RELAY 2 97L2703000 GEAR RELAY 1 97L2702900 WASHER CUT D6xD2.6xT0.25 97L3101600 WASHER CUT D4xD1.6xT0.25 97L3101400 ROLLER BUSH 97L3701100 BRACKET DOOR 97L2401400...

  • Page 22: Electrical Parts List

    All manuals and user guides at all-guides.com for ACP-0108Series 9. ELECTRICAL PARTS LIST CAUTION is a recommendable part for essential stock. 9-1. MAIN SECTION PART CODE DESCRIPTION PART NAME 97T8860900 RCA 100 E3P20(B) CONN AS CN103 CONNECTOR 97T6234800 PCE 100D-18RR-K(BK) CW101 CONN DETACHABLE 97T62150A0...
  • Page 23 All manuals and user guides at all-guides.com PARTS LIST for ACP-0108Series PART CODE DESCRIPTION PART NAME TZRA105M-- KRA-105M Q105,Q110 TZTC3205Y- KTC3205Y (2236Y) Q106,Q212 Q202,Q301 TZDTC323TS DTC323TSA SPT Q302 TZTC3198Y- KRC102M(KEC) Q507,Q508 TZTA1267Y- KTA1267Y TAPPING Q506 9-2. FRONT SECTION PART CODE DESCRIPTION PART NAME 97TCFA60GD...
  • Page 24 All manuals and user guides at all-guides.com PARTS LIST for ACP-0108Series PART CODE DESCRIPTION PART NAME PNFRMBKT00 ACP-0106R PCB FRONT AS 11001 CONN DETACHABLE 97T62150B0 FP.P-14-3.4-GG CW104 97T0L1600P LS-09058P00 DB3803X(BLUE) DDB3803X-- LD402,LD403 PL501,PL502 PL503,PL504 LAMP PILOT 97T82L6W95 9V50MA PL505,PL506 PL507,PL508 5S52643CL1 SW TACT 1C-1P SKMA 1018A 260G...
  • Page 25 All manuals and user guides at all-guides.com E.PARTS LIST for ACP-0108Series 9-4. PCB FM 1-CHIP AS SECTION PART NAME PART CODE DESCRIPTION 5105AYWA35 5DL-C5167 IFT AM IFT OSC 5105ARDA34 5DL-C5146 AOSC IFT MW RF1 5105AWHA32 5DL-C5165 ARF01 IFT MW RF2 5DP-N5166 5105AGNA33 ARF02...

  • Page 26: Function Of Micom Ic

    All manuals and user guides at all-guides.com 10. FUNCTION OF MICOM IC 10-1. PIN CONFIGURATION (TOP VIEW)
  • Page 27 All manuals and user guides at all-guides.com FUNCTION OF MICOM IC UPD178016GC for ACP-0108 Seriese 10-2. PIN DESCRIPTION ASSIGN NAME DESCRIPTION P_XIN 4.5 MHz CRYSTAL P_XOUT P_VDD VDDPORT PERMANENT POWER INPUT PORT )MAX : 6.5V P_VDD VDDPLL P_VDD P_GND GNDPORT GROUND P_GND GNDPLL...
  • Page 28 All manuals and user guides at all-guides.com FUNCTION OF MICOM IC UPD178016GC for ACP-0108 Series ASSIGN NAME DESCRIPTION P125 WARNING LED OUTPUT PORT. P_WLED OUT PUT CONDITION : PANEL OFF T : 1Sec TELEPHONE MUTE (ACTIVE LOW) P_PHONE SE KEY INPURT PORT (ACTIVE LOW) P12/AN12 P-SE P123...
  • Page 29 All manuals and user guides at all-guides.com FUNCTION OF MICOMIC UPD178016GC for ACP-0108 Series ASSIGN NAME DESCRIPTION FM VCO INPUT PORT. P_FMVCO VCOH INPUT RANGE : 0.07 1.5 Vrms AM VCO INPUT PORT. VCOL P_AMVCO INPUT RANGE : 0.07 1.5 Vrms FM IF COUNT INPUT PORT.
  • Page 30 All manuals and user guides at all-guides.com FUNCTION OF MICOMIC UPD178016GC for ACP-0108 Series ASSIGN DESCRIPTION NAME TAPE MODE OUTPUT PORT. P_TAPE P132/PWM0 TAPE CASSETTE CONDITION CHECK PORT P_TAPE IN LOW : EJECT CONDITION HIGH : LOADING CONDITION TAPE FWD/RVS PLAY CONDITION INPUT PORT P_FWD IN RVS : HIGH FWD : LOW TAPE PLAY/FF CONDITION INPUT PORT...
  • Page 31 All manuals and user guides at all-guides.com MATRIX TABLE OF KEY & OPT. DIODE for ACP-0108 Series KEY MATRIX TABLE : Return KI 1 (50) KI 2 (51) KI 3 (52) KI 4 (53) KI 5 (54) Source LOC/LOUD KS 6 (49) T.UP T.DOWN (B:LOC)

  • Page 32: Ic Block Diagram

    All manuals and user guides at all-guides.com 11. IC BLOCK DIAGRAM 11-1. LC75854 (IC LCD DRIVER) :IC401...
  • Page 33 All manuals and user guides at all-guides.com IC LOCK DIAGRAM 11-2. SAA6579T (IC Audio):IC101...
  • Page 34 All manuals and user guides at all-guides.com IC BLOCK DIAGRAM 11-3. TDA8571J (IC Audio Power):IC304...
  • Page 35 All manuals and user guides at all-guides.com IC BLOCK DIAGRAM 11-4. LC75371M (IC EVR) : IC303...

  • Page 36: Liquid Crystal Display

    All manuals and user guides at all-guides.com 12. LIQUID CRYSTAL DISPLAY 12-1. AKL-5010RC IC NO LCD NO. COM1 T2 TRACK 8H COL1 COM2 CD RPT 1B COM3 MY RDM 1C COM4 LOUD IC NO LCD NO. COM1 DICS LOC 6H 6A COL AUT 5H PTY 4H COM2...

  • Page 37: Output Connection Descriptions

    All manuals and user guides at all-guides.com 13. OUTPUT CONNECTOR DESCRIPTIONS 13-1. 26 Pin CONNECTOR The pins in the ISO connector have the following functions (connector seen from the rear) A. ELECTRIC CONNECTIONS 1. T.Mute : Brown 4. Back-up+12V : YELLOW 5.
  • Page 38 All manuals and user guides at all-guides.com OUTPUT CONNECTOR DESCRIPTION 13-3. 13PIN CONNECTOR 1 REAR LEFT SP(-) REAR RIGHT SP(+) REAR RIGHT SP(-) NEGATIVE GROUND AUTO ANT RIGHT (ILLUMINATION) ACC B(+)POWER BATTERY B+(BACK-UP) FRONT RIGHT SP(+) FRONT RIGHT SP(-) FRONT LEFT SP(+) FRONT LEFT SP(-) REAR LEFT SP(+) 13-4.
  • Page 39 All manuals and user guides at all-guides.com DAEWOO ELECTRONICS CO., LTD 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX : DWELEC K28177-8 CABLE : “DAEWOOELEC” E-mail : G7F00E@web.dwe.co.kr TEL : 82-2-360-7799 FAX : 82-2-360-7877 AKR0108EFO 010301 Mc. Cem...
