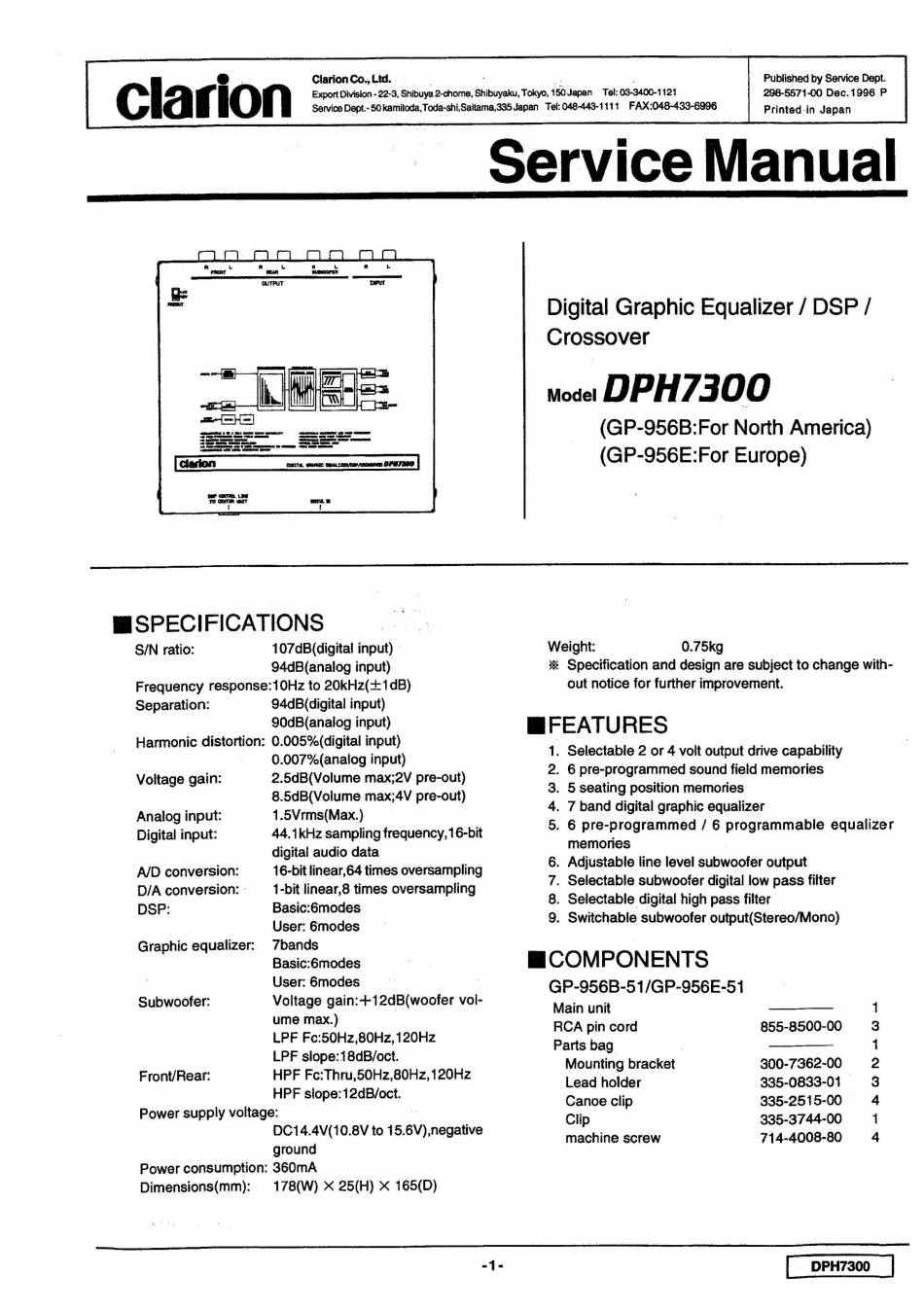

Clarion DPH7300 Service Manual

Clarion DPH7300 Service Manual

Digital graphic equalizer / dsp / crossover

Advertisement

Quick Links

Clarion Co., Ltd.
Published by Service Dept.
298-5571-00 Dec.1996 P
Printed-in Japan
Service Manual
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Tel: 09-3400-1121
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335 Japan Tel: 048-443-1111
FAX:048-433-6996

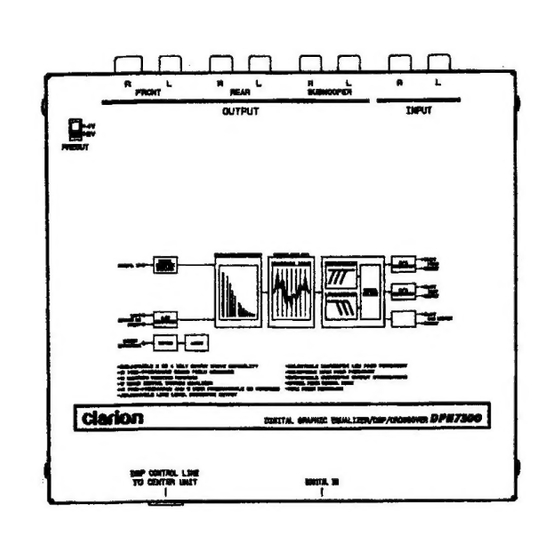

Clario
Digital Graphic Equalizer / DSP /
Crossover
uodet DPH7300
(GP-956B:For North America)
(GP-956E:For Europe)
S/N ratio:
107dB(digital input) —
94dB(analog input)
Frequency response: 10Hz to 20kHz(+1dB)
Separation:
94dB(digital input)
90dB(analog input)
Harmonic distortion: 0.005%(digital input)
0.007%(analog input)
Voltage gain:
2.5dB(Volume max;2V pre-out)
8.5dB(Volume max;4V pre-out)
Analog input:
1.5Vrms(Max.)
Digital input:
44.1kHz sampling frequency, 16-bit
digital audio data
A/D conversion:
16-bit linear,64 times oversampling
D/A conversion:
___1-bit linear,8 times oversampling
DSP:
Basic:6modes
User: 6modes
Graphic equalizer:
7bands
Basic:6modes
User: 6modes
Voltage gain:+12dB(woofer vol-
ume max.)
LPF Fco:50Hz,80Hz, 120Hz
LPF slope: 18dB/oct.
HPF Fe:Thru,50Hz,80Hz,
120Hz
HPF slope: 12dB/oct.
Power supply voltage:
DC14.4V(10.8V to 15.6V), negative
ground
Power consumption: 360mA
Dimensions(mm):
178(W) X 25(H) * 165(D)
Subwoofer:
Front/Rear:
Weight:
0.75kg
* Specification and design are subject to change wiih-
out notice for further improvement.
mFEATURES
1. Selectable 2 or 4 volt output drive capability
2. 6 pre-programmed sound field memories
3. 5 seating position memories
4. 7 band digital graphic equalizer
5. 6 pre-programmed / 6 programmable equalizer
memories
6. Adjustable line level subwoofer output
7. Selectable subwoofer digital low pass filter
8. Selectable digital high pass filter
9. Switchable subwoofer output(Stereo/Mono)
MCOMPONENTS
GP-956B-51/GP-956E-51
Main unit
——_——
1
RCA pin cord
855-8500-00
3
Parts bag
|
——_——
1
Mounting bracket
300-7362-00
2
Lead holder
335-0833-01
3
Canoe clip
335-2515-00
4
Clip
335-3744-00
1
machine screw
714-4008-80
4
=e
DPH7300
