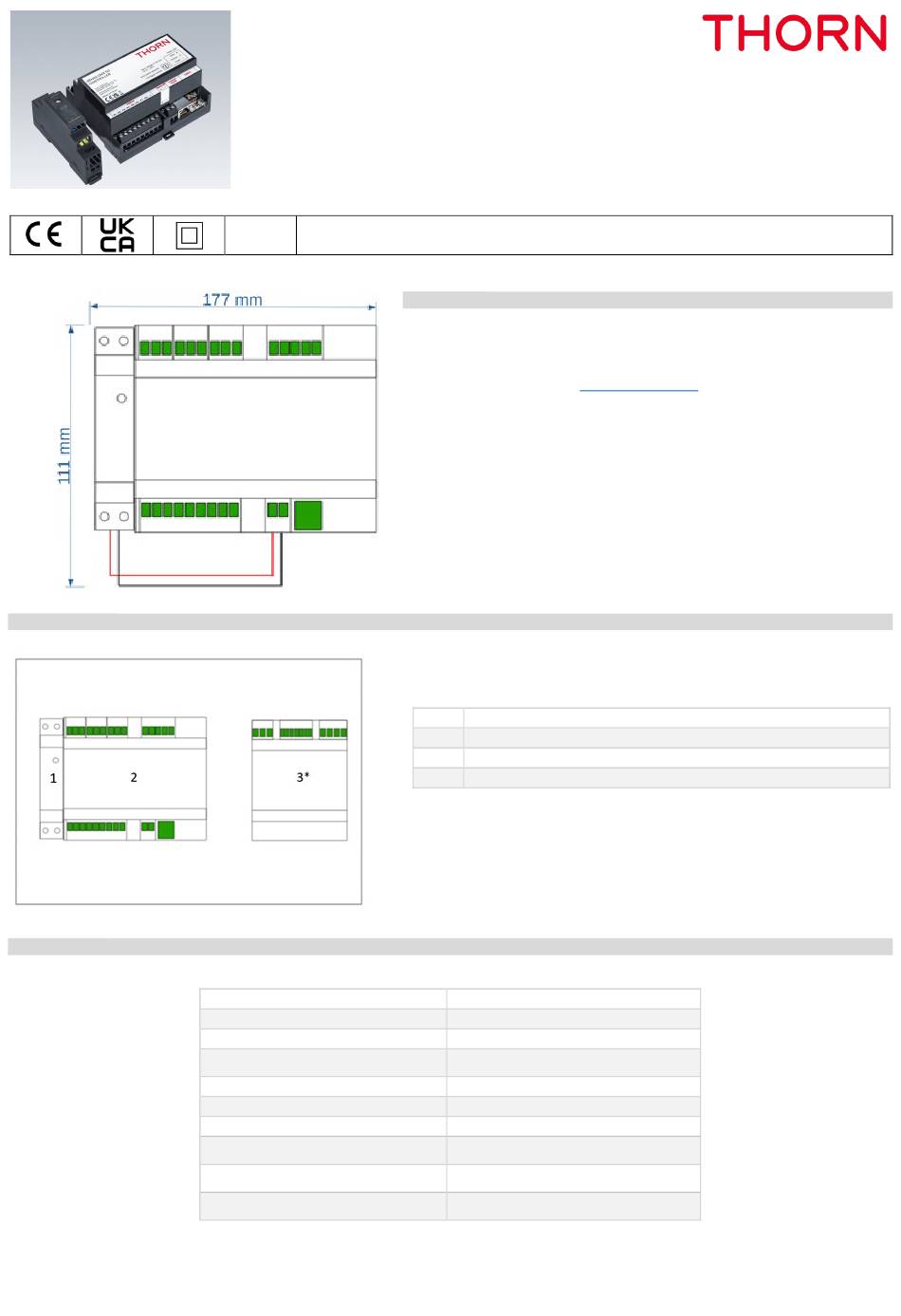

Thorn SENSA DMX G2 Quick Start Manual

Product features
Technical Data
Thorn Lighting is constantly developing and improving its products. The right is reserved to change specifications without prior notification or public announcement. ©
Parameters
Input Voltage
Input power
DMX 512 Port
Connections
Dimensions
Weight
SENSA DMX G2 POWER SUPPLY -
Operating temperature
SENSA DMX G2 CONTROLLER –
Operating temperature
SENSA DMX G2 RDM SPLITTER 4CH –
Operating temperature

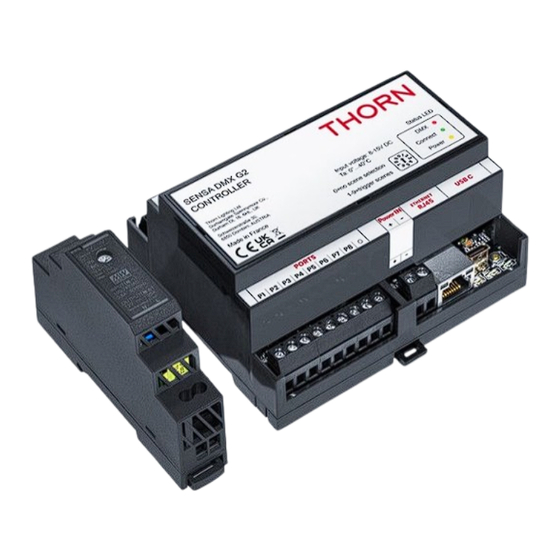

SENSA DMX G2 CONTROLLER KIT
DMX controller for DIN rail mounting
Presentation
Stand-alone one universe DMX controller ready to use. Programmable with Nicolaudie ESA2
software. Supplied with USB cable. Can be completed with SENSA DMX G2 RDM
SPLITTER 4CH.
Technical datasheet available on
The system needs to be powered up constantly due to potential risk of the internal clock
delay.
One resistor 120 ohms is included, it must be mounted on the DMX end of line.
WARNING:
• DO NOT PERMANENTLY REMOVE THE NUT OR THE RUBBER OF CABLE
GLANDS.
THE PRODUCT MUST BE INSTALLED IN A VERTICAL OR HORIZONTAL POSITION
•
WITH THE COVER / LABEL UPWARDS OR VERTICALLY. OTHER POSITIONS ARE NOT
PERMITTED.
Pos.
1
2
3 * SENSA DMX G2 RDM SPLITTER 4CH (Article number 96222781)
Value
110 / 230 V AC – 50 / 60 Hz
< 15 W
1 output (if no use of splitter option)
4 outputs (with use of splitter option)
Screw connectors for cable 2,5mm² maxi
207 x 111 x 100 mm
380 g
-30...+50°C
0...+40°C
-40...+50°C
Thorn Lighting
Art. No.
www.thornlighting.com
Description
SENSA DMX G2 POWER SUPPLY
SENSA DMX G2 CONTROLLER
96222780
*to order apart
