Thorn 96222779 Manual

Product features
Technical Data
Thorn Lighting is constantly developing and improving its products. The right is reserved to change specifications without prior notification or public announcement. ©
IP 66
Parameters
Input Voltage
Input power
DMX 512 Port
Connections
Dimensions
Weight
Operating temperature

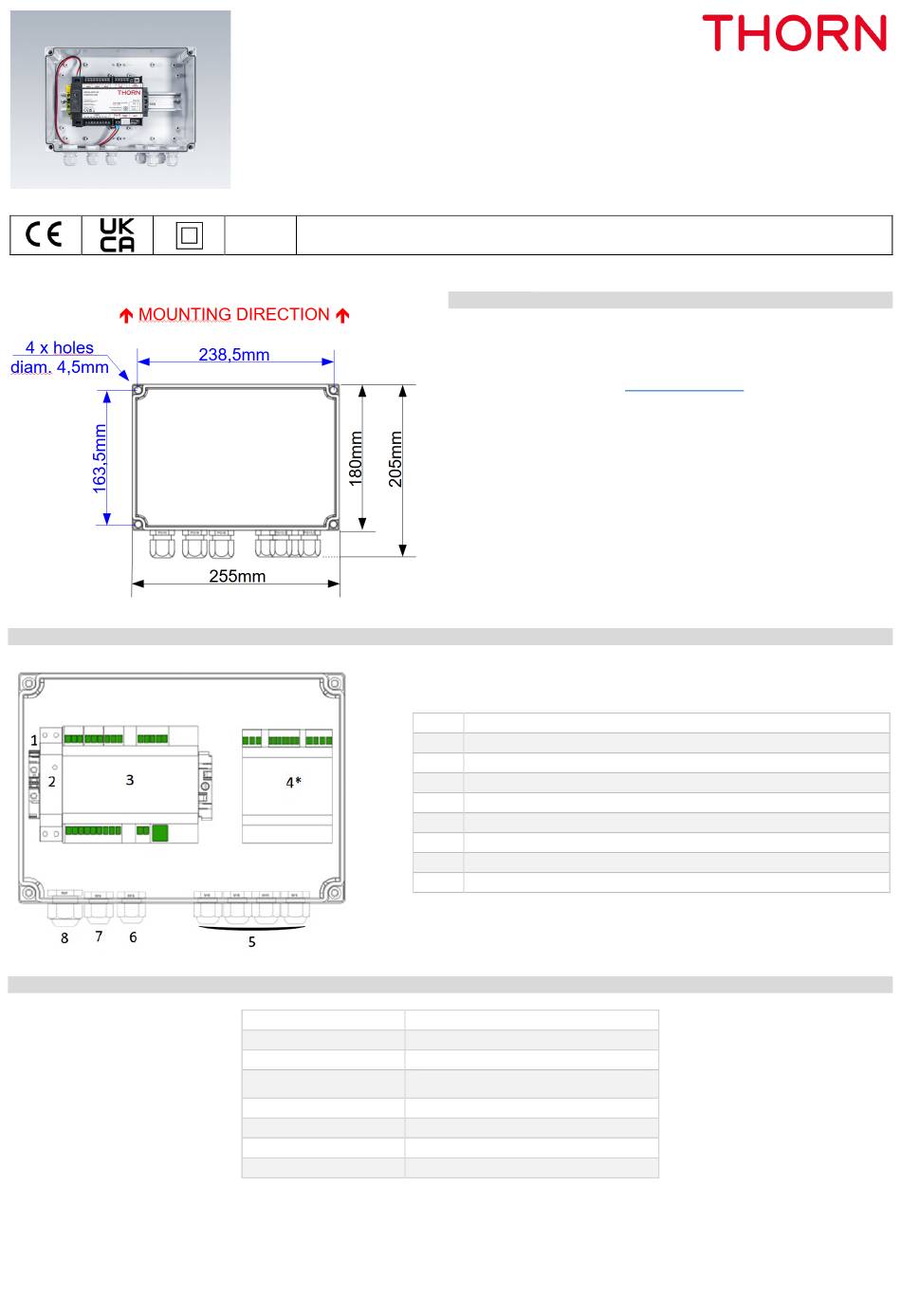

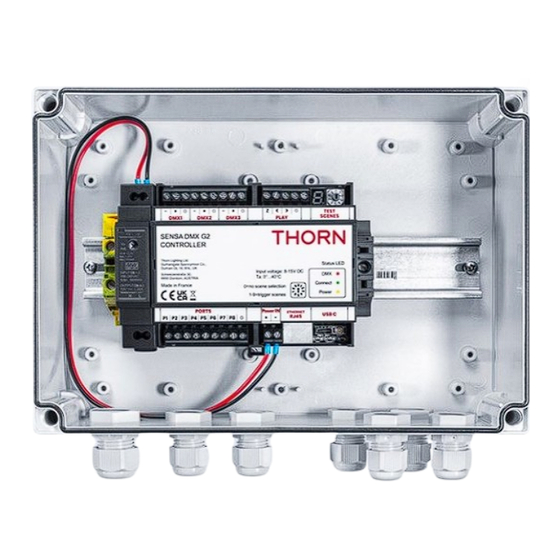

SENSA DMX G2 CONTROLLER BOX IP66
Pre-wired DMX controller kit in IP66 box
Presentation
Stand-alone one universe DMX controller ready to use. Programmable with
Nicolaudie ESA2 software. Supplied with USB cable. Can be completed with
SENSA DMX G2 RDM SPLITTER 4CH.
Technical datasheet available on
The IP66 box must have the cover closed with supplied screws, cable glands
tightened, and empty cable glands equipped with shutters.
When removing the cable, the nut must be slightly unscrewed and left in place.
The system needs to be powered up constantly due to potential risk of the internal
clock delay.
WARNING:
DO NOT PERMANENTLY REMOVE THE NUT OR THE RUBBER OF
•
CABLE GLANDS.
THE PRODUCT MUST BE INSTALLED IN A VERTICAL OR HORIZONTAL
•
POSITION WITH THE COVER / LABEL UPWARDS OR VERTICALLY. OTHER
POSITIONS ARE NOT PERMITTED.
Pos.
1
2 SENSA DMX G2 POWER SUPPLY (Article number 96222782)
3
4 * SENSA DMX G2 RDM SPLITTER 4CH (Article number 96222781)
5 DMX output(s) cable glands – acceptable cable diameter : 5-10mm
6 DMX THRU output cable gland – acceptable cable diameter : 5-10mm
7 DMX input cable gland – acceptable cable diameter : 5-10mm
8 Mains input cable glands – acceptable cable diameter : 8-13mm
Value
110 / 230 V AC – 50 / 60 Hz
< 15 W
1 output (if no use of splitter option)
4 outputs (with use of splitter option)
Screw connectors for cable 2,5mm² maxi
255 x 205 x 100 mm (with cable glands)
1,17 kg
0 to +40°C
Thorn Lighting
Art. No.
www.thornlighting.com
Description
Ground screw terminal
SENSA DMX G2 CONTROLLER
96222779
*to order apart
