HDTV Antenna Smart Amplifie

MODEL: LT-3278

Thank you for your purchase of this HDTV Antenna Smart Amplifier. Before your

installation, please read this manual carefully and keep this manual for further information.

WARNING: RISK OF FIRE AND SHOCK

USE ONLY power inserter and power supply in dry location.

These are for INDOOR use only.

Feature:

This HDTV Antenna Smart Amplifier with build-in super low noise amplifier and signal

finder function is specially designed for terrestrial digital HDTV broadcast reception. It

improves antenna sensitivity by amplifying weak signals and helps overcome cable and

splitter loss. This amplifier can be mast-mounted or wall-mounted outdoors or even used

indoors.

Please check the content before your installation.

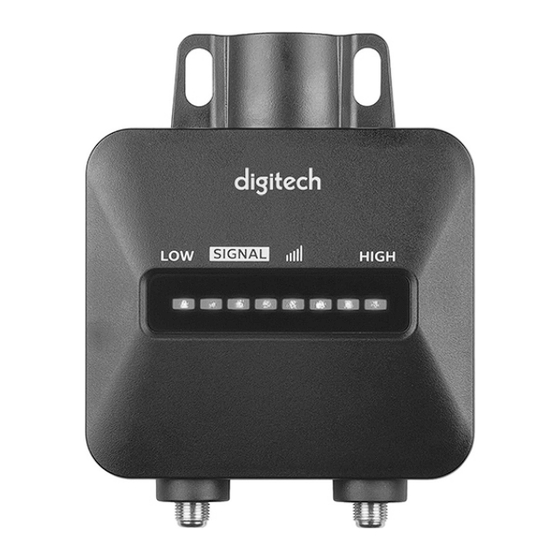

1. Main unit

IMPORTANT SAFTEY INSTRUCTIONS

PACKAGE CONTENT

2. Power Supply

3. Power Inserter

4. Mast Mount Hardware

5. Power Box

Rubber boot x 2

U type screws x 1,

Butterfly type x 2

Zip tie x 2

Need help?

Do you have a question about the LT-3278 and is the answer not in the manual?

Page 1 HDTV Antenna Smart Amplifie MODEL: LT-3278 Thank you for your purchase of this HDTV Antenna Smart Amplifier. Before your installation, please read this manual carefully and keep this manual for further information. IMPORTANT SAFTEY INSTRUCTIONS WARNING: RISK OF FIRE AND SHOCK USE ONLY power inserter and power supply in dry location.
Page 2 INSTALLATION In order to protect the amplifier and antenna, please check that the 2 rubber boots are needed for installation (for better waterproof). How to hook the cable and the rubber boot, please follow the steps If you do the cable and RF connector by yourself, please follow the step 1.
Page 3 ◎Pole Mounted application: .Take a wooden pole or metallic pole .Take the mounting kits .Hooks U type screws on the pole. Fixed 2 butterfly type washers and fixed them. .Fix the main unit 3.Connect a coax cable (not provided) from the OUTPUT on the amplifier to the ANTENNA input of the power inserter.
Page 4 TO TV TO TV Use With Splitter NTS(not to scale) 9. SCAN FOR CHANNELS ON YOUR HDTV. This step is very important. Your HDTV will NOT receive signals from your antenna without completing this step. See your TV’s menu for this process. You can also refer to the TV instruction manual for detail instructions.
