Summary of Contents for DigiTech AC-1593

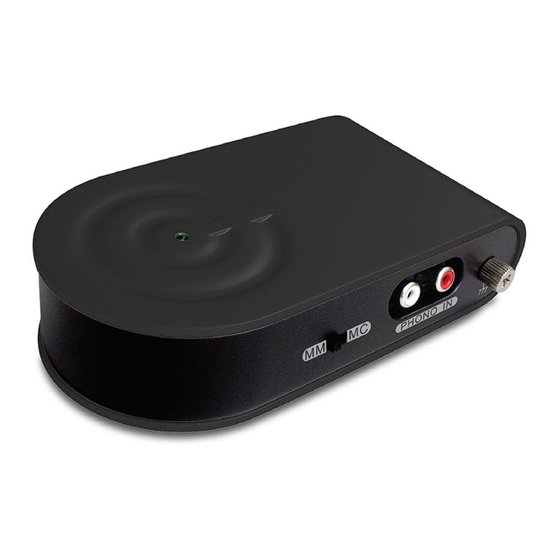

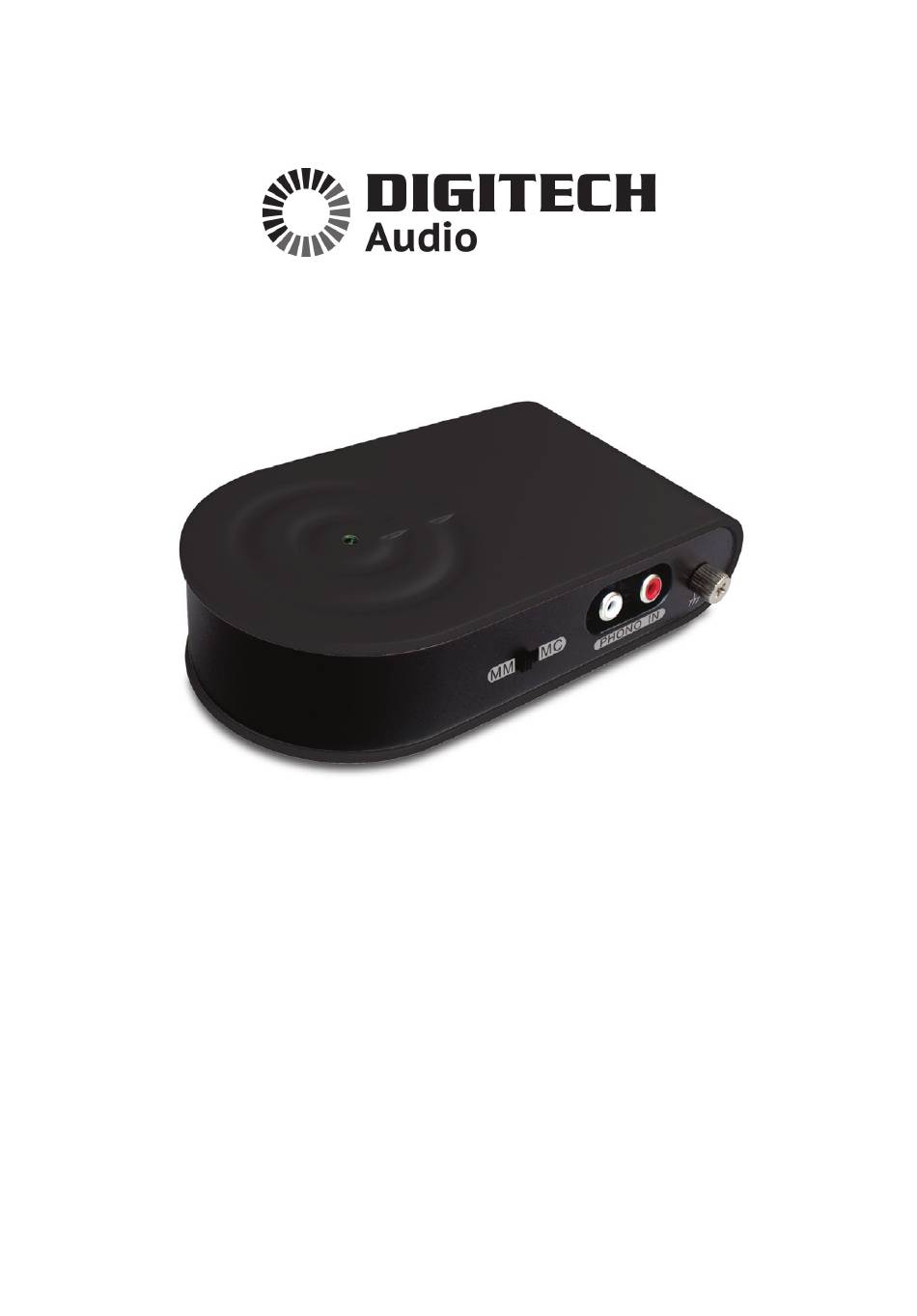

- Page 1 USB Recording Phonograph Amplifier AC-1593...
-
Page 2: System Requirements
INCLUDED • USB Pre-Amp Main Unit • USB A to Mini 5 Cable • 3.5mm to 3.5mm Audio Cable (Optional) FEATURES • RIAA pre-amplifier circuit for PHONO IN • Line in / Pre-Amp out switch • MM/MC Selection for different phonograph cartridge •... - Page 3 APPLICATION Convert your analogue music from a phonographic device into digital format. Follow the directions below to record music from your phonograph device. A) Connect an audio cable (optional) with a phonograph turntable player & the AC1593 USB preamplifier. B) To prevent any noise or humming that can be caused by mismatching the turntable and USB preamplifier.
- Page 4 PHONO PREAMPLIFIER (STAND ALONE OR OPERATED WITH PC) Using such a A) Connect audio cable R,L to R,L (optional) to turntable player and USB Pre-Amp. or n B) To prevent any noise or humming that is caused by mismatching the belo turntable and USB preamplifier.
- Page 5 LINE-IN GRABBING Using this USB preamplifier to record a Line in signal from audio devices such as a CD player. A) Connect an audio cable (R L to 3.5mm: optional) to your CD player and the AC1593 USB preamplifier as per the illustration below. B) Take the USB cable (USB A to mini 5 cable: optional).
-
Page 6: Troubleshooting
TROUBLE-SHOOTING 1) If the computer does not recognize the USB preamplifier A) Please make sure the connection is correct. B) Please re-connect the USB preamplifier to your USB port, and then check the auto-detection function. (When the unit is detected, the LED should be lighted on) 2) What is the minimum requirement of PC? A computer with USB port and with 500mA powering capacity is enough.
