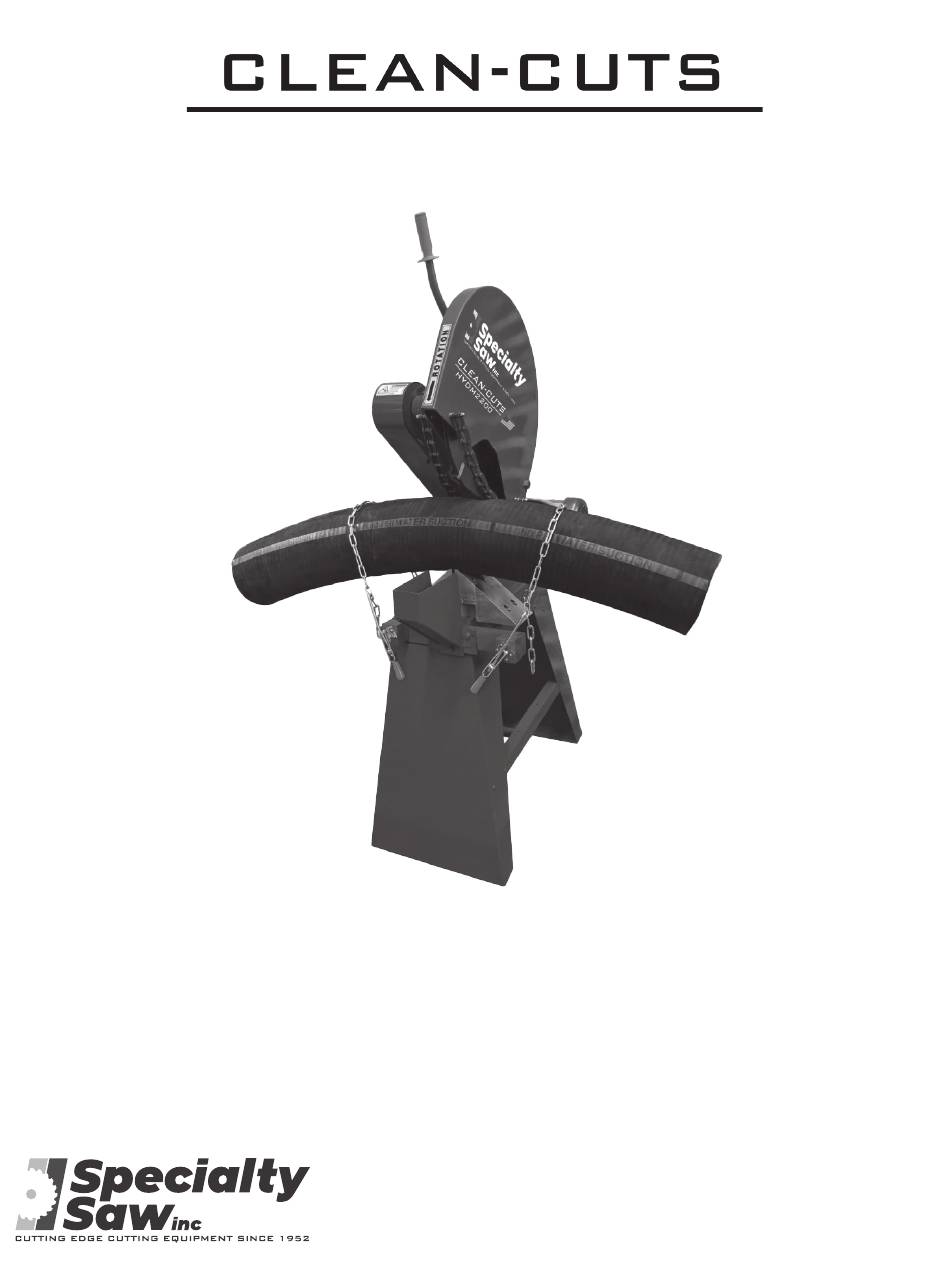

- Page 1 SAWS HYDRAULIC HOSE INSTRUCTION MANUAL HYDM2200-220V3 V071124...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL Clean-Cuts HYDM2200-220V3 Hydraulic Hose Saw Table of Contents Introduction ......3 Old Method ......3 New Clean Cuts Method..3 Operation ......4 Operation Procedure..... 4 Maintenance......4 Changing the Blade....5 Benefits ......... 7 Hose Cutting Blades .....7 CAUTION Use extreme caution. -
Page 3: Introduction

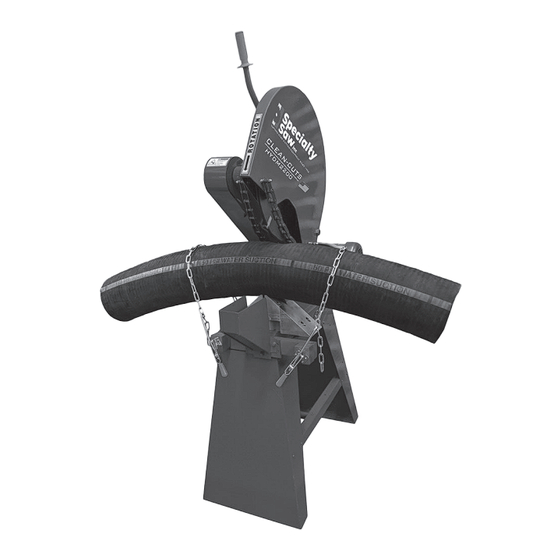

INTRODUCTION The Clean-Cuts hydraulic hose cutting system is a break through technology using a toothed blade, cutting with the backs of each tooth, so the blade does not take a kerf. The saw bends the hose into the blade, spreading the cut edges to avoid burning and smoking. Old Method The normal sawing method of lowering an abrasive saw blade onto the hose causes the hose to compress and deform. -
Page 4: Operation
When installing the saw, anchor the saw to the floor using the anchor bolts that were sent with the saw. You can find instructions on how to install these anchor bolts on the Specialty Saw website at: www.specialtysaw.com Operating Procedure 1. -
Page 5: Changing The Blade
CHANGING THE BLADE Blades have very sharp edges, even worn blades! ALWAYS WEAR GLOVES WHEN HANDLING BLADES! 1. Wear gloves and eye protection. 2. Disconnect the saw from the power source. 3. Push the blade shroud back to uncover the blade. 4. -
Page 6: Benefits
Benefits Cleaner Cuts | Safer Cuts | Less Smoke MODEL MOTOR BLADE CUTTING CAPACITY one 22” OD x .160 10 HP, 220 VAC, 3 Phase, Up to 8” OD Industrial Hose HYDM2200-220V3 THK X 40 mm arbor 60 Cycle, 2,250 RPM Hose Cutting Blade R O TATIO N Micro-Slotted... - Page 7 Specialty Saw, Inc. 30 Wolcott Road Simsbury, CT 06070 USA 1-800-225-0772 Voice: (860) 658-4419 | Fax: (860) 651-5358 | Email: info@specialtysaw.com | www.specialtysaw.com ©Specialty Saw, Inc. 2024 V071124...
