OPERATING INSTRUCTIONS
WARNING
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil
on it (including cooking oils).
Items containing foam, rubber, or plastic must be
dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in
death or fire.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not dry anything that has ever had anything
flammable on it (even after washing).
Failure to follow these instructions can result in
death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS, located
in your appliance's Owner's Manual, before operating this appliance.
Button Descriptions
1. POWER/CANCEL
Touch to turn the dryer on and off. Touch to stop/cancel a cycle at
any time.
2. START/PAUSE
Touch and hold until LED counts down "3-2-1" and the dryer starts;
then let go to start a cycle, or touch once while a cycle is in process
to pause it.
3. MODIFIERS
Use to select available modifiers for your dryer. Not all cycles and
options are available on all models. See the online "Cycle Guide" for
details.
Temp
When using T imed Dry/Quick Cycle, you may select a dry
temperature based on the type of load you are drying. Use the
warmest setting that is acceptable for the garments in the load.
Follow garment label instructions.
NOTE: Automatic Cycles will give you up to 4 temperatures to adjust,
depending on the selections that have been made.
Drying Levels
Y ou may adjust the Dryness on Automatic Cycles (except for the
Sanitize cycle), if desired.
NOTE: Dryness is for use with Automatic Cycles only.
More Time/Less Time
T ouch More T ime or Less T ime with T imed Dry/Quick Dry Cycles to
increase or decrease the length of the cycle.
4. OPTIONS
Use to select available options for your dryer . Not all cycles and
options are available on all models.
Wrinkle Shield™ Option
If you will be unable to remove a load immediately , touch
Wrinkle Shield ™ to add up to 150 minutes of periodic tumbling to
help reduce wrinkling.
NOTE: If you open the dryer door prior to the end of the
Wrinkle Shield ™ option, the dryer will pause.
Cycle Signal
Use this to turn the signal indicating the end of a drying cycle to low ,
medium, high, or off. The volume you select here will also be applied
to the Damp Dry Signal.
NOTE: Y ou may also turn of f the tones that sound when a feature,
setting, or option is touched. T ouch and hold Cycle Signal for about
3 seconds to turn sounds to low , medium, high, or off.
Damp Dry Signal
T ouch to select the Damp Dry Signal on or off. When selected, a
series of beeps will sound when the load is damp, but not completely
dry . This will allow you to take clothes out of the load that do not need
to dry completely . The Damp Dry Signal is selected as a default for
the Bulky Items cycles, as a reminder to manually reposition bulky
l oads midway through the cycle. This option is not available for all
cycles. See the online "Cycle Guide" for details.
W11708005B

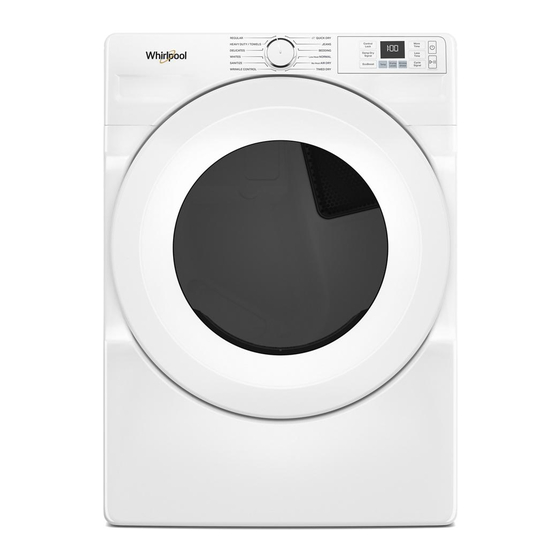

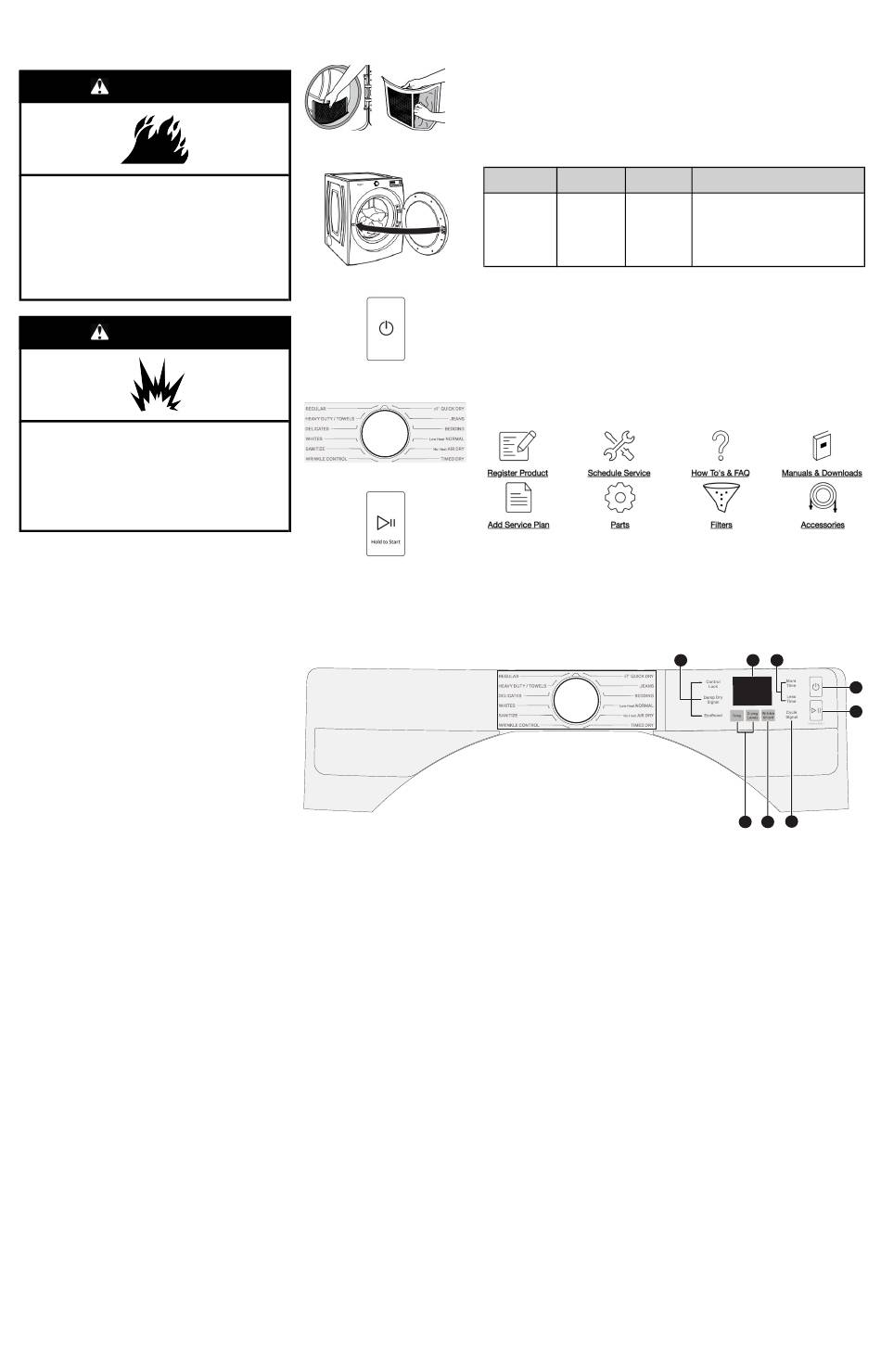

DRYER QUICK START GUIDE
Step 1. Clean Lint Screen
Step 2. Load Clothes; then Close
Door
Step 3. Power On/Cancel
Step 4. Select Cycle and
Settings
Step 5. Press Start/Pause
Not all features, cycles, and options are available on all models. Appearance may vary.
NOTE: The control panel features a sensitive surface that responds to a light touch of your finger. To ensure your selections are registered,
touch the control panel with your finger tip, not your fingernail. When selecting a setting or option, simply touch its name.
Control Lock
Use this option to lock the controls of the dryer and avoid an
accidental unintended change in cycle options or preferences
during a drying cycle. Touch and hold Control Lock or Damp Dry
Signal (depending on the model) for 3 seconds to lock or unlock the
controls of the dryer. During this time, the LED Display will count
down "3-2-1." Once the controls are locked, the LED Display will
display "Loc."
NOTE: The Control Lock function may be enabled when recovering
from a power failure. To unlock the control, touch and hold Control
Lock or Damp Dry Signal (depending on the model) for at least
3 seconds.
EcoBoost™ ™ Option
The EcoBoost™ option will default on only for the Regular/Normal
cycle and is only available on that cycle. This option allows you to
increase your energy savings by using a slightly lower heat level.
The EcoBoost™ option will increase drying times by approximately
40 minutes, which will be reflected on the LED display. If optimal
time is desired, touch ECOBOOST to turn off this option.
5. LED DISPLAY
When you select a cycle, its default settings will light up and the
estimated time remaining (for Automatic Cycles) will vary
depending on selections or actual time remaining for Timed Dry
cycles (for Manual Cycles) will be displayed.
CYCLE STATUS
The Cycle Status indicators show the progress of a cycle. Not all
indicators are available on all models.
Cycle Guide
This dryer has a unique user interface to help you select the best cycle you need for your load.
The controls layout guides you to the optimal cycle in two easy steps: First determine what
items are in the load that you are trying to dry. Use that to guide your selection. Then determine
how you want the dryer to dry them and select the appropriate selection. Modifiers are preset
for the items being dried, but can be changed if desired.
To get the most energy savings and enhanced fabric care from your dryer, use the Automatic
cycles. These cycles measure the drying air temperature and moisture levels to turn the dryer
off once the load reaches the selected dryness level. Dryer performance and results may vary
with service voltage less than 240.
Items to Dry:
Cycle:
Dryness
Level:
Baby clothes,
Regular
Normal
Blankets,
Bulky Items
Cotton
Whites
undergarments,
Colored
Sheets
napkins
Colors
NOTE: These clothes dryer's Government energy certifications were based on the Low Heat.
Normal Cycle, EcoBoost Defaulted ON, Highest Temperature and Normal Dryness Level. The
as-shipped defaults of Low Heat Normal, EcoBoost ON, Medium Temperature and Wrinkle
Shield Off were used. Cycles that are available for post-sale download may use more energy
than the Low Heat Normal cycle, upon which the energy use rating of this dryer is based upon.
Online Ordering Information
For detailed installation instruction and maintenance information, winter storage, and
transportation tips, please see the Owner's Manual included with your machine.
For information on any of the following items, a full cycle guide, warranty, detailed product
dimensions, or for complete instructions for use and installation, please visit
www.whirlpool.com/owners, or in Canada www.whirlpool.ca/owners. This may save you
the cost of a service call.
However, if you need to contact us, use the information listed below for the appropriate region.
United States:
1–866–698–2538
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022–2692
IMPORTANT: Retain this guide for future use.
Wet
The load is still wet and/or the cycle just started.
Cool Down
The dryer has finished drying with heat and is now tumbling the
load without heat to cool it down and reduce wrinkling.
Check Vent
The Check Vent indicator is a feature available for Automatic
Cycles only. This indicator will show the status of airflow through
the dryer and the dryer vent system for the dryer's life. During the
sensing phase at the beginning of the cycle, the Check Vent light
will come on if a blocked vent or low airflow issue is detected. This
light will stay on for the entire cycle. Should the Check Vent light
illuminate, refer to the online "Troubleshooting" section for potential
solutions to the issue.
The light will be cleared upon completion of the cycle, touching
Power, or opening the door. The Check Vent light will continue to
illuminate during the cycle unless the root cause is resolved.
NOTE: The dryer will continue to operate even while the indicator is
lit, but poor airflow can impact dry times and overall performance.
See "Check Your Vent System for Good Airflow" in the Owner's
Manual.
NOTE: If there are other error issues during a cycle, the Check Vent
indicator will not light up. See the online "Troubleshooting" section.
End
This will indicate that the selected cycle has ended and the load
may be removed from the dryer. If Wrinkle Shield™ Option has
been selected, the dryer may continue to tumble the load, even if
"End" is displayed.
Description:
Automatic Sensor cycle stops when
dryness level is reached.
See online "Cycle Guide" for details.
Canada:
1–800–807–6777
Whirlpool Brand Home Appliances
Customer eXperience Centre
200–6750 Century Ave.
Mississauga, Ontario L5N 0B7
4
5
3
3
4
4
1
2
