Alpha·Omega Photon Manual – Darkglass Electronics

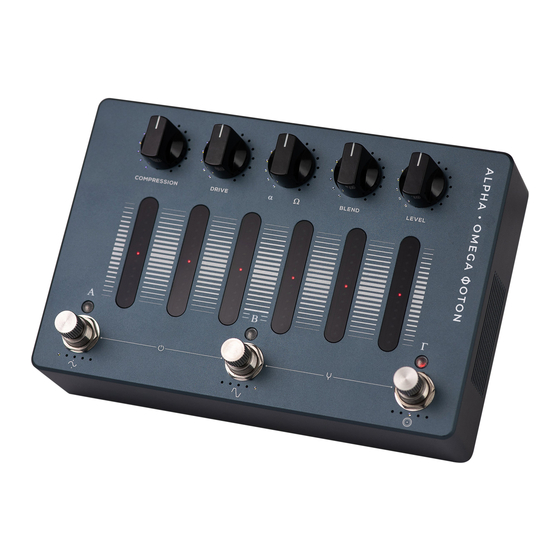

Alpha·Omega Photon Manual
Quick Start Guide
Connections
Signal Chain
Controls
Basic Operation
Bluetooth Pairing
USB Audio Interface
Darkglass IR Library
Technical Specifications
https://www.darkglass.com/manual-alpha-omega-photon/[2/15/2024 4:17:01 PM]
Programmable Series
Quick Start Guide
Connect your instrument into the 1/4" INPUT.
Connect a compatible power supply (9V center negative, min. 500 mA) to the
power connector.
Connect at least one of the following:
Headphones into the headphone jack
USB-C cable between the USB connector and your computer*
Instrument cable between one of the balanced 1/4" outputs and your
amplifier's input
XLR cable between DIRECT OUTPUT and your mixing desk or audio
interface
The Alpha·Omega Photon is pre-programmed with three presets, A, B, and C
that are selectable via the dedicated footswitches. Press and hold one of the
footswitches for two seconds to save your changes into a preset. Three
additional presets can also be accessed via MIDI or the Darkglass Suite.
Adjust the level (and headphone volume, if applicable) to your liking and start
playing!
*Using the Alpha·Omega Photon as an audio interface may require some extra
steps depending on your operating system
Advertisement
Related Manuals for Darkglass Electronics Programmable Alpha-Omega Photon
Summary of Contents for Darkglass Electronics Programmable Alpha-Omega Photon
- Page 1 Alpha·Omega Photon Manual – Darkglass Electronics Alpha·Omega Photon Manual Programmable Series Quick Start Guide Quick Start Guide Connections Signal Chain Connect your instrument into the 1/4” INPUT. Controls Connect a compatible power supply (9V center negative, min. 500 mA) to the power connector.
-
Page 2: Signal Chain
Alpha·Omega Photon Manual – Darkglass Electronics Connections Input : This is the primary instrument input on the Alpha·Omega Photon. Connect your instrument or output from your pedal board to the 1/4” mono jack. Aux In : The stereo input of the Alpha·Omega Photon enables the playback of backing tracks while practicing or recording. - Page 3 Alpha·Omega Photon Manual – Darkglass Electronics Compressor : This control allows setting the input gain of the compressor that will translate into how much the signal is compressed while our intelligent make-up gain algorithm keeps the output of the compressor at usable levels. The compressor has 5 ratios available: 4:1, 8:1, 12:1, 20:1 and ALL IN.
- Page 4 Alpha·Omega Photon Manual – Darkglass Electronics for even further versatility. The familiar Growl and Bite boost functions are also available for adding more low end and/or high end sparkle. Cabinet Simulation : The Alpha·Omega Photon supports Impulse Response (IR) cabinet simulations and has 5 cabinet slots on board. The default IRs have been selected by the Darkglass Team.
- Page 5 Alpha·Omega Photon Manual – Darkglass Electronics Photon. The smart potentiometers allow for their positions to be stored in each preset, with the stored position indicated by the ring of LEDs surrounding each potentiometer. With this, you can get a glance at your signal chain settings when changing presets, regardless of the physical potentiometer setting.
-
Page 6: Basic Operation
Alpha·Omega Photon Manual – Darkglass Electronics Rotating A allows you to change the compressor ratio or bypass the compressor. Rotating B allows you to change the distortion mode or bypass the distortion. Rotating C allows you to change the active IR in the signal chain or bypass the IR. - Page 7 Alpha·Omega Photon Manual – Darkglass Electronics active editing session. Presets can also be saved, edited, shared, loaded, and managed in the Darkglass Suite. For instructional videos on editing and saving the presets, please visit https://www.darkglass. com/creations/microtubes-infinity / Tuner To enter the tuner, press B and C simultaneously.
-
Page 8: Bluetooth Pairing
Alpha·Omega Photon Manual – Darkglass Electronics Performance Lock To enter or exit the performance lock, press A and C simultaneously. In this mode, all LEDs will gently breathe on the Alpha·Omega Photon to indicate that it has been locked. This mode prevents any accidental parameter changes or edits to your presets. - Page 9 Alpha·Omega Photon Manual – Darkglass Electronics for more details regarding USB audio. USB Routing USB output (to Alpha·Omega Photon) · Output 1: Balanced left + Headphone left · Output 2: Balanced right + Headphone right · Output 3: Balanced left ·...
-
Page 10: Technical Specifications
Input impedance : 1 M Ω Output impedance : 220 Ω Current consumption : ~500mA Voltage : 9VDC (center negative) PRIVACY POLICYCAREERS DARKGLASS is a registered trademark in the U.S., number 4,616,801, owned by Darkglass Electronics Oy. Designed by Revolve Studio https://www.darkglass.com/manual-alpha-omega-photon/[2/15/2024 4:17:01 PM]...
