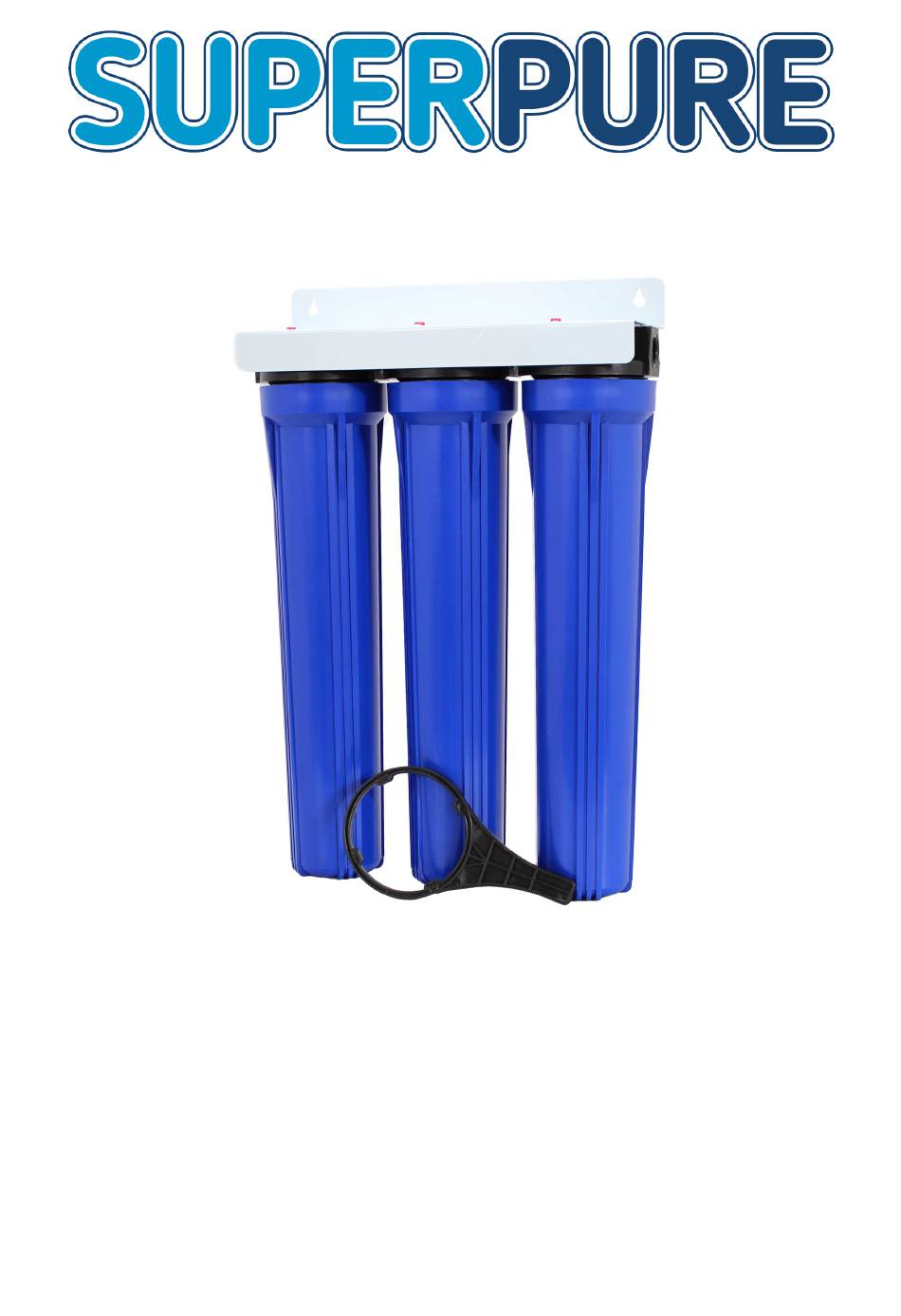

- Page 1 3-Stage Slimline Whole House Filter ____________________________________________ Installation and Maintenance Manual...
- Page 2 Introduction _____________________ We would like to thank you for choosing a SUPERPURE water filter system. This is our most popular point-of-entry cartridge-based filtration system. Your system has been manufactured to strict quality standards to ensure you receive the best product possible.
- Page 3 Package Contents _____________________ 1x 3-Stage Slimline Filtration System on Stand with filters installed 1x Housing Wrench 1x User Manual Technical Specifications _____________________ Source Water: Rain Water / Municipal tap water Filter Replacement Cycle: 3-6-months Max Purified Water Flow: 15L/Min Inlet Water Temperature: 5°C~38°C Inlet Water Pressure: 1 - 5 bar Operating environment temperature: 5~40°C...
- Page 4 Before You Start _____________________ • Read through all instructions before beginning installation and using this system. Take note of indicated flow directions and follow all steps exactly or risk damaging system/incorrect operation. • This system contains filters that need to be replaced at certain intervals. While replacement intervals will vary according to use, it is recommended to replace the filters every 3-6-months depending on usage and source water quality.
- Page 5 Caution _____________________ • Do not disassemble, open, or modify this unit. Tampering with the unit may cause failure or damage and will void warranty. • Do not place objects on top of the unit as this may cause damage to the unit and may cause leaking.
- Page 6 Tools Required _____________________ Thread Water Tape Pump Pliers...
- Page 7 Installation Steps _____________________ Step 1 Remove the system from the box and check that the system is undamaged and all parts are included. Step 2 Check filters one-by-one to ensure filters are properly installed and o-rings are correctly seated and housings tightened. Step 3 Connect system up for use using the 3/4”...
- Page 8 Step 4 Turn on water supply to check for leaks. Step 5 Press red pressure bleed buttons until air no longer comes our. This will release air and prime the system to reduce the risk of air locks. Step 6 Flush water through the system for 5 minutes before first use to remove any manufacturing residue or carbon dust...
- Page 9 The following are guidelines for scheduled filter changes, keep in mind that the frequency of filter changes may vary. If in doubt contact your local dealer or SUPERPURE technical support. • Change Filters every 3- 6 months If in doubt, replace filters in one of the following cases: •...
- Page 10 Filter Replacement _____________________ To replace your filter cartridges, follow the steps below: Step 1 Shut off the water supply to the filter system and open a tap or press one of the system’s red pressure relief buttons to release built-up pressure. Step 2 Use a filter wrench to unscrew the filter housings.
- Page 11 Trouble Shooting _____________________ Problem No water is coming out of the tap Cause There is either a valve closed or there is still air in the system Solution(s) (1) Ensure the input valve and main water lines are open (2) Ensure that there is sufficient inlet pressure (minimum 1 bar) (4) Wait a short while to ensure that any air is flushed out of the system Problem Water leaks from the red buttons on the system...
- Page 12 Technical Support _____________________ For any technical support queries please contact Definitive Brands Group for assistance: Email: support@definitivebrandsgroup.co.za Tel: +27 21 851 0133 Manufactured for: Definitive Brands Group Units 1-2, 5 Firgrove Way Firgrove Industrial Estate Macassar Western Cape South Africa Spare parts &...
